FRONT FORK (N7F/N7FA)

VN1500N7F VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA

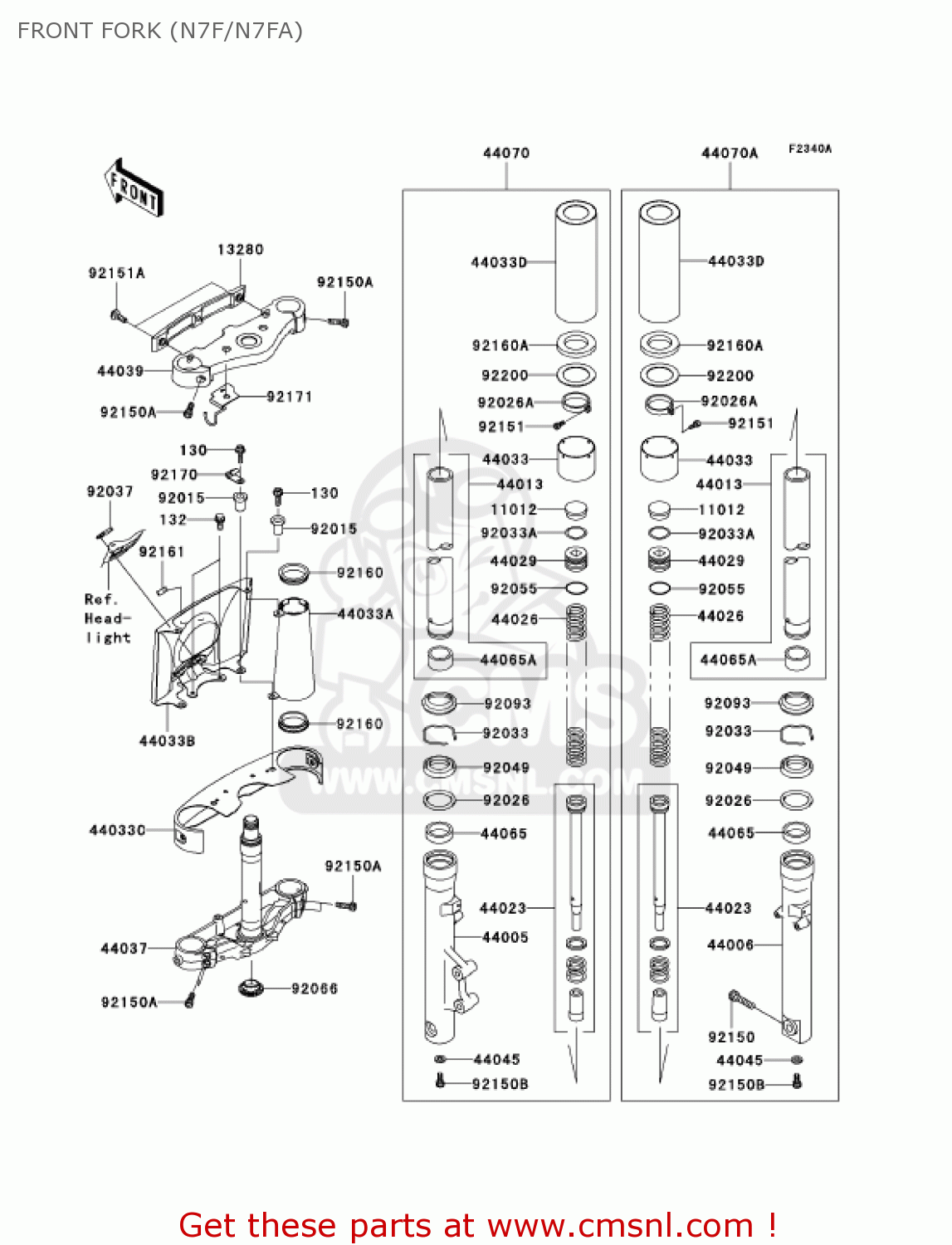

Front fork (n7f/n7fa) diagram VN1500N7F VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA

FRONT FORK (N7F/N7FA) VN1500N7F VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA
FRONT FORK (N7F/N7FA) VN1500N7F VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA
FRONT FORK (N7F/N7FA) VN1500N7F VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121618
ref: 11012
CAP,FORK TOP
110121618
€ 10.00
13280
132801161
ref: 13280
HOLDER,UPPER BRACKET
€ 102.00
44005
440051366
ref: 44005
PIPE-LEFT FORK OUTER
440051366
€ 385.50
44006
440061365
ref: 44006
PIPE-RIGHT FORK OUTER
440061365
€ 309.00
44013
440131462
ref: 44013
PIPE-FORK INNER
€ 253.50
44023
440231129
ref: 44023
CYLINDER-SET-FORK
€ 106.50
44026
440261717
ref: 44026
SPRING-FRONT FORK
€ 76.00
44029
440291125
ref: 44029
SEAT-FORK SPRING
€ 29.50
44033
440331223
ref: 44033
COVER-FORK
440331223
€ 12.00
44033A
440331229
ref: 44033A
COVER-FORK,UPP
440331229
€ 71.00
44033B
440331255
ref: 44033B
COVER-FORK,CNT
€ 80.00
44033C
440331257
ref: 44033C
COVER-FORK,LWR
440331257
€ 127.00
44033D
440331261
ref: 44033D
COVER-FORK
440331261
€ 100.00
44037
440371411
ref: 44037
HOLDER-FORK UNDER
€ 355.50
44039
440391305
ref: 44039
HOLDER-FORK UPPER
€ 280.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440651079
ref: 44065
BUSHING-FRONT FORK
440651079
€ 16.00
44065A
440651087
ref: 44065A
BUSHING-FRONT FORK,IN
440651087
€ 19.00
44070
440701829
ref: 44070
DAMPER-ASSY,FORK,LH
€ 1,035.00
44070A
440701830
ref: 44070A
DAMPER-ASSY,FORK,RH
€ 1,035.00
92015
920151757A
ref: 92015
NUT,5MM
920151757A
€ 5.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92026A
920261515
ref: 92026A
SPACER
920261515
€ 13.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
920331223
€ 4.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
920491363
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
920551363
€ 4.50
92066
920660032
ref: 92066
PLUG
920660032
€ 8.50
92093
920931268
ref: 92093
SEAL,FORK
920931268
€ 16.50
92150
921501029
ref: 92150
BOLT,SOCKET,10X40
921501029
€ 7.00
92150A
921501031
ref: 92150A
BOLT,SOCKET,8MM
921501031
€ 6.00
92150B
921501432
ref: 92150B
BOLT
921501432
€ 6.50
92151
921511356
ref: 92151
BOLT
921511356
€ 1.50
92151A
921511753
ref: 92151A
BOLT
921511753
€ 14.50
92160
921601892
ref: 92160
DAMPER
921601892
€ 2.50
92160A
921601927
ref: 92160A
DAMPER
921601927
€ 6.00
92161
921611177
ref: 92161
DAMPER
921611177
€ 2.50
92170
921701900
ref: 92170
CLAMP
€ 4.00
92171
921711353
ref: 92171
CLAMP,BRAKE HOSE
€ 16.50
130
130J0516
ref: 130
BOLT-FLANGED
€ 1.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
92200
922001417
ref: 92200
WASHER
€ 4.50
