FENDERS

VN1500N6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA

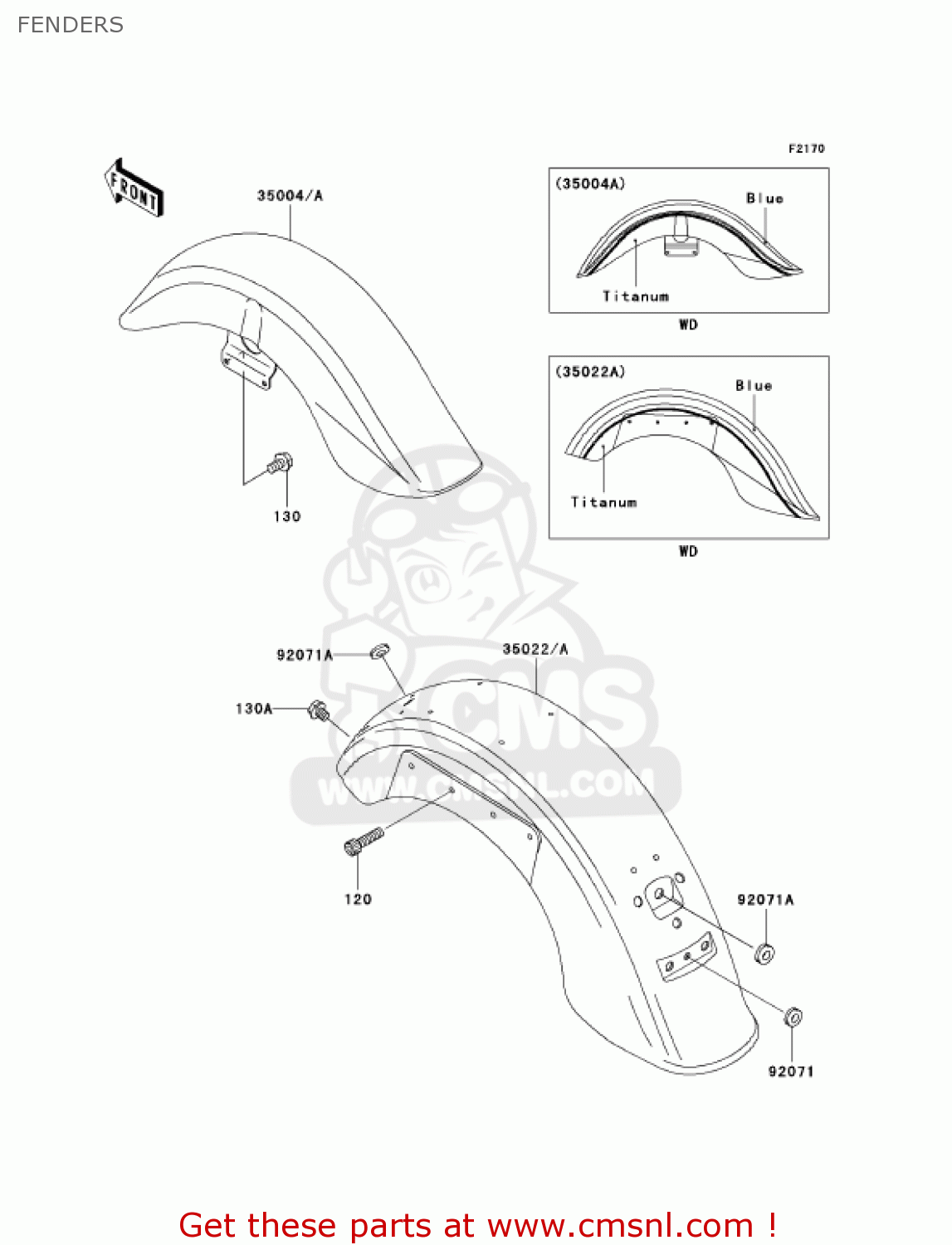

Fenders diagram VN1500N6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA

FENDERS VN1500N6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA

FENDERS VN1500N6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

35004

350041419H8
ref: 35004

FENDER-FRONT,EBONY

€ 287.00

35022

350221315H8
ref: 35022

FENDER-COMP-REAR,EBON

€ 467.00

120

120S0830
ref: 120

BOLT-SOCKET,8X30,BLAC

€ 3.00

130

130J0814
ref: 130

BOLT-FLANGED,8X14

€ 2.50

130A

130J0816
ref: 130A

BOLT-FLANGED,8X16,BLA

€ 0.50

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

92071099
ref: 92071A

GROMMET, REAR FENDER

€ 3.00
