GEAR CHANGE DRUM/SHIFT FORK(S)

VN1500L2 VULCAN 1500 NOMAD FI 2001 USA CALIFORNIA CANADA

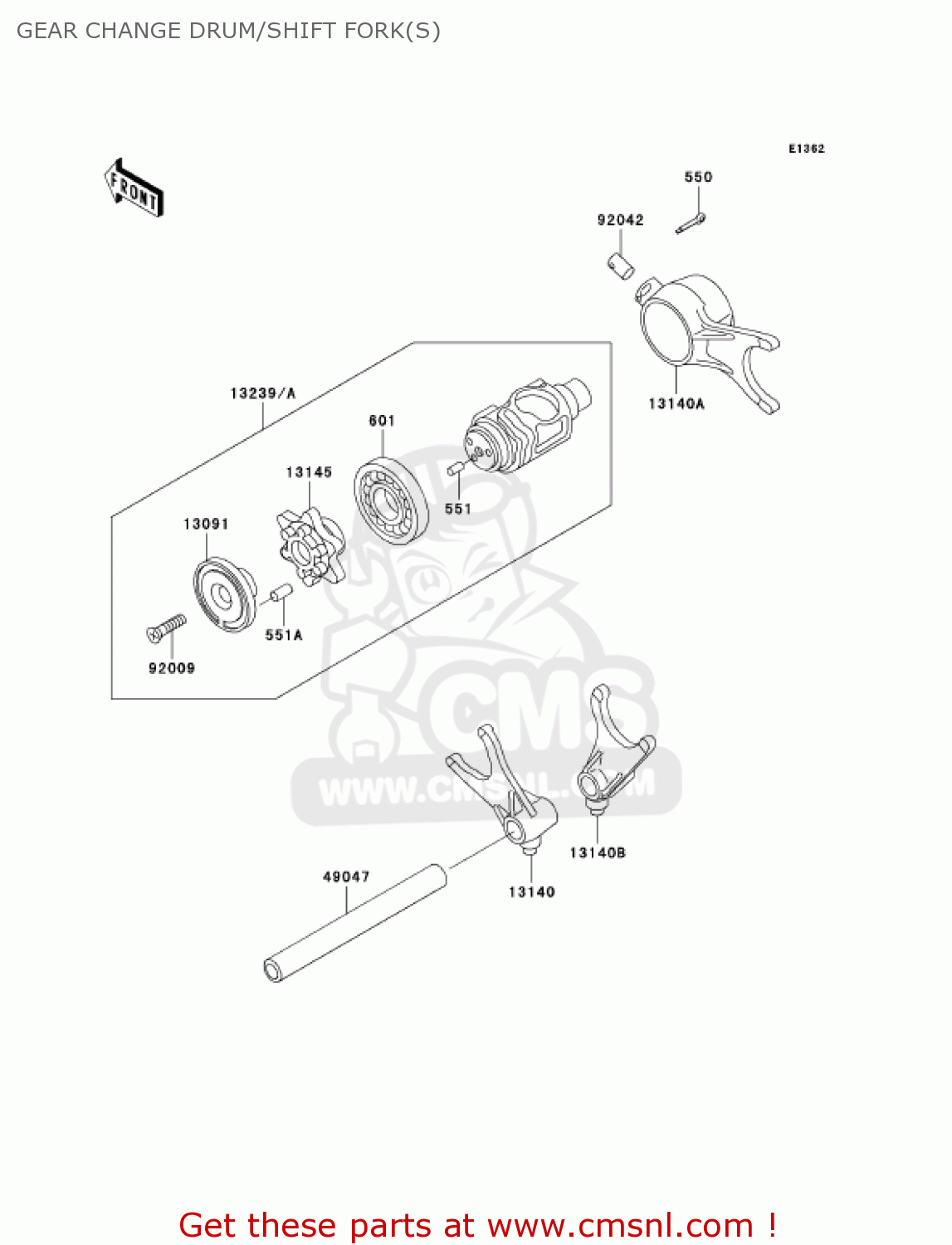

Gear change drum/shift fork(s) diagram VN1500L2 VULCAN 1500 NOMAD FI 2001 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

550

550D3020
ref: 550

PIN-COTTER,3.0X20

€ 1.50

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

551A

551A0412
ref: 551A

PIN-DOWEL

€ 2.00

601

601A6005
ref: 601

BEARING-BALL

€ 14.00

13091

130911104
ref: 13091

HOLDER,CHANGE DRUM PI

€ 15.00

13140

131401270
ref: 13140

FORK-SHIFT,OUTPUT TOP

€ 78.50

13140A

131401292
ref: 13140A

FORK-SHIFT,INPUT 3RD

€ 84.50

13140B

131401293
ref: 13140B

FORK-SHIFT,OUTPUT 4TH

€ 84.50

13145

131451089
ref: 13145

CAM-CHANGE DRUM

€ 36.00

13239

132391206
ref: 13239

DRUM-ASSY-CHANGE

€ 210.00

49047

490471095
ref: 49047

ROD-SHIFT

€ 17.00

92009

920091599
ref: 92009

SCREW

€ 2.50

92042

92042021
ref: 92042

PIN,DOWEL,8X18

€ 6.50

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
