TRANSMISSION

VN1500J1 VULCAN 1500 DRIFTER 1999 USA CALIFORNIA CANADA

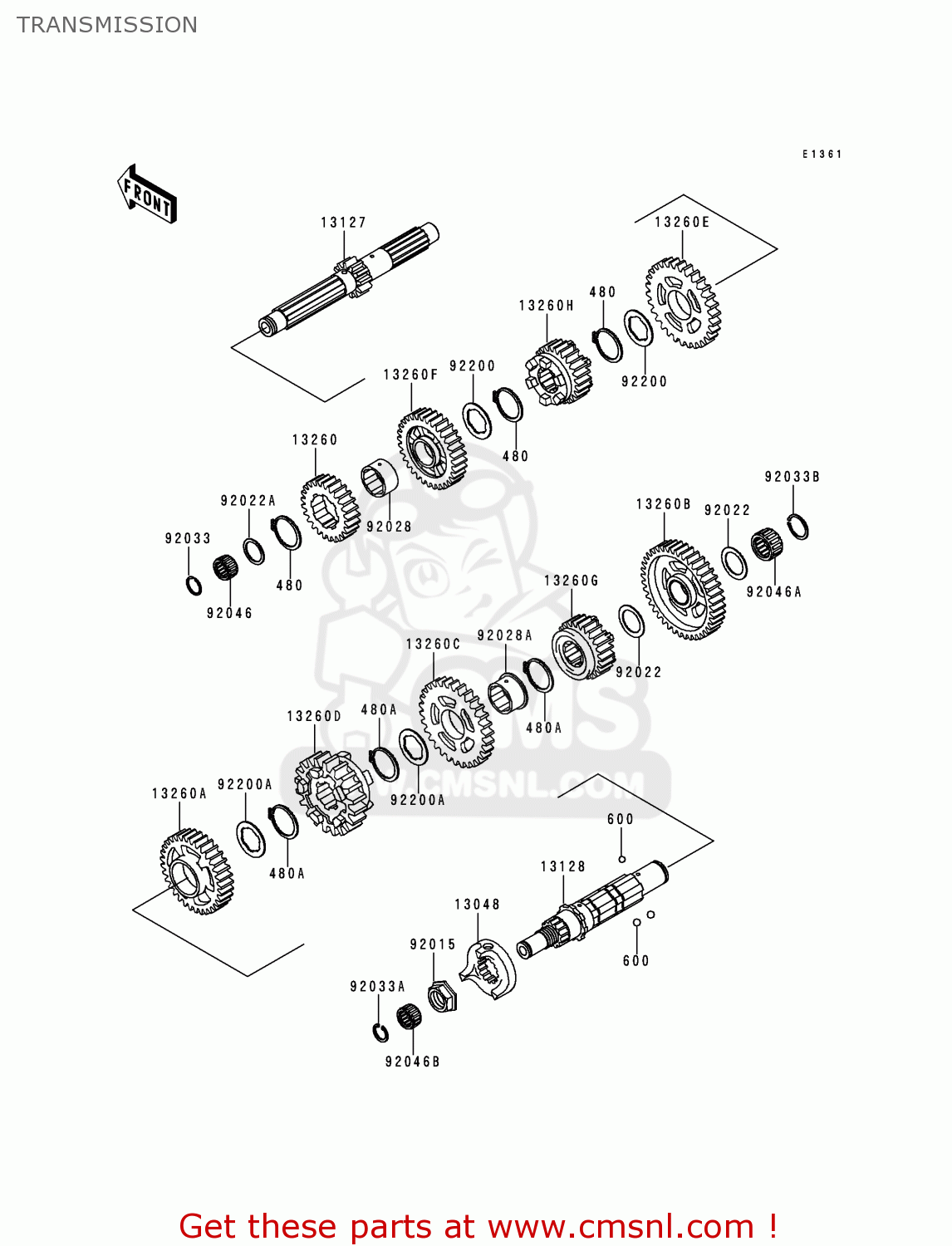

Transmission diagram VN1500J1 VULCAN 1500 DRIFTER 1999 USA CALIFORNIA CANADA

TRANSMISSION VN1500J1 VULCAN 1500 DRIFTER 1999 USA CALIFORNIA CANADA
TRANSMISSION VN1500J1 VULCAN 1500 DRIFTER 1999 USA CALIFORNIA CANADA
TRANSMISSION VN1500J1 VULCAN 1500 DRIFTER 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
480J2800
€ 3.50
480A
480J2900
ref: 480A
CIRCLIP
480J2900
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13048
130481086
ref: 13048
CAM-DAMPER
€ 78.50
13127
131271260
ref: 13127
SHAFT-TRANSMISSION IN
€ 232.50
13128
131281227
ref: 13128
SHAFT-TRANSMISSION OU
€ 308.50
13260
132601695
ref: 13260
GEAR,INPUT 2ND,22T
€ 140.00
13260A
132601700
ref: 13260A
GEAR,OUTPUT 2ND,35T
132601700
€ 127.50
13260B
132601728
ref: 13260B
GEAR,OUTPUT LOW,40T
€ 112.00
13260C
132601812
ref: 13260C
GEAR,OUTPUT 3RD,31T
€ 127.00
13260D
132601813
ref: 13260D
GEAR,OUTPUT TOP,25T
€ 112.00
13260E
132601814
ref: 13260E
GEAR,INPUT 4TH,29T
€ 127.00
13260F
132601815
ref: 13260F
GEAR,INPUT TOP,32T
€ 127.00
13260G
132601816
ref: 13260G
GEAR,OUTPUT 4TH,28T
€ 127.00
13260H
132601849
ref: 13260H
GEAR,INPUT 3RD,26T
132601849
€ 146.50
92015
920151610
ref: 92015
NUT,20MM
920151610
€ 9.00
92022
920221855
ref: 92022
WASHER,25.5X36X1.0
920221855
€ 6.50
92022A
92022212
ref: 92022A
WASHER-PLAIN,22MM
92022212
€ 6.50
92028
920281752
ref: 92028
BUSHING,INPUT TOP GEA
920281752
€ 26.00
92028A
920281831
ref: 92028A
BUSHING,OUTPUT 3RD GE
€ 34.00
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
92033032
ref: 92033A
CIRCLIP
92033032
€ 3.00
92033B
920331172
ref: 92033B
RING-SNAP,25MM
920331172
€ 3.50
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 19.50
92046A
920461259
ref: 92046A
BEARING-NEEDLE,TK2535
920461259
€ 23.50
92046B
920461260
ref: 92046B
BEARING-NEEDLE,FWF-16
920461260
€ 24.50
92200
922001240
ref: 92200
WASHER,2ND,3RD,4TH
922001240
€ 7.00
92200A
922001381
ref: 92200A
WASHER,30.3X40X1.5
922001381
€ 8.50
