LEFT ENGINE COVER(S)

VN1500J1 VN1500 DRIFTER 1999 EU UK FR NL AR FG GR IT NR SD ST

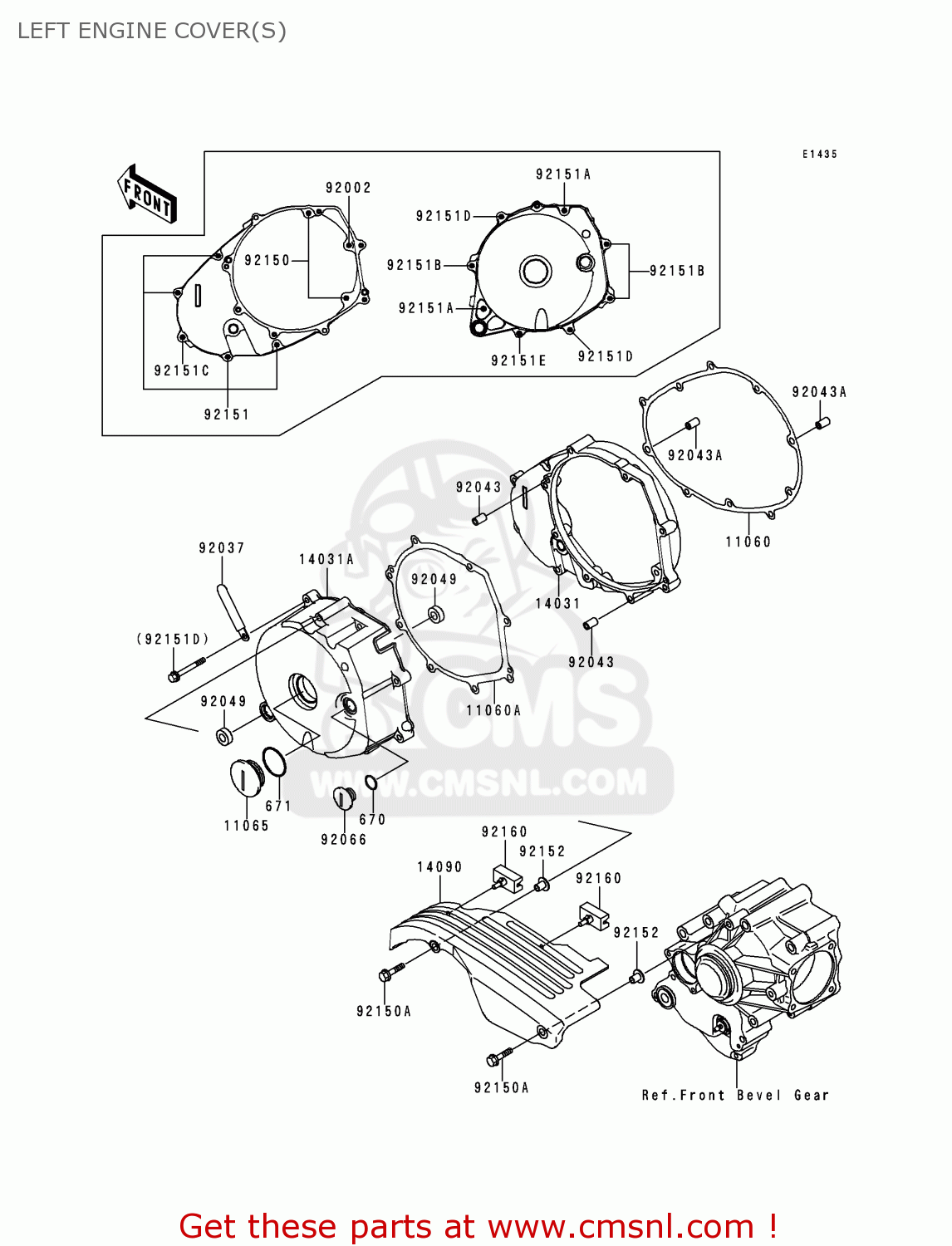

Left engine cover(s) diagram VN1500J1 VN1500 DRIFTER 1999 EU UK FR NL AR FG GR IT NR SD ST

LEFT ENGINE COVER(S) VN1500J1 VN1500 DRIFTER 1999 EU UK FR NL AR FG GR IT NR SD ST
LEFT ENGINE COVER(S) VN1500J1 VN1500 DRIFTER 1999 EU UK FR NL AR FG GR IT NR SD ST
LEFT ENGINE COVER(S) VN1500J1 VN1500 DRIFTER 1999 EU UK FR NL AR FG GR IT NR SD ST
prices are in EUR
ref
part #
description
quantity
670
670B2018
ref: 670
O RING,18MM
670B2018
€ 1.00
671
671B2540
ref: 671
O RING,40MM
671B2540
€ 4.00
11060
110601838
ref: 11060
GASKET,GENERATOR COVE (NAS)
€ 16.50
11060A
110601839
ref: 11060A
GASKET,GENERATOR COVE (NAS)
110601839
€ 16.00
11065
110651113
ref: 11065
CAP,GENERATOR
€ 16.50
14031
140311364
ref: 14031
COVER-GENERATOR,INNER
€ 103.50
14031A
140311365
ref: 14031A
COVER-GENERATOR,OUTER
€ 182.00
14090
140901987
ref: 14090
COVER
€ 75.00
92002
920021566
ref: 92002
BOLT,6X40
920021566
€ 3.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
920431262
€ 2.50
92043A
920431263
ref: 92043A
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
920491398
€ 4.00
92066
920661482
ref: 92066
PLUG
920661482
€ 6.50
92150
921501021
ref: 92150
BOLT,6X30
921501021
€ 2.50
92150A
921501829
ref: 92150A
BOLT,6X25
921501829
€ 2.50
92151
921511130
ref: 92151
BOLT,6X25
921511130
€ 2.00
92151A
921511131
ref: 92151A
BOLT,6X40
921511131
€ 3.00
92151B
921511134
ref: 92151B
BOLT,6X30
921511134
€ 1.50
92151C
921511135
ref: 92151C
BOLT,6X35
921511135
€ 2.50
92151D
921511235
ref: 92151D
BOLT,6X60
€ 2.00
92151E
921511252
ref: 92151E
BOLT,FLANGED-SMALL,6X
921511252
€ 1.00
92152
921521123
ref: 92152
COLLAR
€ 3.00
92160
921601977
ref: 92160
DAMPER
€ 2.50
