CHASSIS ELECTRICAL EQUIPMENT

VN1500H2 VN1500 CLASSIC TOURER 1999 AUSTRIA FG ST

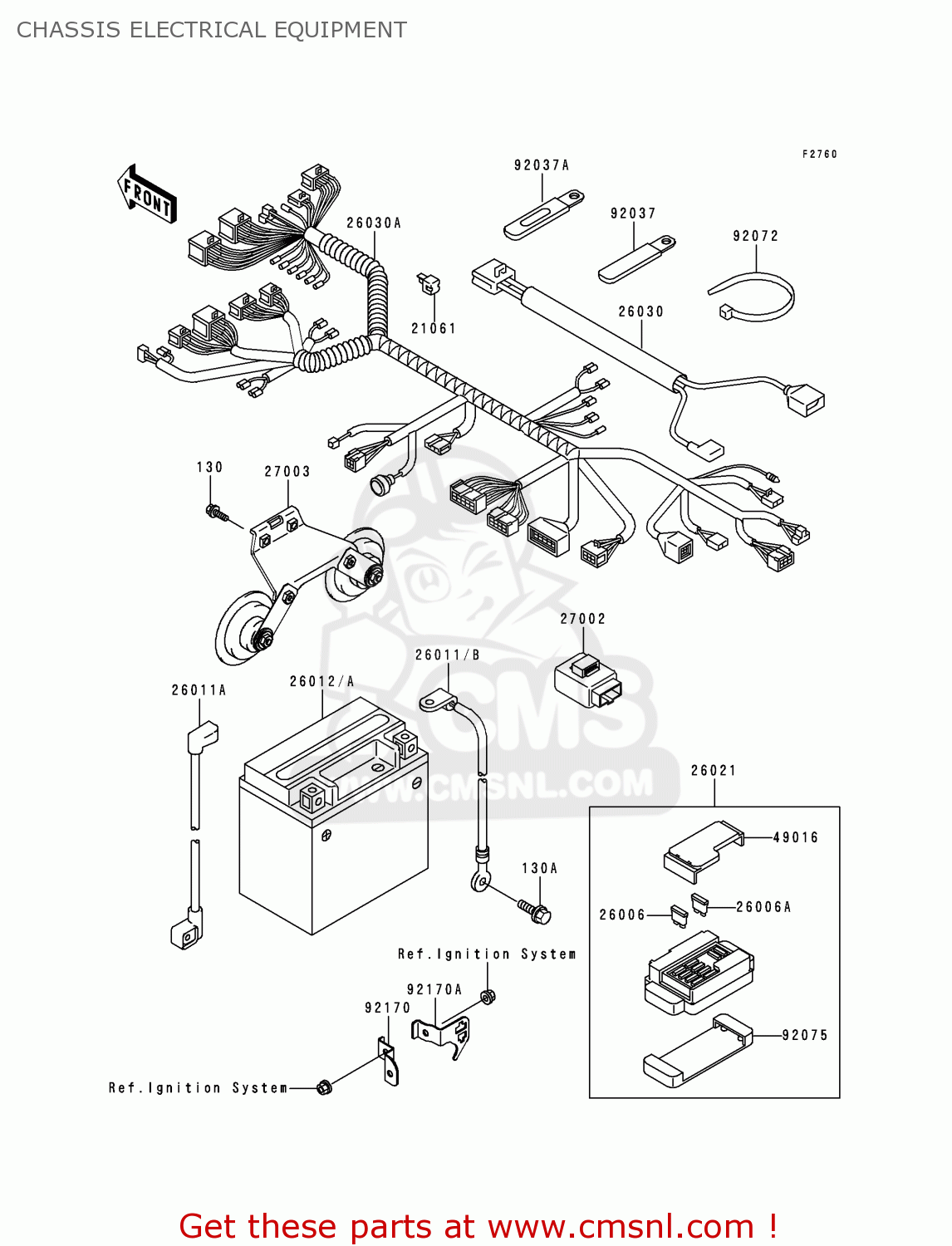

Chassis electrical equipment diagram VN1500H2 VN1500 CLASSIC TOURER 1999 AUSTRIA FG ST

CHASSIS ELECTRICAL EQUIPMENT VN1500H2 VN1500 CLASSIC TOURER 1999 AUSTRIA FG ST
CHASSIS ELECTRICAL EQUIPMENT VN1500H2 VN1500 CLASSIC TOURER 1999 AUSTRIA FG ST
CHASSIS ELECTRICAL EQUIPMENT VN1500H2 VN1500 CLASSIC TOURER 1999 AUSTRIA FG ST
prices are in EUR
ref
part #
description
quantity
130
130J0630
ref: 130
BOLT FLANGED,6X30,BLC
130J0630
€ 2.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
130V0610
€ 0.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011A
260111663
ref: 26011A
WIRE-LEAD,BATTERY(+)
260111663
€ 38.00
26011B
260111712
ref: 26011B
WIRE-LEAD,BATTERY(-)
260111712
€ 24.50
26012A
260121368
ref: 26012A
BATTERY,MF,FTH16-BS,1
€ 165.50
26021
260211090
ref: 26021
JUNCTION BOX
260211090
€ 140.50
26030
260301450
ref: 26030
HARNESS,SUB
260301450
€ 14.00
26030A
260301606
ref: 26030A
HARNESS,MAIN
€ 244.00
27002
270021110
ref: 27002
RELAY-ASSY,SIGNAL LAM
270021110
€ 95.50
27003
270031406
ref: 27003
HORN
270031406
€ 106.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92037A
920371780
ref: 92037A
CLAMP
920371780
€ 4.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92170
921701699
ref: 92170
CLAMP,IGNITION SWITCH
€ 4.50
92170A
921701700
ref: 92170A
CLAMP,RR BRAKE SWITCH
€ 4.00
