FRAME FITTINGS

VN1500G2 VN1500 CLASSIC TOURER 1999 EUROPE UK FR NL IT NR SD SP

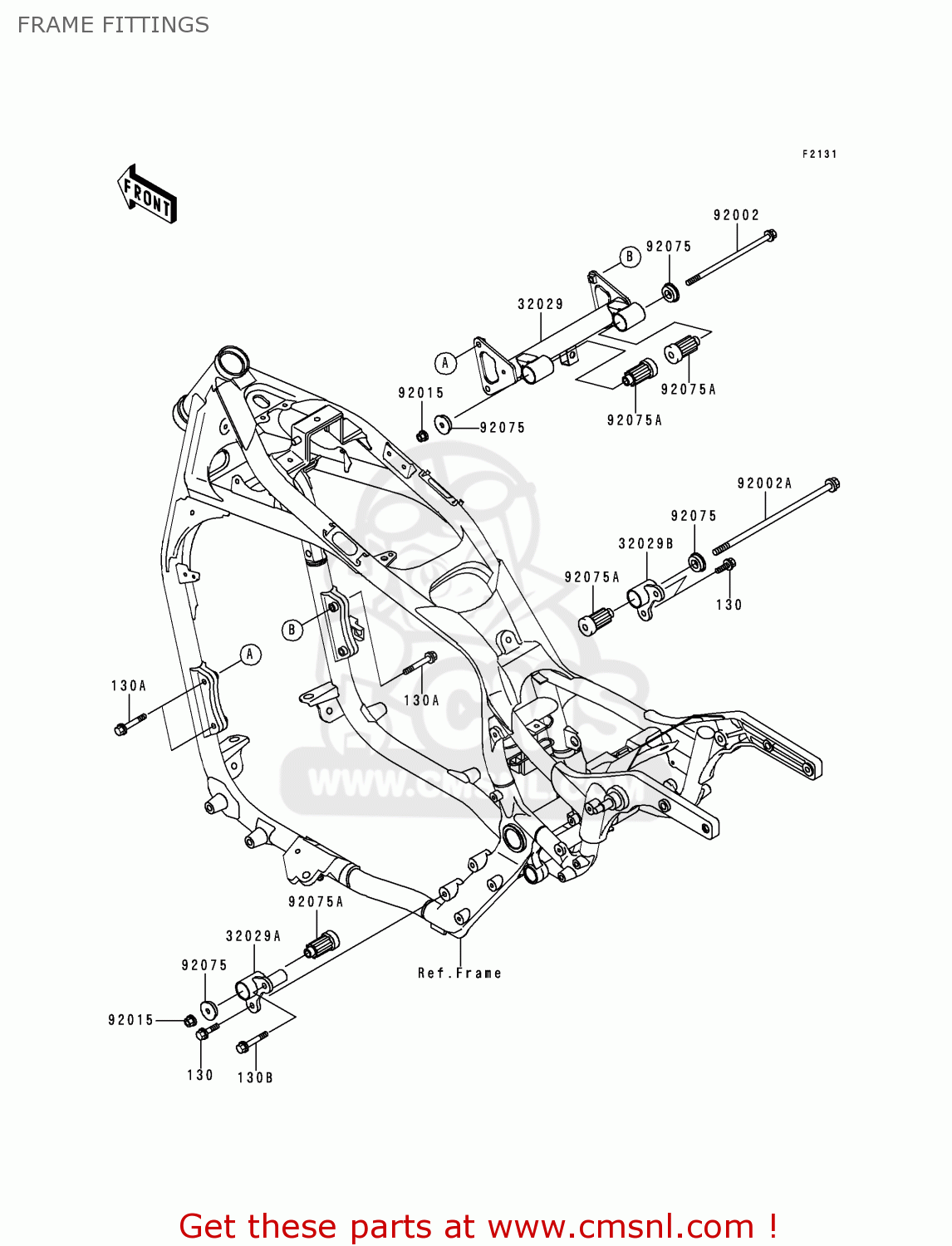

Frame fittings diagram VN1500G2 VN1500 CLASSIC TOURER 1999 EUROPE UK FR NL IT NR SD SP

prices are in EUR

ref

part #

description

quantity

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

130A

130J0840
ref: 130A

BOLT-FLANGED,8X40

€ 3.00

130B

130J0860
ref: 130B

BOLT-FLANGED

€ 2.50

32029

320291985
ref: 32029

BRACKET-ENGINE,FR

€ 142.50

32029A

320291986
ref: 32029A

BRACKET-ENGINE,RR,LH

€ 44.50

32029B

320291987
ref: 32029B

BRACKET-ENGINE,RR,RH

€ 35.00

92002

920021206
ref: 92002

BOLT,10X285

€ 16.50

92002A

920021540
ref: 92002A

BOLT,FLANGED,10X330

€ 16.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92075

920751738
ref: 92075

DAMPER,ENGINE BRACKET

€ 16.00

92075A

920751739
ref: 92075A

DAMPER,ENGINE MOUNT,M

€ 32.50
