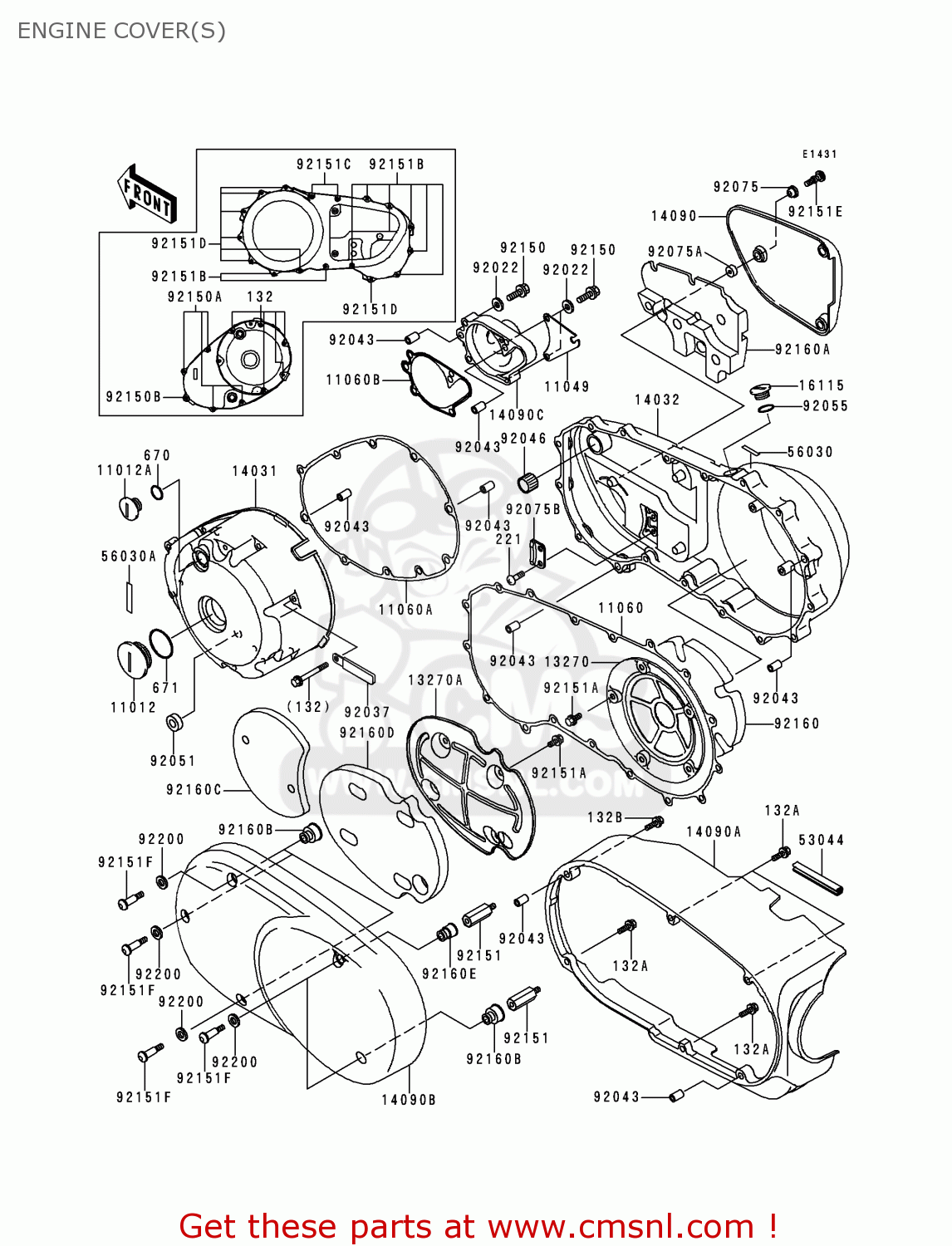

ENGINE COVER(S)

ref

part #

description

quantity

11012

110121362
ref: 11012

CAP

€ 6.00

11012A

110121363
ref: 11012A

CAP,TOP MARK

€ 4.00

11049

110491789
ref: 11049

BRACKET

€ 4.00

11060

110601121
ref: 11060

GASKET,CLUTCH COVER (NAS)

€ 27.50

11060A

110601122
ref: 11060A

GASKET,GENERATOR (NAS)

€ 18.50

11060B

110601124
ref: 11060B

GASKET,WATER PUMP COV (NAS)

€ 8.00

13270

132701592
ref: 13270

PLATE

€ 14.00

13270A

132701593
ref: 13270A

PLATE

€ 19.50

14031

140311352
ref: 14031

COVER-GENERATOR

€ 153.00

14032

140321435
ref: 14032

COVER-CLUTCH

€ 427.50

14090

140901678
ref: 14090

COVER,CLUTCH OUTER

€ 146.00

14090A

140901810
ref: 14090A

COVER,LH,INNER

€ 79.50

14090B

140901883
ref: 14090B

COVER,LH,OUTER

€ 312.00

14090C

140901932
ref: 14090C

COVER,WATER PUMP

€ 44.50

16115

161151063
ref: 16115

CAP-OIL FILLER

€ 19.00

53044

530441200
ref: 53044

TRIM-HEADLAMP COVER

€ 5.00

56030

560301184
ref: 56030

LABEL,OIL CAPACITY

€ 2.50

56030A

560301194
ref: 56030A

LABEL,CHANGE SHIFT

€ 2.50

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92037

920371993
ref: 92037

CLAMP

€ 3.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92046

920461163
ref: 92046

BEARING-NEEDLE,HK1212

€ 13.50

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92075

920751855
ref: 92075

DAMPER

€ 5.50

92075A

920751856
ref: 92075A

DAMPER

€ 6.00

92075B

920751905
ref: 92075B

DAMPER

€ 6.00

92150

921501021
ref: 92150

BOLT,6X30

€ 2.50

92150A

921501779
ref: 92150A

BOLT,6X25

€ 2.50

92150B

921501967
ref: 92150B

BOLT

€ 2.50

92151

921511062
ref: 92151

BOLT

€ 10.50

92151A

921511064
ref: 92151A

BOLT,6X10

€ 1.50

92151B

921511130
ref: 92151B

BOLT,6X25

€ 2.00

92151C

921511134
ref: 92151C

BOLT,6X30

€ 1.50

92151D

921511135
ref: 92151D

BOLT,6X35

€ 2.50

92151E

921511273
ref: 92151E

BOLT,SOCKET,6X22.5

€ 4.50

92151F

921511274
ref: 92151F

BOLT,L=31

€ 4.00

92160

921601716
ref: 92160

DAMPER

€ 18.00

92160A

921601717
ref: 92160A

DAMPER

€ 28.00

92160B

921601718
ref: 92160B

DAMPER

€ 4.50

132

132J0665
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132V0620
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

132B

132V0630
ref: 132B

BOLT-FLANGED-SMALL

€ 1.50

221

221B0612
ref: 221

SCREW-CNTSNK HD,6X12

€ 1.50

670

670B2018
ref: 670

O RING,18MM

€ 1.00

671

671B2540
ref: 671

O RING,40MM

€ 4.00

92160C

921601719
ref: 92160C

DAMPER

€ 14.50

92160D

921601720
ref: 92160D

DAMPER

€ 29.00

92160E

921601730
ref: 92160E

DAMPER

€ 5.00

92200

922001296
ref: 92200

WASHER

€ 2.00
