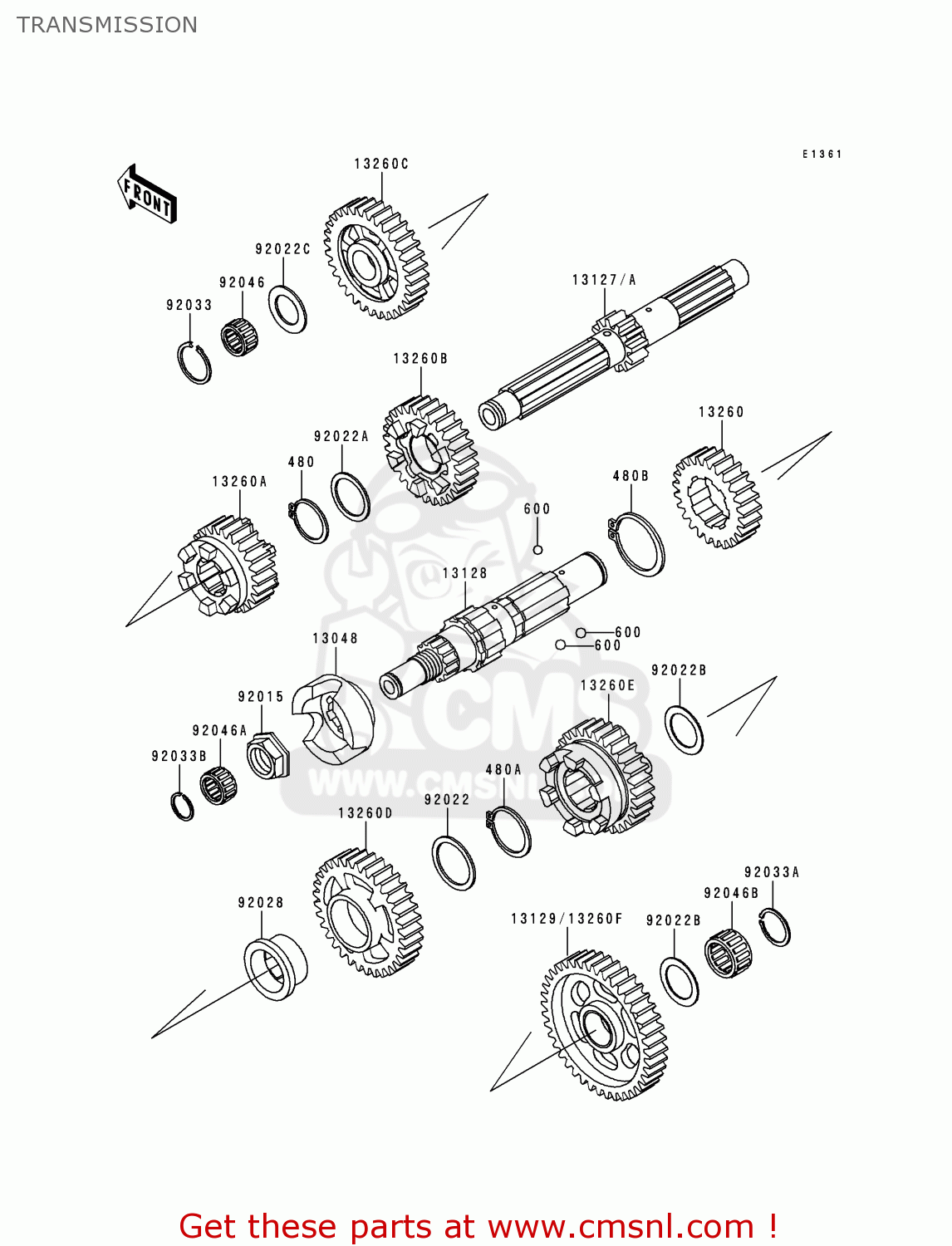

TRANSMISSION

ref

part #

description

quantity

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J3200
ref: 480A

CIRCLIP-TYPE-C,32MM

€ 1.00

480B

480J4000
ref: 480B

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13048

130481082
ref: 13048

CAM-DAMPER

€ 27.50

13127A

131271259
ref: 13127A

SHAFT-TRANSMISSION IN

€ 119.00

13128

131281144
ref: 13128

SHAFT-TRANSMISSION OU

€ 235.50

13260

132601584
ref: 13260

GEAR,OUTPUT 4TH,25T

€ 71.00

13260A

132601586
ref: 13260A

GEAR,INPUT 2ND,24T

€ 158.50

13260B

132601587
ref: 13260B

GEAR,INPUT 3RD,28T

€ 120.50

13260C

132601588
ref: 13260C

GEAR,INPUT 4TH,32T

€ 124.00

13260D

132601652
ref: 13260D

GEAR,OUTPUT 2ND,33T

€ 159.00

13260E

132601653
ref: 13260E

GEAR,OUTPUT 3RD,29T

€ 123.50

13260F

132601679
ref: 13260F

GEAR,OUTPUT LOW,39T

€ 112.00

92015

920151610
ref: 92015

NUT,20MM

€ 9.00

92022

920221693
ref: 92022

WASHER,32X40X1.6

€ 4.50

92022A

920221854
ref: 92022A

WASHER,INPUT,3RD,LH

€ 5.50

92022B

920221855
ref: 92022B

WASHER,25.5X36X1.0

€ 6.50

92022C

92022212
ref: 92022C

WASHER-PLAIN,22MM

€ 6.50

92028

920281478
ref: 92028

BUSHING,OUTPUT,2ND

€ 22.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331172
ref: 92033A

RING-SNAP,25MM

€ 3.50

92033B

920331208
ref: 92033B

RING-SNAP

€ 3.50

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92046A

920461154
ref: 92046A

BEARING-NEEDLE,K18242

€ 20.50

92046B

920461166
ref: 92046B

BEARING-NEEDLE,RS25/1

€ 18.50

all assemblies
