CHASSIS ELECTRICAL EQUIPMENT

VN1500C2 VN15 1995 EUROPE UK FR NL AR FG NR SD SP ST

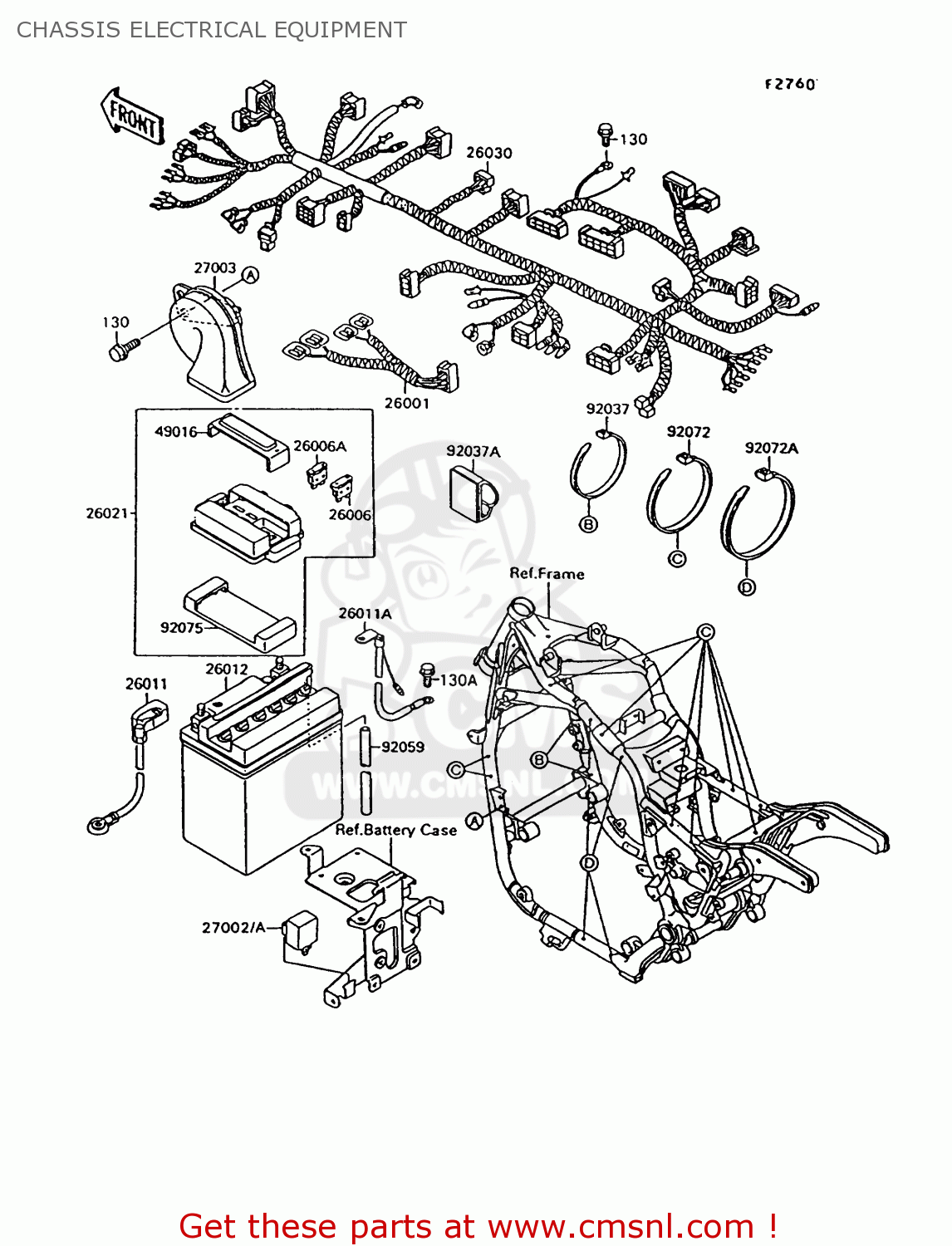

Chassis electrical equipment diagram VN1500C2 VN15 1995 EUROPE UK FR NL AR FG NR SD SP ST

CHASSIS ELECTRICAL EQUIPMENT VN1500C2 VN15 1995 EUROPE UK FR NL AR FG NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT VN1500C2 VN15 1995 EUROPE UK FR NL AR FG NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT VN1500C2 VN15 1995 EUROPE UK FR NL AR FG NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
130V0610
€ 0.50
26001
260011862
ref: 26001
HARNESS,IGNITION
€ 13.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111391
ref: 26011
WIRE-LEAD,BATTERY(+)
260111391
€ 21.00
26011A
260111392
ref: 26011A
WIRE-LEAD,BATTERY(-)
260111392
€ 21.00
26012
260121187
ref: 26012
BATTERY,12V 20AH,Y50-
€ 79.50
26021
260211090
ref: 26021
JUNCTION BOX
260211090
€ 140.50
26030
260301272
ref: 26030
HARNESS,MAIN
€ 249.50
27002
270021053
ref: 27002
AREUFRITNLNRSDSPSTUK
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27002A
270021060
ref: 27002A
FG
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27003
270031378
ref: 27003
HORN,DOUBLE
270031378
€ 76.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371817
ref: 92037
CLAMP,BAND,L=137
920371817
€ 8.50
92037A
920371954
ref: 92037A
CLAMP,WIRING HARNESS
€ 4.00
92059
920591840
ref: 92059
TUBE,5X8X570
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
