TAIL LAMP

VN1500B5 VN15SE 1991 EUROPE FR AR FG NR SD

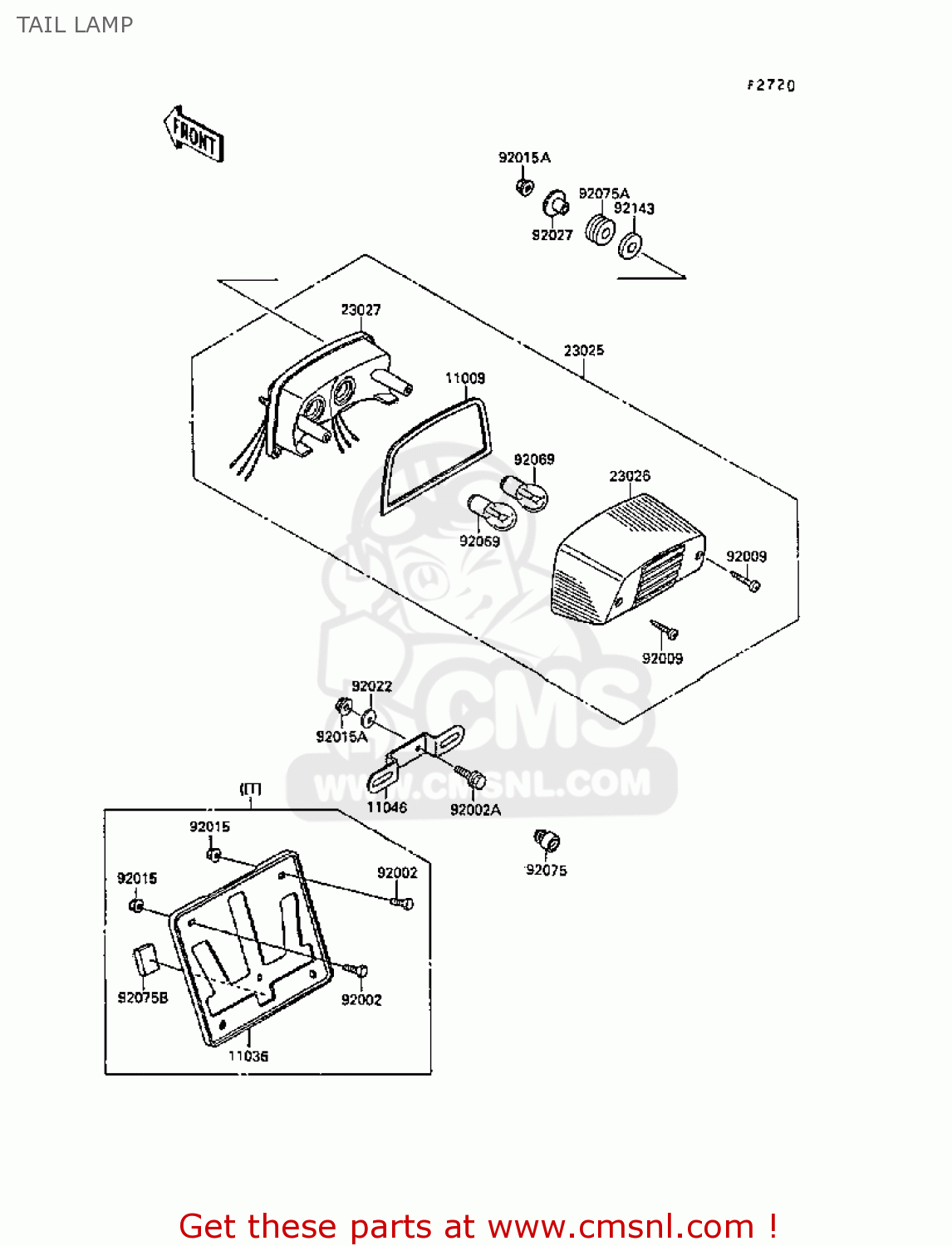

Tail lamp diagram VN1500B5 VN15SE 1991 EUROPE FR AR FG NR SD

prices are in EUR

ref

part #

description

quantity

11009

110091412
ref: 11009

GASKET,TAIL LAMP (NAS)

€ 9.00

11046

110461109
ref: 11046

BRACKET,LICENSE PLATE

€ 13.00

23025

230251181
ref: 23025

LAMP-TAIL

€ 123.50

23026

230261057
ref: 23026

LENS,TAIL LAMP

€ 38.00

23027

230271091
ref: 23027

BODY-COMP-TAIL LAMP

€ 123.50

92002A

920021260
ref: 92002A

BOLT,6X14

€ 0.50

92009

920091069
ref: 92009

SCREW,TAPPING,4X25

€ 2.50

92015A

920151367
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

92075035
ref: 92075

DAMPER

€ 3.00

92075A

920751690
ref: 92075A

DAMPER,10X24X12

€ 3.00

92143

921431238
ref: 92143

COLLAR,6.5X24X8

€ 4.50
