FENDER

VN1500B2 VN15SE 1988 EUROPE UK AR FG NR ST

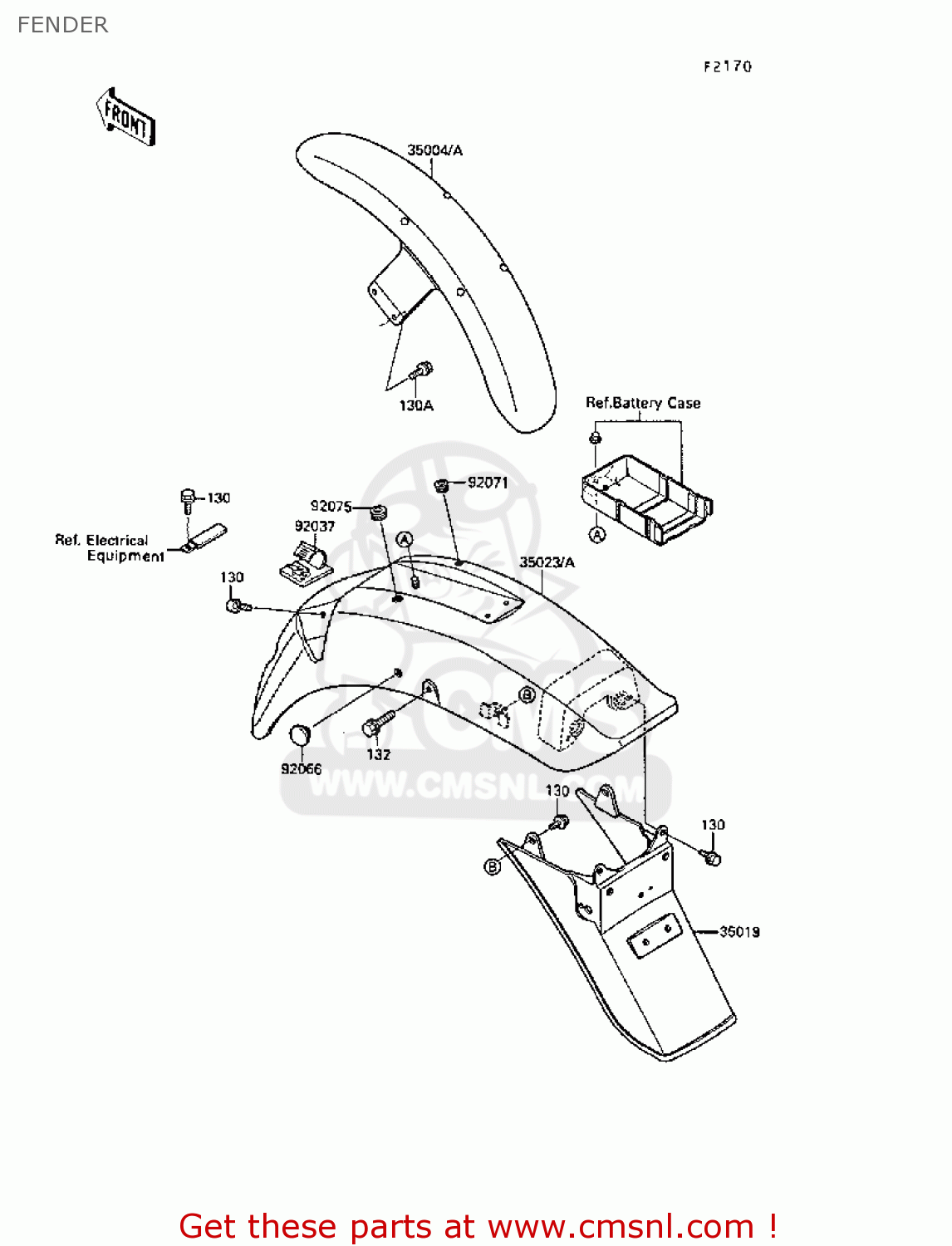

Fender diagram VN1500B2 VN15SE 1988 EUROPE UK AR FG NR ST

prices are in EUR

ref

part #

description

quantity

130

130C0612
ref: 130

BOLT-FLANGED,6X12

€ 1.50

130A

130D0814
ref: 130A

BOLT-FLANGED

€ 0.50

132

132E0840
ref: 132

BOLT-FLANGED-SMALL

€ 4.00

35004

350041206C6
ref: 35004
AREUNRSTUK

FENDER-FRONT,M.N.BLUE

€ 315.00

35004A

350041206L2
ref: 35004A

FENDER-FRONT,L.C.RED

€ 258.50

35019

350191229
ref: 35019

FLAP,REAR FENDER

€ 114.00

35023

350231226C6
ref: 35023
AREUNRSTUK

FENDER-REAR,M.N.BLUE

€ 449.50

35023A

350231226L2
ref: 35023A

FENDER-REAR,L.C.RED

€ 458.00

92037

920371816
ref: 92037

CLAMP,HARNESS

€ 5.00

92066

92074006
ref: 92066

PLUG,FENDER,RR,12X1

€ 4.00

92071

920711148
ref: 92071

GROMMET

€ 3.00

92075

92075294
ref: 92075

DAMPER RUBBER,HORN MT

€ 2.50

FENDER

all assemblies
