CARBURETOR PARTS
VN1500B1 VN15SE 1987 USA CALIFORNIA

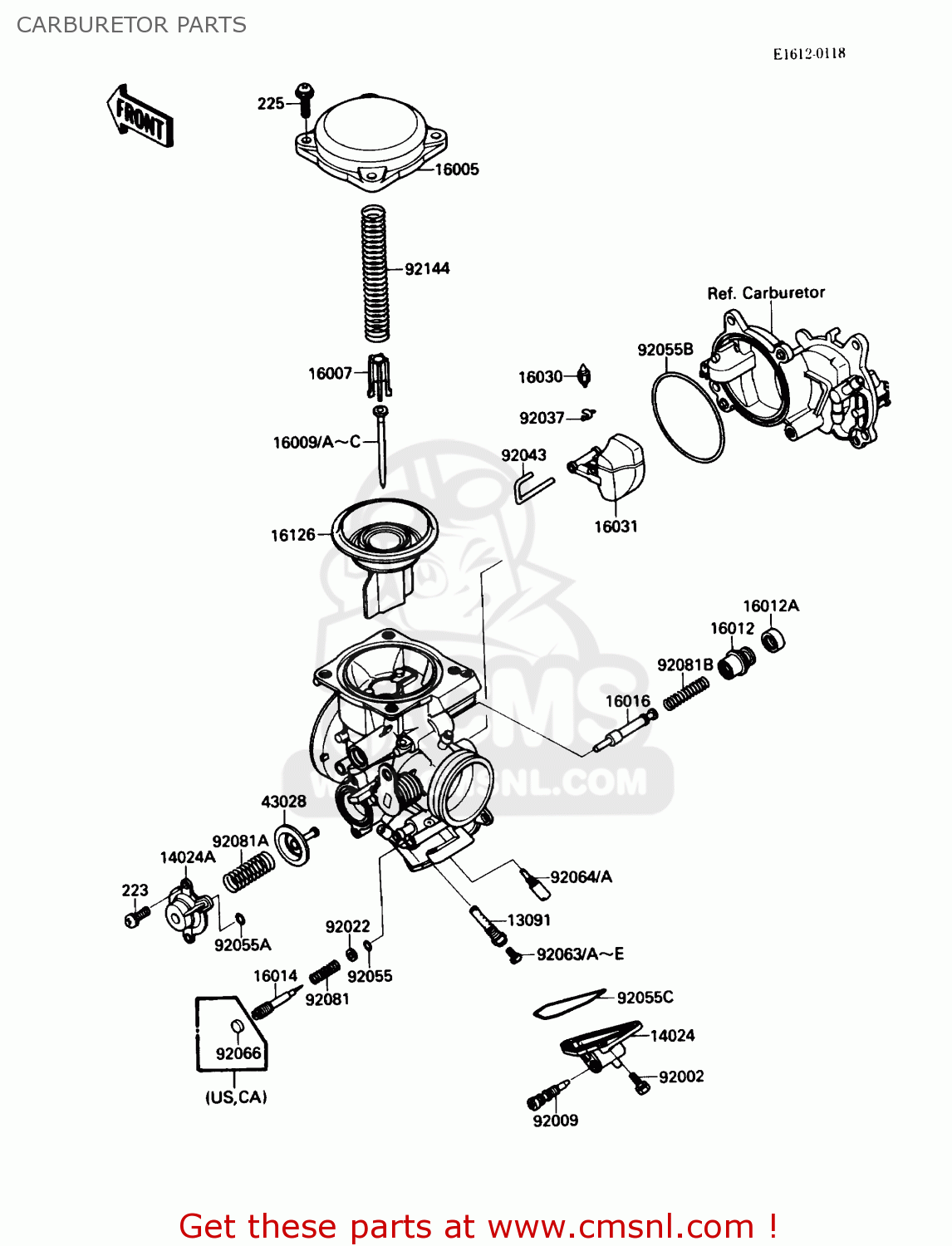

Carburetor parts diagram VN1500B1 VN15SE 1987 USA CALIFORNIA
CARBURETOR PARTS VN1500B1 VN15SE 1987 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
13091
130911513
ref: 13091
HOLDER,NEEDLE JET
€ 16.50
14024
140241608
ref: 14024
COVER,DRAIN
€ 78.50
14024A
140251903
ref: 14024A
COVER,AIR CUT VALVE
€ 43.00
16005
160051054
ref: 16005
TOP-CHAMBER,MIXING
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091369
ref: 16009
US
NEEDLE-JET,RR,N36Q
€ 19.00
16009A
160091370
ref: 16009A
US
NEEDLE-JET,FR,N36P
€ 19.00
16009B
160091371
ref: 16009B
CA
JET,NEEDLE,#N36S,REAR
€ 19.00
16009C
160091372
ref: 16009C
CA
JET,NEEDLE,#N36R,FRONT
€ 19.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161071
ref: 16016
PLUNGER
€ 35.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311066
ref: 16031
FLOAT
€ 37.50
16126
161261203
ref: 16126
VALVE,VACUUM
€ 219.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92002
920021761
ref: 92002
BOLT
€ 3.50
92009
920091434
ref: 92009
SCREW
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431285
ref: 92043
PIN,FLOAT
€ 12.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551245
ref: 92055A
RING-O
€ 3.50
92055B
920551291
ref: 92055B
RING-O
€ 14.50
92055C
920551400
ref: 92055C
RING-O,DRAIN COVER
€ 16.00
92063
920631014
ref: 92063
MAIN JET,#135
€ 9.50
92063A
920631015
ref: 92063A
MAIN JET,#138
€ 9.50
92063B
920631069
ref: 92063B
MAIN JET,2ND #125
€ 9.50
92063C
920631074
ref: 92063C
MAIN JET,2ND #128
€ 9.50
92063D
920631075
ref: 92063D
MAIN JET,2ND #130
€ 9.50
223
223D0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92063E
920631076
ref: 92063E
JET-MAIN,#132
€ 9.50
92064
920641135
ref: 92064
JET-PILOT,#42
€ 14.00
92064A
920641136
ref: 92064A
JET-PILOT,#40
€ 13.00
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811719
ref: 92081A
SPRING,AIR CUT VALVE
€ 8.50
92081B
920811761
ref: 92081B
SPRING,STARTER PLUNGE
€ 6.00
92144
921441219
ref: 92144
SPRING,VACUUM VALVE
€ 12.50
