CLUTCH

VN1500A9 VULCAN 88 1995 USA CALIFORNIA CANADA

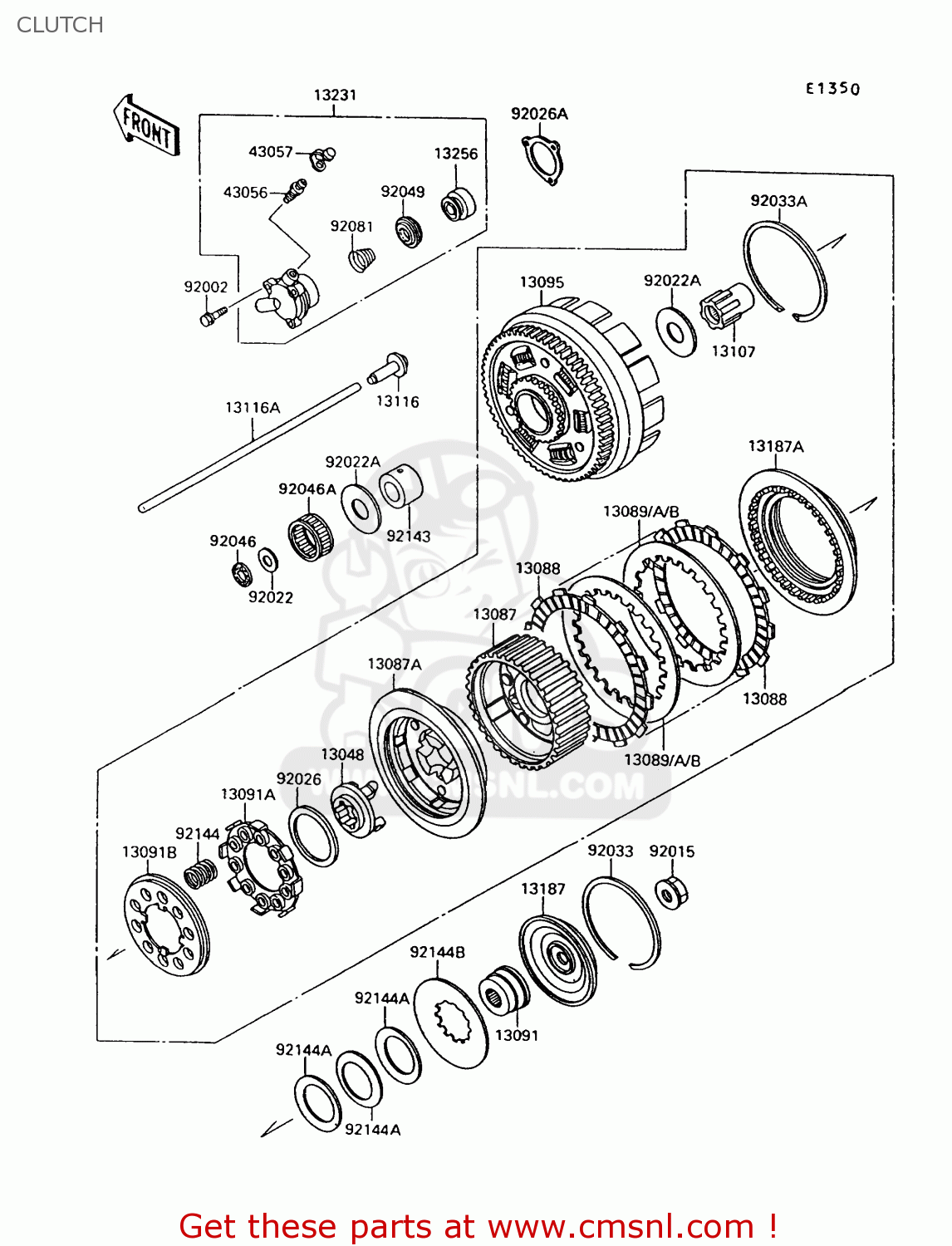

Clutch diagram VN1500A9 VULCAN 88 1995 USA CALIFORNIA CANADA

CLUTCH VN1500A9 VULCAN 88 1995 USA CALIFORNIA CANADA
CLUTCH VN1500A9 VULCAN 88 1995 USA CALIFORNIA CANADA
CLUTCH VN1500A9 VULCAN 88 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13087
130871103
ref: 13087
HUB-CLUTCH,OUTER
€ 162.50
13087A
130871110
ref: 13087A
HUB-CLUTCH,INNER
130871110
€ 237.00
13088
130881018
ref: 13088
PLATE-FRICTION (NAS)
130881018
€ 15.00
13089
130891075
ref: 13089
PLATE-CLUTCH (NAS)
130891075
€ 7.50
13089A
130891080
ref: 13089A
PLATE-CLUTCH,T=1.6 (NAS)
130891080
€ 8.00
13089B
130891081
ref: 13089B
PLATE-CLUTCH,T=2.3 (NAS)
130891081
€ 8.00
13091
130911494
ref: 13091
HOLDER,CLUTCH SPRING
130911494
€ 47.00
13091A
130911495
ref: 13091A
HOLDER,DAMPER SPRING
130911495
€ 73.00
13091B
130911496
ref: 13091B
HOLDER,DAMPER SPRING
€ 62.50
13095
130951168
ref: 13095
HOUSING-COMP-CLUTCH
€ 397.00
13107
131071237
ref: 13107
SHAFT,CLUTCH CAM DAMP
131071237
€ 71.50
13116
131161102
ref: 13116
ROD-PUSH,CLUTCH
131161102
€ 26.50
13116A
131161132
ref: 13116A
ROD-PUSH
131161132
€ 19.50
13187
131871063
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871063
€ 21.50
13187A
131871066
ref: 13187A
PLATE-CLUTCH OPERATIN (NAS)
131871066
€ 66.00
13231
132311064
ref: 13231
RELEASE-ASSY-CLUTCH
132311064
€ 139.50
13256
132561052
ref: 13256
PISTON
132561052
€ 43.50
43056
430561052
ref: 43056
BREATHER-BRAKE
430561052
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
92002
920021612
ref: 92002
BOLT
920021612
€ 3.00
92015
920151461
ref: 92015
NUT,20MM
920151461
€ 17.50
92022
920221463
ref: 92022
WASHER,15.1X29X1.0
920221463
€ 3.00
92022A
920221857
ref: 92022A
WASHER,25.3X56X2.0
920221857
€ 9.50
92026
920261043
ref: 92026
SPACER,3.5X59X70
920261043
€ 19.00
92026A
920261263
ref: 92026A
SPACER,CLUTCH RELEASE
920261263
€ 11.50
92033
920331238
ref: 92033
RING-SNAP
920331238
€ 10.50
92033A
920331239
ref: 92033A
RING-SNAP
920331239
€ 6.50
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
920461052
€ 14.00
92046A
920461175
ref: 92046A
BEARING-NEEDLE,RS40/2
920461175
€ 35.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
920491165
€ 13.00
92081
920811644
ref: 92081
SPRING,CLUTCH RELEASE
920811644
€ 5.50
92143
921431076
ref: 92143
COLLAR,INPUT SHAFT
€ 29.50
92144
921441187
ref: 92144
SPRING,DAMPER
921441187
€ 7.50
92144A
921441188
ref: 92144A
SPRING,LIMITER
921441188
€ 8.50
92144B
921441295
ref: 92144B
SPRING,CLUTCH
921441295
€ 25.00
