Genuine VN Kawasaki Parts delivered quickly!


REAR MASTER CYLINDER

VN1500A8 VULCAN 88 1994 USA CALIFORNIA CANADA

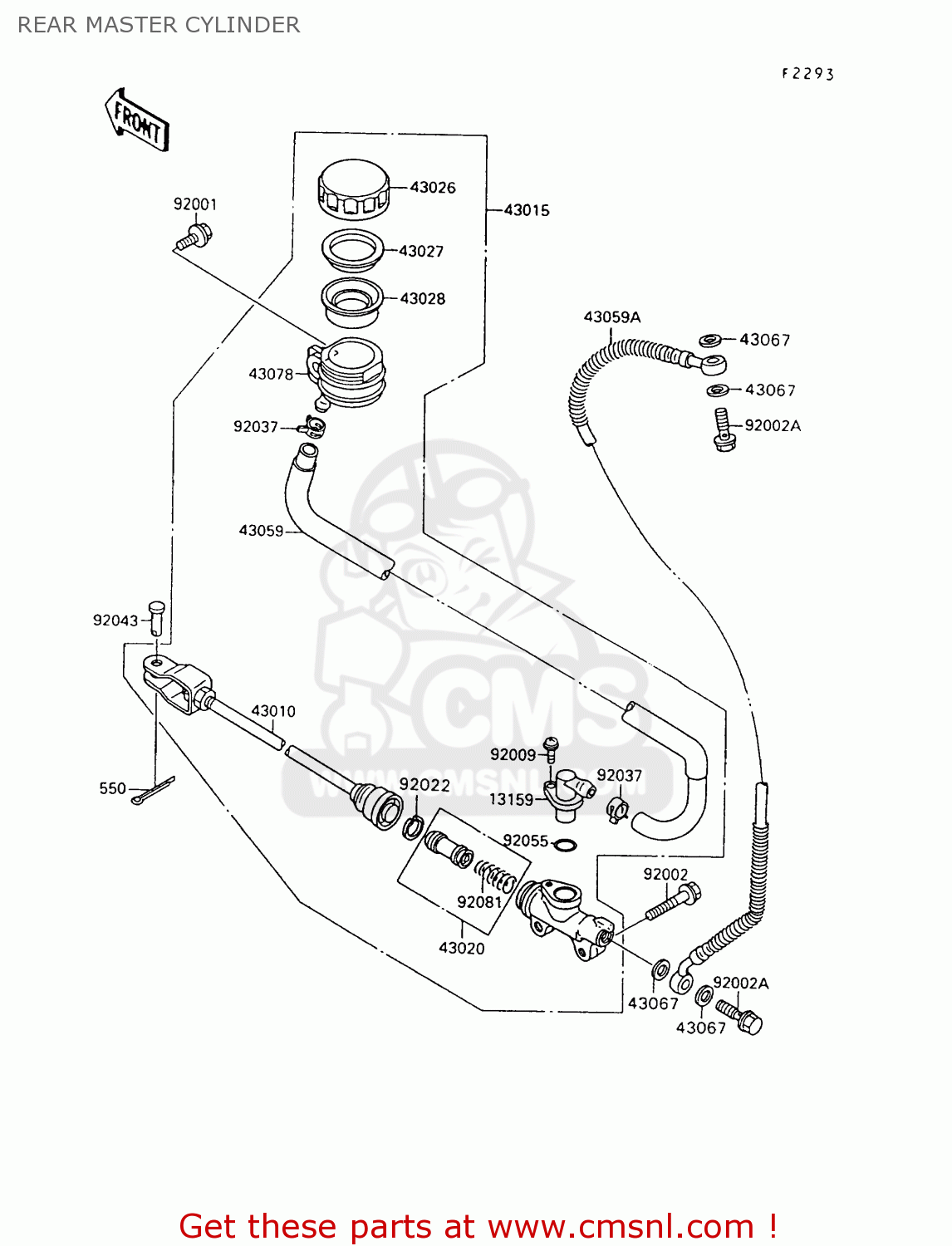

Rear master cylinder diagram VN1500A8 VULCAN 88 1994 USA CALIFORNIA CANADA

REAR MASTER CYLINDER VN1500A8 VULCAN 88 1994 USA CALIFORNIA CANADA
REAR MASTER CYLINDER VN1500A8 VULCAN 88 1994 USA CALIFORNIA CANADA
REAR MASTER CYLINDER VN1500A8 VULCAN 88 1994 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591058
ref: 13159
CONNECTOR
131591058
€ 12.00
43010
430101064
ref: 43010
ROD-ASSY-BRAKE
€ 41.50
43015
430151349
ref: 43015
CYLINDER-ASSY-MASTER,
€ 259.50
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
430201057
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591414
ref: 43059
HOSE-BRAKE,RR MASTER
€ 12.00
43059A
430591439
ref: 43059A
HOSE-BRAKE,RR
€ 110.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781058
ref: 43078
RESERVOIR,RR MASTER C
430781058
€ 20.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
920011860
€ 2.50
92002
920021539
ref: 92002
BOLT,FLANGED,8X30
€ 2.50
92002A
920021888
ref: 92002A
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091486
ref: 92009
SCREW
€ 2.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92043
920431013
ref: 92043
PIN
920431013
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92081
920811737
ref: 92081
SPRING
920811737
€ 8.50
