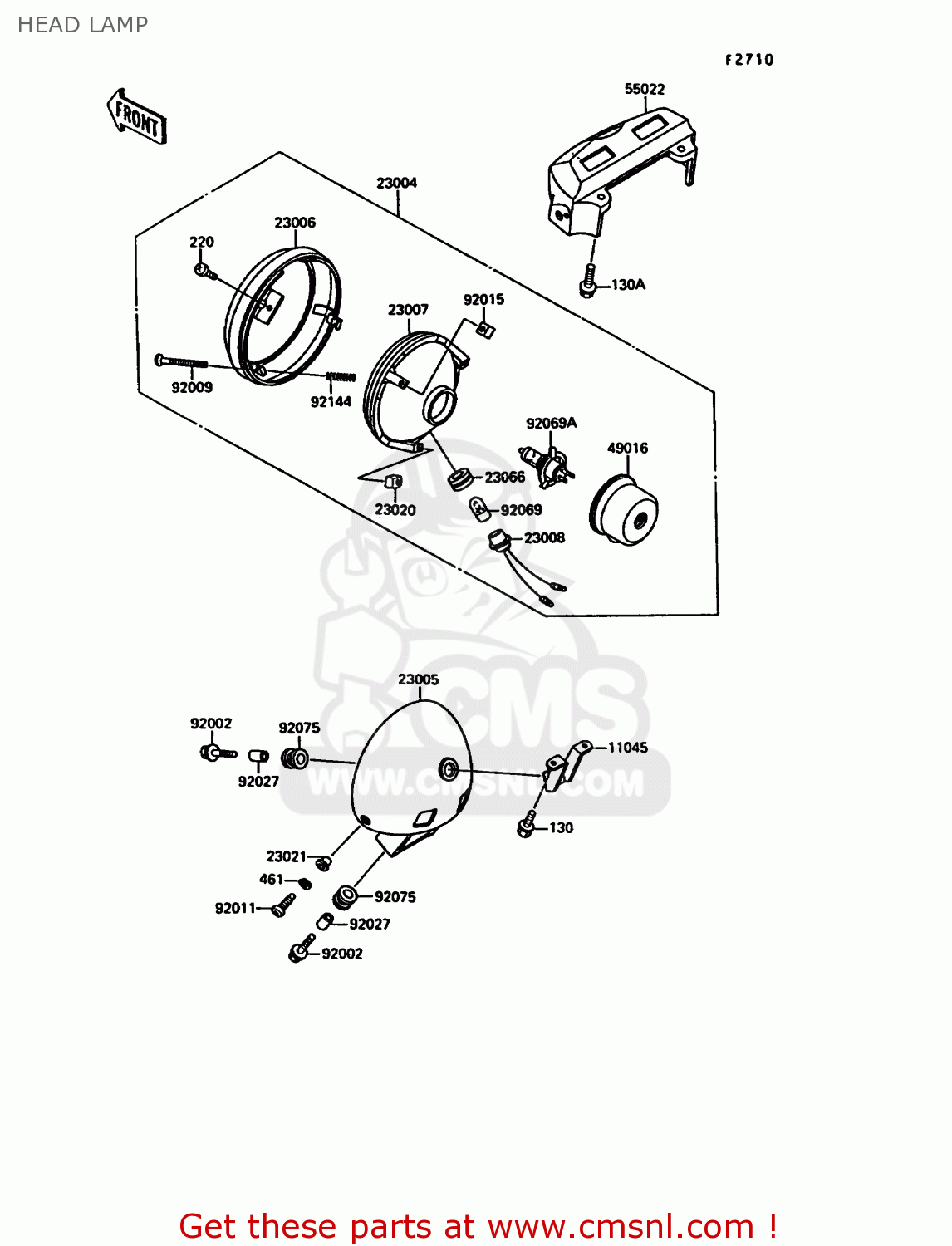

HEAD LAMP

ref

part #

description

quantity

130

130D0612
ref: 130

BOLT,FLANGED

€ 0.50

130A

130N0825
ref: 130A

BOLT-FLANGED

€ 3.50

220

220D0512
ref: 220

SCREW-PAN-CROS,5X12

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

11045

110451598
ref: 11045

BRACKET,HEAD LAMP

€ 6.00

23004

230041308
ref: 23004

LAMP-HEAD

€ 515.50

23005

230051086
ref: 23005

BODY-COMP-HEAD LAMP

€ 70.00

23006

230061059
ref: 23006

RIM-LAMP

€ 73.00

23007

230071262
ref: 23007

LENS-COMP,HEAD LAMP

€ 151.00

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

23021

23021010
ref: 23021

WASHER

€ 2.50

23066

23066008
ref: 23066

DAMPER,PARKING LAMP

€ 3.00

49016

490161129
ref: 49016

COVER-SEAL,HEAD LAMP

€ 8.00

55022

550221059
ref: 55022

COVER-HEAD LAMP

€ 255.00

92002

920021135
ref: 92002

BOLT,6X25

€ 2.50

92009

920091472
ref: 92009

SCREW,FOCUS ADJUST,4X

€ 3.50

92011

92011024
ref: 92011

SCREW-PAN HEAD,5MM

€ 2.00

92015

920151157
ref: 92015

NUT,5MM

€ 3.50

92027

92027156
ref: 92027

COLLAR-BATTERY CASE

€ 3.00

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00

92075

920751035
ref: 92075

DAMPER RUBBER

€ 3.50

92144

921441149
ref: 92144

SPRING,FOCUS ADJUST

€ 5.50
