AIR FILTER
VN1500A4 VULCAN 88 1990 USA CALIFORNIA

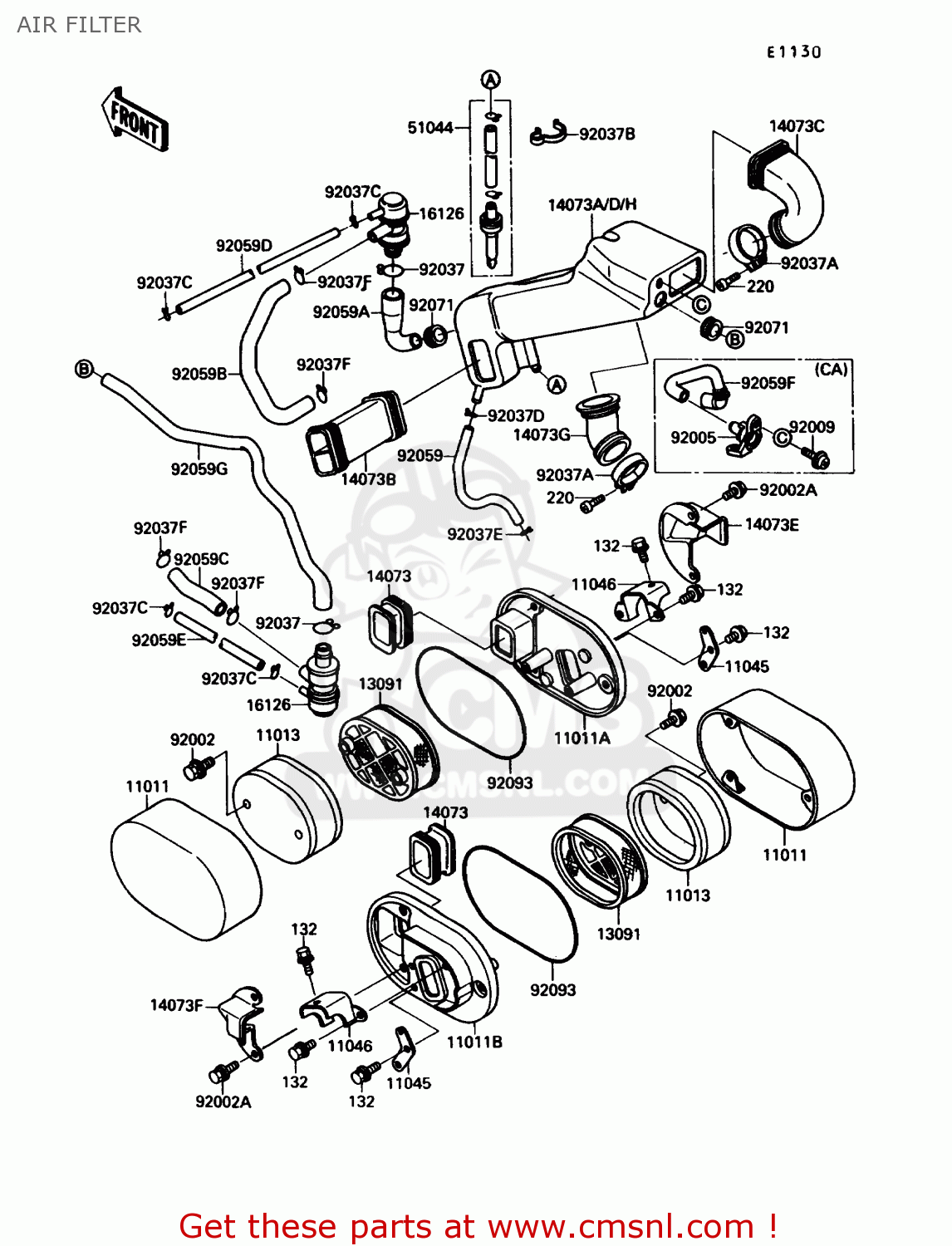

Air filter diagram VN1500A4 VULCAN 88 1990 USA CALIFORNIA
AIR FILTER VN1500A4 VULCAN 88 1990 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11011
110111248
ref: 11011
CASE-AIR FILTER,OUTSI
€ 123.50
11011A
110111289
ref: 11011A
CASE-AIR FILTER,LH,IN
€ 45.50
11011B
110111290
ref: 11011B
CASE-AIR FILTER,RH,IN
€ 45.50
11013
110131122
ref: 11013
ELEMENT-AIR FILTER
€ 16.50
11045
110451434
ref: 11045
BRACKET,AIR FILTER,LW
€ 2.50
11046
110461035
ref: 11046
BRACKET,AIR FILTER,UP
€ 5.50
13091
130911345
ref: 13091
HOLDER,ELEMENT
€ 42.50
14073
140731296
ref: 14073
DUCT,INLET
€ 11.50
14073A
140731297
ref: 14073A
US
DUCT,SURGE TANK
€ 85.00
14073B
140731298
ref: 14073B
DUCT,AIR FILTER
€ 14.00
14073C
140731299
ref: 14073C
DUCT,FR,CARBURETOR
€ 50.50
14073D
140731306
ref: 14073D
CA
SURGE TANK DUCT
€ 42.00
14073E
140731316
ref: 14073E
DUCT,LH
€ 10.50
14073F
140731317
ref: 14073F
DUCT,RH
€ 10.00
14073G
140731326
ref: 14073G
DUCT,RR,CARBURETOR
€ 15.50
16126
161261188
ref: 16126
VALVE,AIR SWITCH
€ 121.50
51044
510441089
ref: 51044
TUBE-ASSY
€ 34.50
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92002A
920021242
ref: 92002A
BOLT
€ 3.00
92005
920051163
ref: 92005
CA
FITTING
€ 5.50
92009
920091272
ref: 92009
CA
SCREW,6X14
€ 2.00
92037
920371076
ref: 92037
CLAMP,TUBE
€ 4.00
92037A
920371112
ref: 92037A
CLAMP,BOOT FITTING
€ 11.50
92037B
920371552
ref: 92037B
CLAMP
€ 6.50
92037C
920371712
ref: 92037C
CLAMP
€ 3.00
92037D
920371862
ref: 92037D
CLAMP,14MM
€ 4.00
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.50
220
220C0430
ref: 220
SCREW-PAN-CROS
€ 2.50
92037E
92037192
ref: 92037E
CLAMP,BREATHER HOSE
€ 4.00
92037F
92037213
ref: 92037F
CLAMP, BREATHER TUBE
€ 2.50
92059
920591777
ref: 92059
TUBE,BREATHER
€ 10.00
92059A
920591779
ref: 92059A
TUBE,ASV-SURGE TANK
€ 8.00
92059B
920591780
ref: 92059B
TUBE,VALVE-ASV
€ 14.50
92059C
920591783
ref: 92059C
TUBE,ASV-CAP(R)
€ 5.50
92059D
920591820
ref: 92059D
TUBE,4X9X420
€ 7.00
92059E
920591846
ref: 92059E
TUBE
€ 7.00
92059F
920591859
ref: 92059F
CA
AIR FILTER TUBE
€ 13.00
92059G
920591873
ref: 92059G
TUBE
€ 20.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
€ 4.50
92093
920931236
ref: 92093
SEAL,AIR FILTER
€ 7.50
