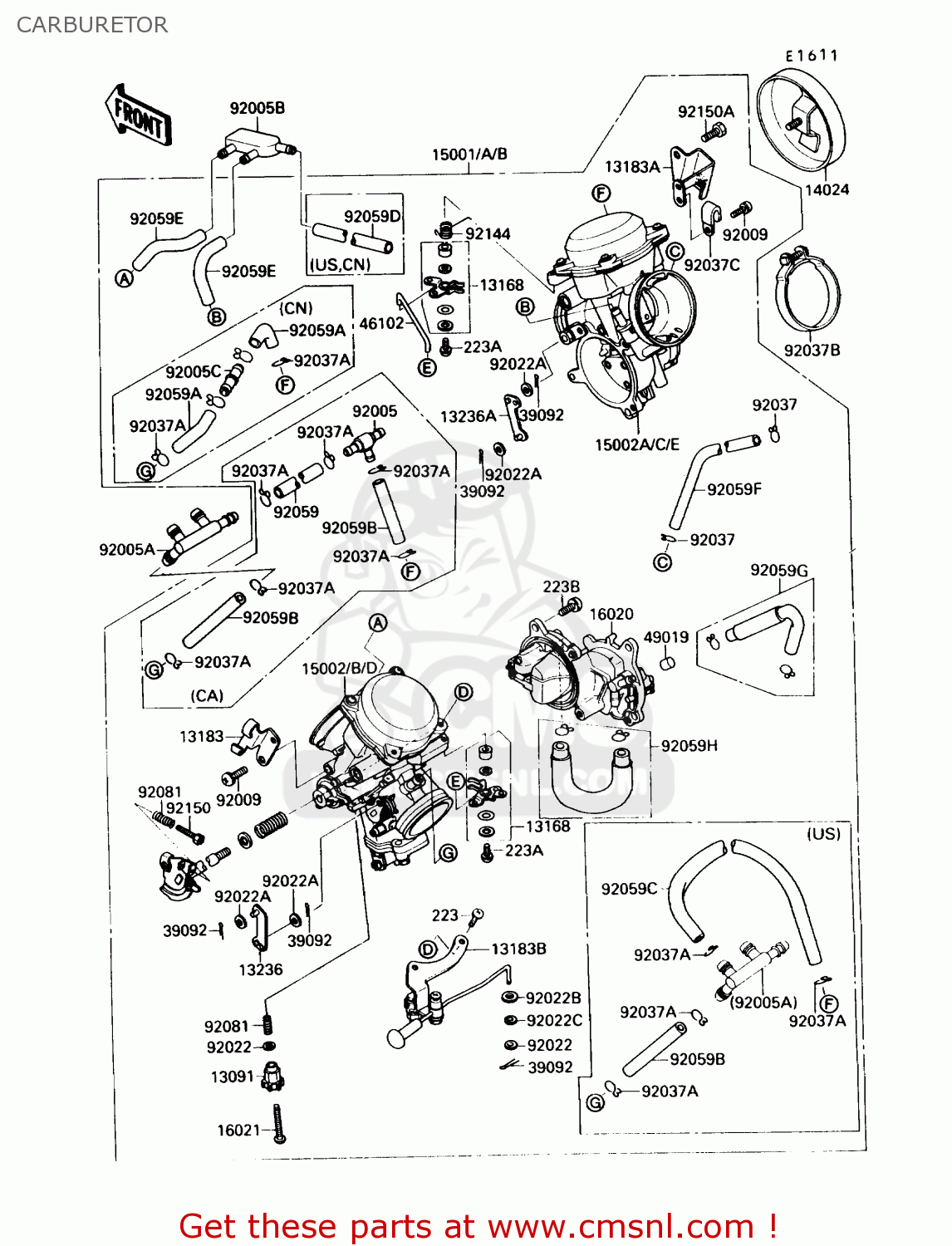

CARBURETOR

ref

part #

description

quantity

13091

130911382
ref: 13091

HOLDER,THROTTLE STOP

€ 11.00

13168

131681384
ref: 13168

LEVER,STARTER

€ 40.00

13183

131831213
ref: 13183

PLATE,THROTTLE CABLE

€ 34.50

13183A

131831215
ref: 13183A

PLATE,COVER

€ 32.50

13183B

131831244
ref: 13183B

PLATE,STARTER

€ 26.00

13236

132361165
ref: 13236

LEVER-COMP,LINK,RR

€ 10.50

13236A

132361166
ref: 13236A

LEVER-COMP,LINK,FR

€ 14.50

14024

140241586
ref: 14024

COVER

€ 28.50

15001

150011336
ref: 15001
US

CARBURETOR ASSEMBLY

€ 988.50

15001A

150011354
ref: 15001A
CA

CARBURETOR ASSEMBLY

€ 988.50

15001B

150011374
ref: 15001B
CN

CARBURETOR-ASSY

€ 0.00

15002

150021565
ref: 15002
US

CARBURETOR,REAR

€ 579.00

15002A

150021566
ref: 15002A
US

CARBURETOR,FRONT

€ 579.00

15002B

150021567
ref: 15002B
CA

CARBURETOR,REAR

€ 607.50

15002C

150021568
ref: 15002C
CA

CARBURETOR,FRONT

€ 579.00

15002D

150021569
ref: 15002D
CN

CARBURETOR,RR

€ 976.50

15002E

150021570
ref: 15002E
CN

CARBURETOR,FR

€ 976.50

16020

160201059
ref: 16020

CHAMBER-FLOAT

€ 219.50

16021

160211122
ref: 16021

SCREW-THROTTLE STOP

€ 4.00

39092

390921051
ref: 39092

PIN-HAIR

€ 2.00

46102

461021232
ref: 46102

ROD,STARTER

€ 49.50

49019

490191059
ref: 49019

FILTER-FUEL

€ 8.50

92005

920051112
ref: 92005
CA

FITTING,FUEL,T-TYPE

€ 10.00

92005A

920051164
ref: 92005A
CAUS

FITTING

€ 6.50

223

223C0420
ref: 223

SCREW-PAN-WS-CROS

€ 3.00

92005B

920051165
ref: 92005B

FITTING

€ 20.00

92005C

920051175
ref: 92005C
CN

FITTING,TUBE

€ 17.00

92009

920091365
ref: 92009

SCREW

€ 4.50

92022

920221480
ref: 92022

WASHER,PLAIN,STOP SPR

€ 3.00

92022A

920221676
ref: 92022A

WASHER,3.1X8X0.5,POLY

€ 3.00

92022B

920221913
ref: 92022B

WASHER,4.3X9.0X1.0,PO

€ 2.00

92022C

920221914
ref: 92022C

WASHER,5.0X7.5X1.0,PO

€ 2.00

92037

920371142
ref: 92037

CLAMP,TUBE

€ 2.50

92037A

920371477
ref: 92037A
CNUS

CLAMP,TUBE

€ 3.00

92037A

920371477
ref: 92037A
CA

CLAMP,TUBE

€ 3.00

92037B

920371637
ref: 92037B

CLAMP

€ 6.00

92037C

920371958
ref: 92037C

CLAMP

€ 8.50

92059

920591377
ref: 92059
CA

TUBE,5X9X180

€ 16.50

92059A

920591378
ref: 92059A
CN

TUBE,5X9X150

€ 16.50

92059B

920591880
ref: 92059B
US

TUBE,5X9X35

€ 14.50

92059B

920591880
ref: 92059B
CA

TUBE,5X9X35

€ 14.50

92059C

920591881
ref: 92059C
US

TUBE,5X9X245

€ 10.50

92059D

920591882
ref: 92059D
CNUS

TUBE,7X11X460

€ 22.00

92059E

920591883
ref: 92059E

TUBE,7X11X160

€ 24.50

92059F

920591884
ref: 92059F

TUBE,3X7X750

€ 20.50

92059G

920591885
ref: 92059G

TUBE,5.3X10.5X190

€ 21.00

92059H

920591886
ref: 92059H

TUBE,10.5X5.3X140

€ 14.50

92081

920811617
ref: 92081

SPRING,THROTTLE STOP

€ 3.50

92144

921441220
ref: 92144

SPRING

€ 6.00

92150

921501032
ref: 92150

BOLT,4X20

€ 2.50

92150A

921501033
ref: 92150A

BOLT,10X16

€ 4.00

223A

223D0425
ref: 223A

SCREW-PAN-WS-CROS

€ 2.00

223B

223D0512
ref: 223B

SCREW-PAN-WS-CROS

€ 2.50
