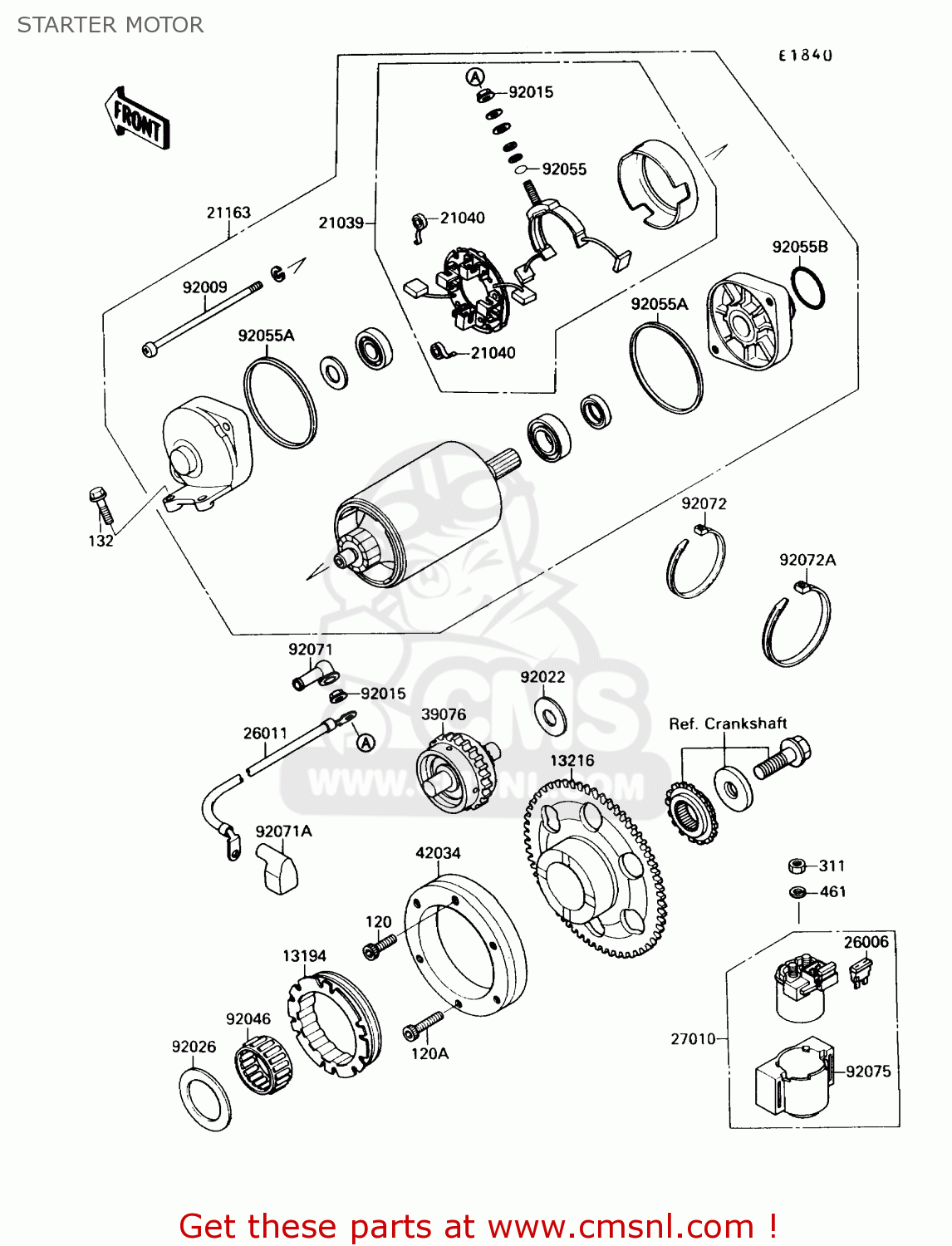

STARTER MOTOR

ref

part #

description

quantity

120

120S0620
ref: 120

BOLT-SOCKET,6X20

€ 1.00

120A

120S0630
ref: 120A

BOLT-SOCKET,6X30,BLAC

€ 1.00

132

132E0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

13194

131941070
ref: 13194

CLUTCH-ONEWAY

€ 131.50

13216

132161115
ref: 13216

GEAR-COMP,FREE WHEEL

€ 151.00

21039

210391060
ref: 21039

BRUSH,CARBON

€ 74.00

21040

210401055
ref: 21040

SPRING-BRUSH

€ 5.50

21163

211631109
ref: 21163

STARTER-ELECTRIC

€ 946.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26011

260111403
ref: 26011

WIRE-LEAD,STARTER MOT

€ 55.50

27010

270101213
ref: 27010

SWITCH,MAGNETIC

€ 111.00

39076

390761057
ref: 39076

LIMITER,STARTER IDLE

€ 234.00

42034

420341093
ref: 42034

COUPLING

€ 69.50

92009

920091443
ref: 92009

SCREW

€ 5.50

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221852
ref: 92022

WASHER,12X27.5X1.0

€ 3.00

92026

920261070
ref: 92026

SPACER

€ 8.00

92046

920461171
ref: 92046

BEARING-NEEDLE,K30X35

€ 23.50

92055

920551370
ref: 92055

RING-O,4.5X2.0

€ 3.00

92055A

920551381
ref: 92055A

RING-O,STARTER MOTOR

€ 6.50

92055B

920551393
ref: 92055B

RING-O,37MM

€ 8.00

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92071A

920711130
ref: 92071A

GROMMET,TERMINAL

€ 7.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721197
ref: 92072A

BAND

€ 5.00

92075

920751863
ref: 92075

DAMPER,MAGNETIC SWITC

€ 14.00
