METER
VN1500A2 VN15 1988 EUROPE FR FG IT SD ST

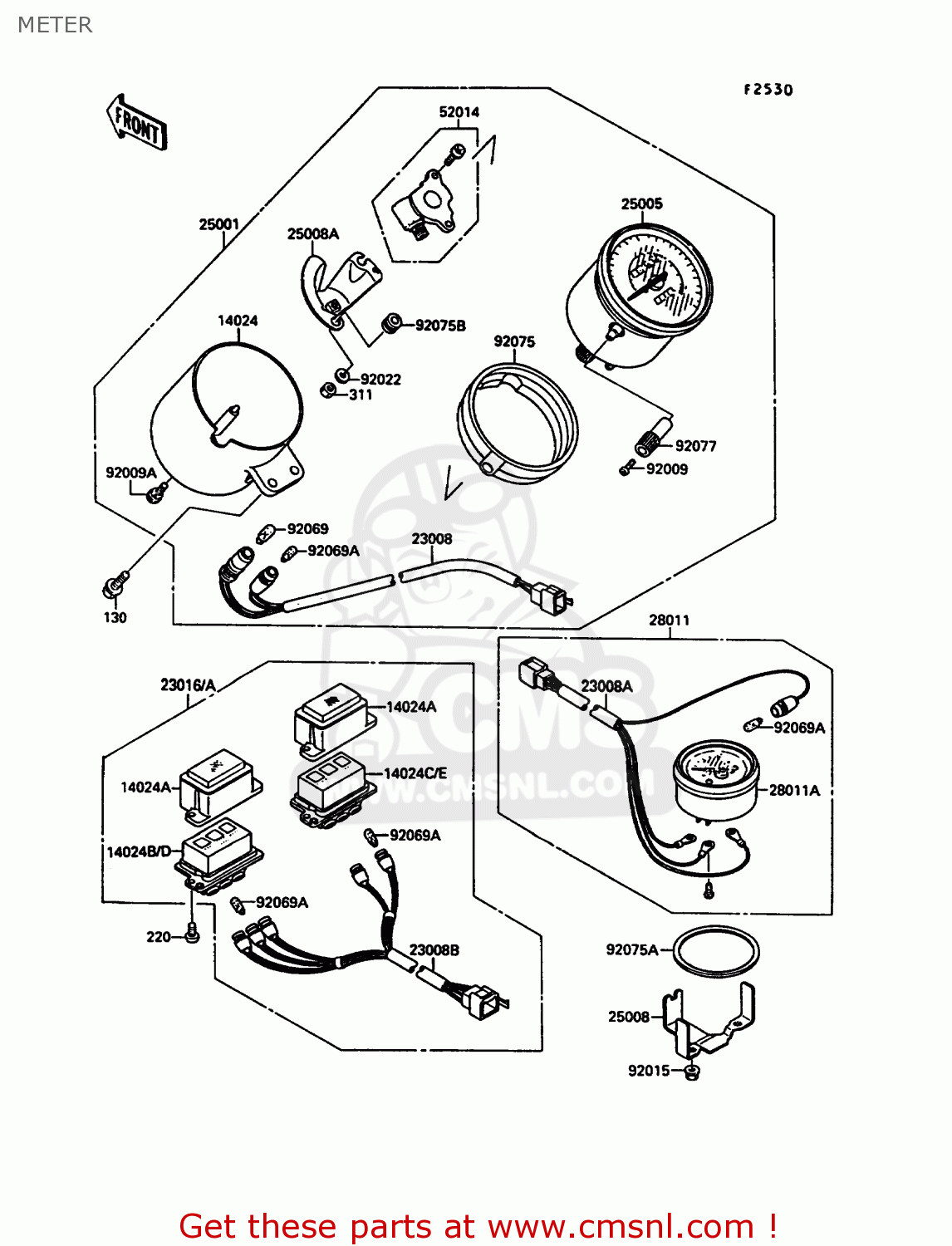

Meter diagram VN1500A2 VN15 1988 EUROPE FR FG IT SD ST
METER VN1500A2 VN15 1988 EUROPE FR FG IT SD ST
×
prices are in EUR
ref
part #
description
quantity
130
130B0616
ref: 130
BOLT-FLANGED,6X16
€ 0.50
220
220B0414
ref: 220
SCREW-PAN-CROS
€ 2.00
311
311B0400
ref: 311
NUT-HEX,4MM
€ 0.50
14024
140241504
ref: 14024
COVER,METER,LWR
€ 295.50
14024A
140241505
ref: 14024A
COVER,PILOT BOX,UPP
€ 7.50
14024B
140241506
ref: 14024B
EUFRITSTWG
COVER,PILOT BOX,LH,LW
€ 27.00
14024C
140241672
ref: 14024C
EUFRITSTWG
COVER,PILOT BOX,RH,LW
€ 44.50
14024D
140241673
ref: 14024D
SD
COVER,PILOT BOX,LH,LW
€ 58.00
14024E
140241674
ref: 14024E
SD
COVER,PILOT BOX,RH,LW
€ 49.00
23008
230081340
ref: 23008
SOCKET-ASSY,METER
€ 18.50
23008A
230081342
ref: 23008A
SOCKET-ASSY,FUEL METE
€ 76.00
23008B
230081372
ref: 23008B
SOCKET-ASSY,PILOT BOX
€ 52.50
23016
230161093
ref: 23016
EUFRITSTWG
LAMP-ASSY,PILOT BOX
€ 260.00
23016A
230161094
ref: 23016A
SD
LAMP-ASSY,PILOT BOX
€ 398.00
25001
250011697
ref: 25001
METER-ASSY,KPH
€ 1,526.50
25005
250051368
ref: 25005
SPEEDOMETER,KPH
€ 383.50
25008
250081136
ref: 25008
BRACKET-METER
€ 7.50
25008A
250081139
ref: 25008A
BRACKET-METER
€ 24.50
28011
280111099
ref: 28011
METER,FUEL
€ 316.50
28011A
280111102
ref: 28011A
METER,FUEL
€ 136.50
52014
520141006
ref: 52014
ELBOW,SPEEDOMETER GEA
€ 35.00
92009
920091172
ref: 92009
SCREW,2X6,BLACK
€ 2.00
92009A
920091478
ref: 92009A
SCREW,5X10
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
920221888
ref: 92022
WASHER,4.3X12.5X1
€ 1.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92075
920751953
ref: 92075
DAMPER,SHOCK,METER
€ 17.50
92075A
920751954
ref: 92075A
DAMPER,SHOCK,FUEL MET
€ 6.50
92075B
920751956
ref: 92075B
DAMPER,METER FITTING
€ 4.50
92077
920771077
ref: 92077
KNOB,METER
€ 5.50
