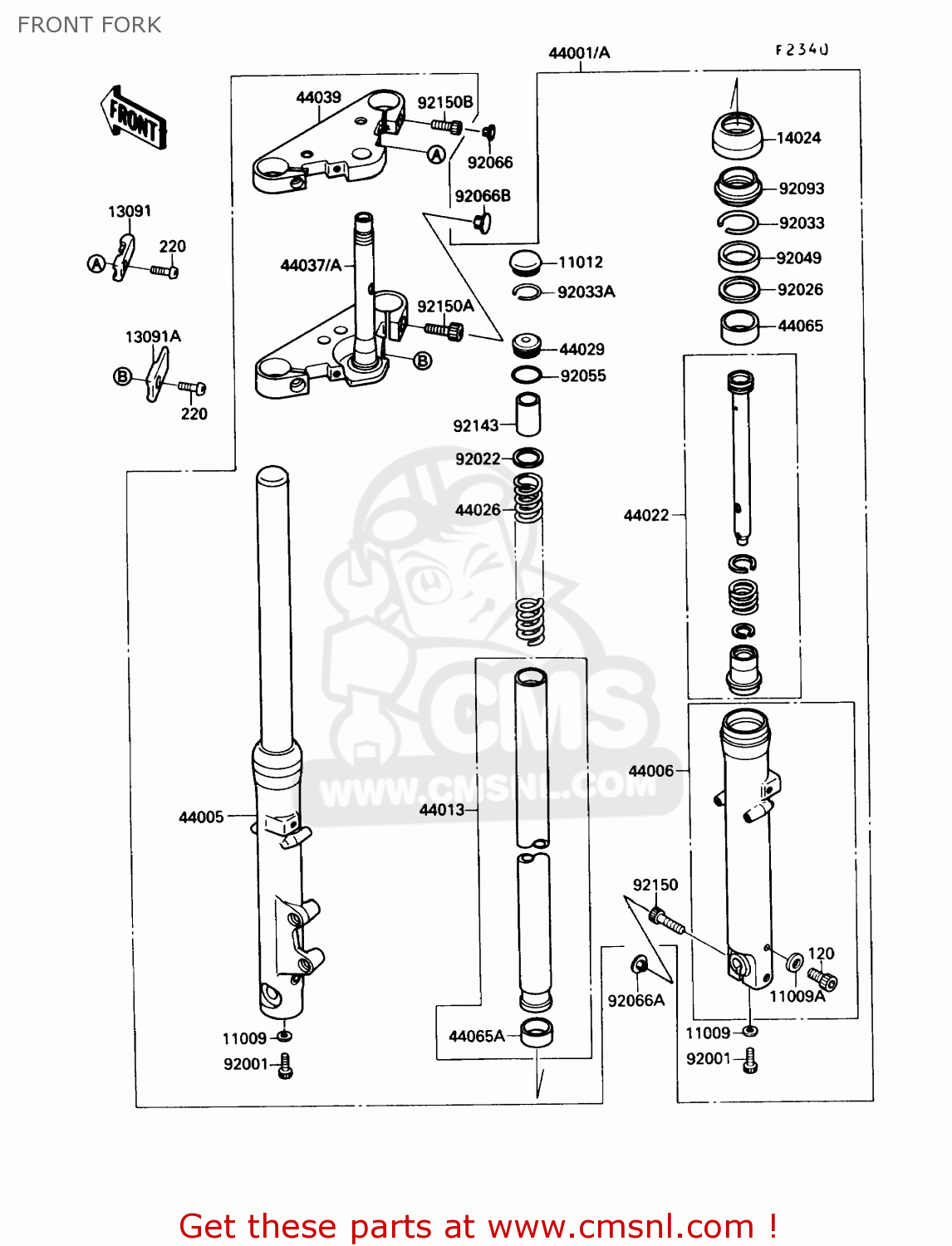

FRONT FORK

ref

part #

description

quantity

120

120P0608
ref: 120

BOLT-SOCKET

€ 1.50

220

220E0620
ref: 220

SCREW-PAN HEAD,6X20

€ 2.00

11009

44045051
ref: 11009

GASKET,FORK CYLINDER (NAS)

€ 4.00

11009A

44045052
ref: 11009A

GASKET,DRAIN PLUG (NAS)

€ 6.00

11012

110121618
ref: 11012

CAP,FORK TOP

€ 10.00

13091

130911482
ref: 13091

HOLDER,UPP

€ 16.50

13091A

130911483
ref: 13091A

HOLDER,LWR

€ 17.50

14024

140241600
ref: 14024

COVER,FORK OUTER TUBE

€ 29.50

44001

440011654
ref: 44001

FRONT FORK

€ 1,892.00

44005

440051264
ref: 44005

PIPE-LEFT FORK OUTER

€ 490.50

44006

440061261
ref: 44006

PIPE-RIGHT FORK OUTER

€ 345.50

44013

440131268
ref: 44013

PIPE-FORK INNER

€ 199.50

44022

440221215
ref: 44022

CYLINDER-FORK

€ 82.50

44026

440261372
ref: 44026

SPRING-FRONT FORK

€ 54.50

44029

440291125
ref: 44029

SEAT-FORK SPRING

€ 29.50

44037

440371215
ref: 44037

FORK HOLDER,UNDER

€ 331.00

44039

440391151
ref: 44039

HOLDER-FORK UPPER

€ 330.00

44065

440651079
ref: 44065

BUSHING-FRONT FORK

€ 16.00

44065A

440651080
ref: 44065A

BUSHING-FRONT FORK,IN

€ 19.00

92001

920011464
ref: 92001

BOLT

€ 4.00

92022

920221909
ref: 92022

WASHER

€ 7.00

92026

920261276
ref: 92026

SPACER,FORK OUTER

€ 6.50

92033

920331222
ref: 92033

RING-SNAP,FORK OUTER

€ 4.00

92033A

920331223
ref: 92033A

RING-SNAP,SPRING SEAT

€ 4.00

92049

920491272
ref: 92049

SEAL-OIL,FORK OUTER

€ 17.50

92055

920551363
ref: 92055

RING-O,SPRING SEAT

€ 4.50

92093

920931231
ref: 92093

SEAL,FORK OUTER TUBE

€ 16.50

92143

921431053
ref: 92143

COLLAR,FORK SPRING

€ 5.50

92150

921501029
ref: 92150

BOLT,SOCKET,10X40

€ 7.00

92150A

921501030
ref: 92150A

BOLT,SOCKET,12MM

€ 6.00

92150B

921501031
ref: 92150B

BOLT,SOCKET,8MM

€ 6.00
