CARBURETOR PARTS
KZ750N2 SPECTRE 1983 USA CANADA

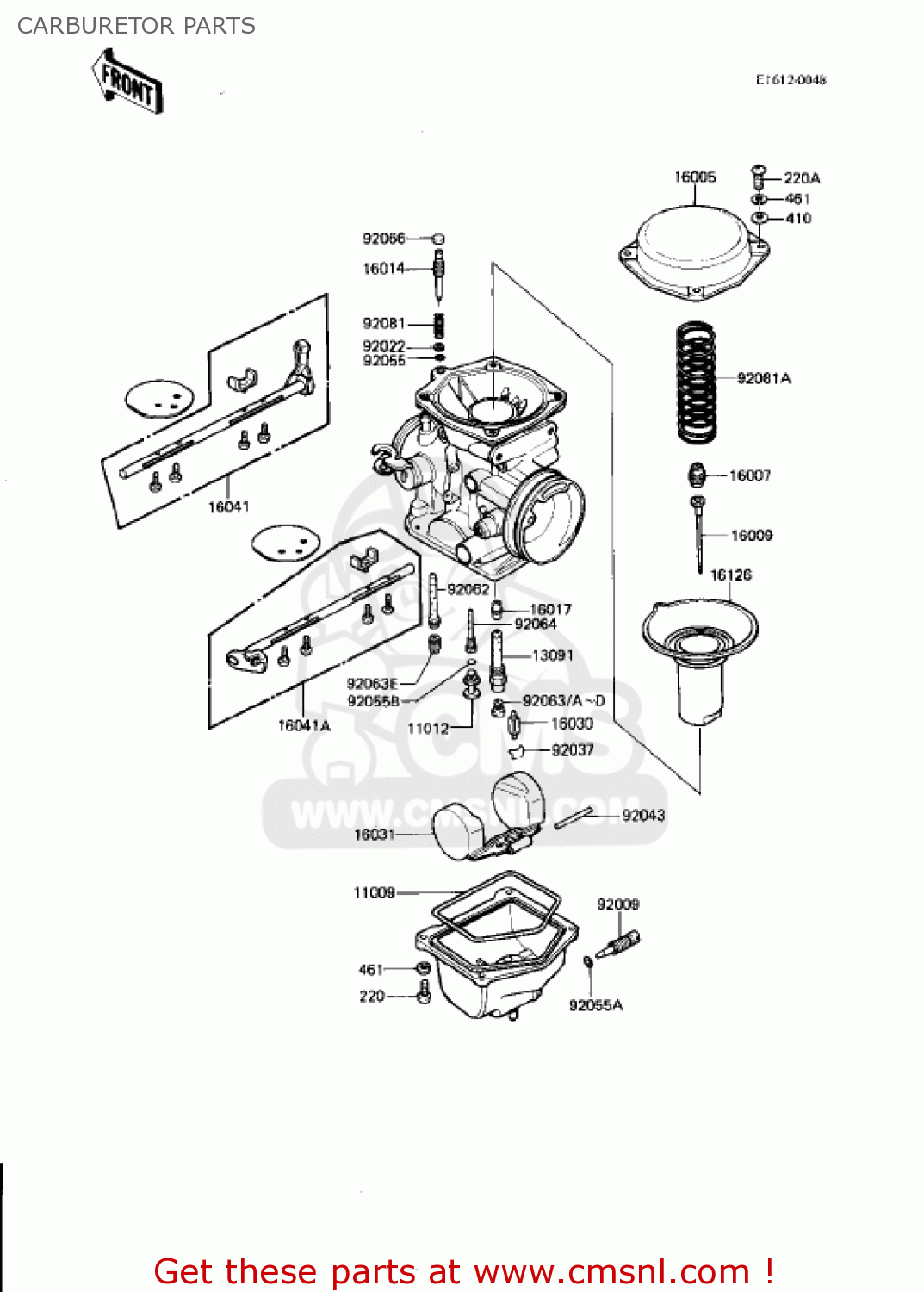

Carburetor parts diagram KZ750N2 SPECTRE 1983 USA CANADA
CARBURETOR PARTS KZ750N2 SPECTRE 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
16019024
ref: 11009
O RING,FLOAT CHAMBER
€ 15.00
11012
110121128
ref: 11012
CAP,POLYACETAL
€ 13.50
13091
130911157
ref: 13091
HOLDER,NEEDLE JET
€ 21.00
16005
160051017
ref: 16005
MIXING CHAMBER TOP
€ 22.00
16007
160071022
ref: 16007
SEAT-SPRING,THROTTLE
€ 8.00
16009
60091118
ref: 16009
UNAVAILABLE IN PRICE BOOK
€ 0.00
16014
160141011
ref: 16014
SCREW-PILOT AIR
€ 9.00
16017
160171059
ref: 16017
JET-NEEDLE
€ 33.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311001
ref: 16031
FLOAT
€ 38.50
16041
160411022
ref: 16041
SHAFT,CHOKE,LH
€ 53.50
16041A
160411023
ref: 16041A
SHAFT,CHOKE,R.H
€ 41.50
16126
161261057
ref: 16126
VALVE,VACUUM
€ 126.00
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431002
ref: 92043
PIN,FLOAT
€ 3.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551088
ref: 92055B
RING-O
€ 12.50
92062
920621021
ref: 92062
NOZZLE,MAIN
€ 21.00
92063
920631001
ref: 92063
JET-MAIN,#95
€ 10.00
92063A
920631003
ref: 92063A
MAIN JET, 2ND, # 90
€ 9.50
92063B
920631004
ref: 92063B
JET-MAIN,#92
€ 10.00
92063C
920631023
ref: 92063C
JET-MAIN,#85
€ 9.50
92063D
920631024
ref: 92063D
JET-MAIN,#88
€ 10.00
92063E
920631096
ref: 92063E
JET-MAIN,PRI,#65
€ 8.50
92064
920641001
ref: 92064
US
JET-PILOT,#35
€ 14.00
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811479
ref: 92081A
VACUUM VALVE SPRING
€ 12.00
220
220C0412
ref: 220
SCREW-PAN-CROS
€ 1.50
220A
220C0418A
ref: 220A
SCREW-PAN-CROS,4X18
€ 1.00
410
410F0400
ref: 410
WASHER-PLANE-SMALL,4M
€ 0.50
461
461K0400
ref: 461
WASHER-SPRING
€ 0.50
