CRANKCASE BOLT & STUD PATTERN

KZ650C1 CUSTOM 1977 USA CANADA / MPH KPH

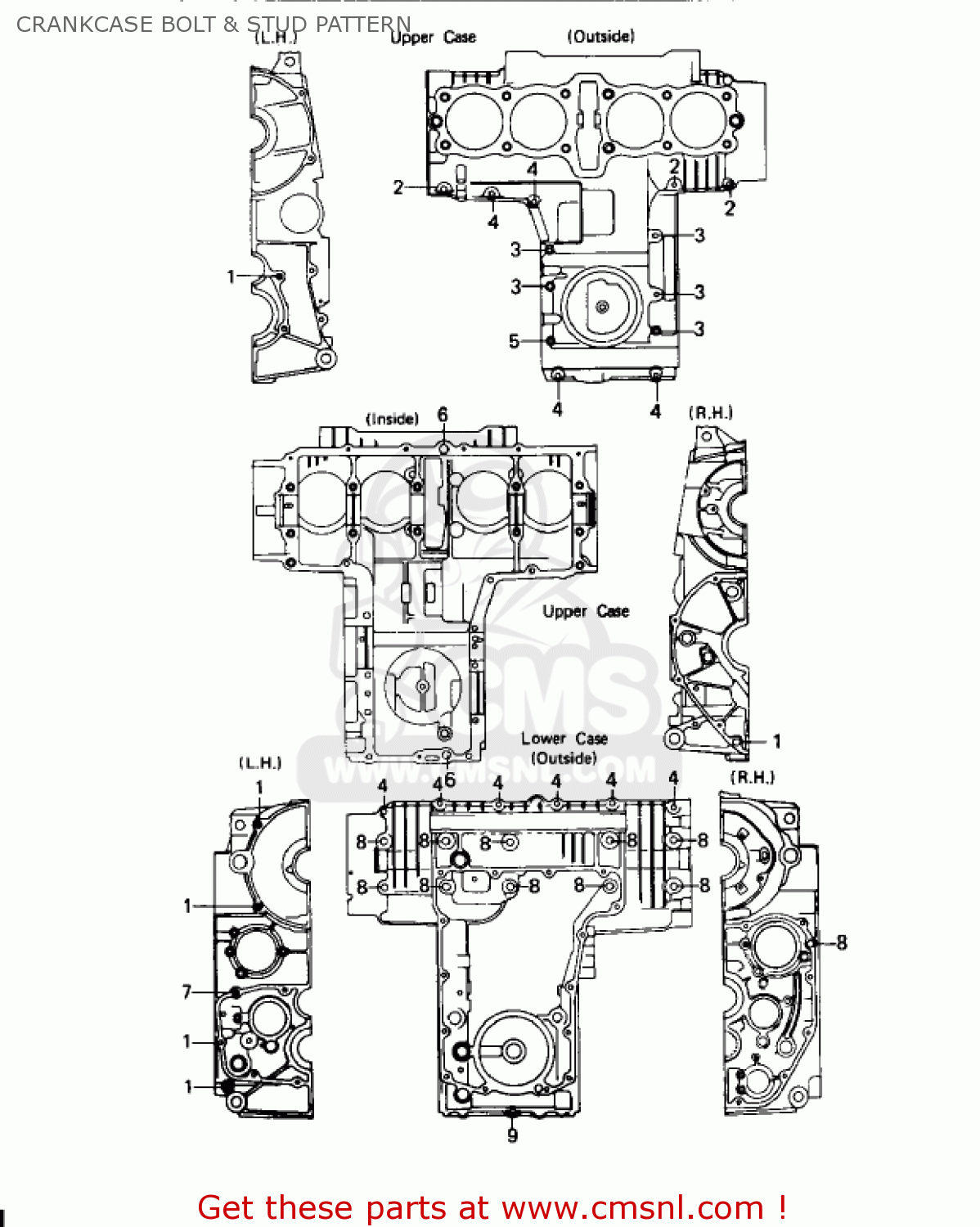

Crankcase bolt & stud pattern diagram KZ650C1 CUSTOM 1977 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

92042007
ref: 1

PIN-DOWEL

€ 4.00

130G0650
ref: 2

BOLT-FLANGED,6X50

€ 1.00

92003111
ref: 3

BOLT-HEX HEAD,6X99

€ 2.00

920021881
ref: 4

BOLT, 6X43

€ 4.50

920021881
ref: 4

BOLT, 6X43

€ 4.50

92003113
ref: 5

BOLT-HEX HEAD,6X116

€ 3.00

920431037
ref: 6

PIN,DOWEL,10X8.2X14

€ 0.50

551A0614
ref: 7

PIN,DOWEL, 6X14

€ 2.50

130P0895
ref: 8

BOLT-FLANGED,8X95

€ 7.00

92003194
ref: 9

BOLT,6X105

€ 1.50
