FRONT FORK
KZ550H2 GPZ 1983 USA CANADA

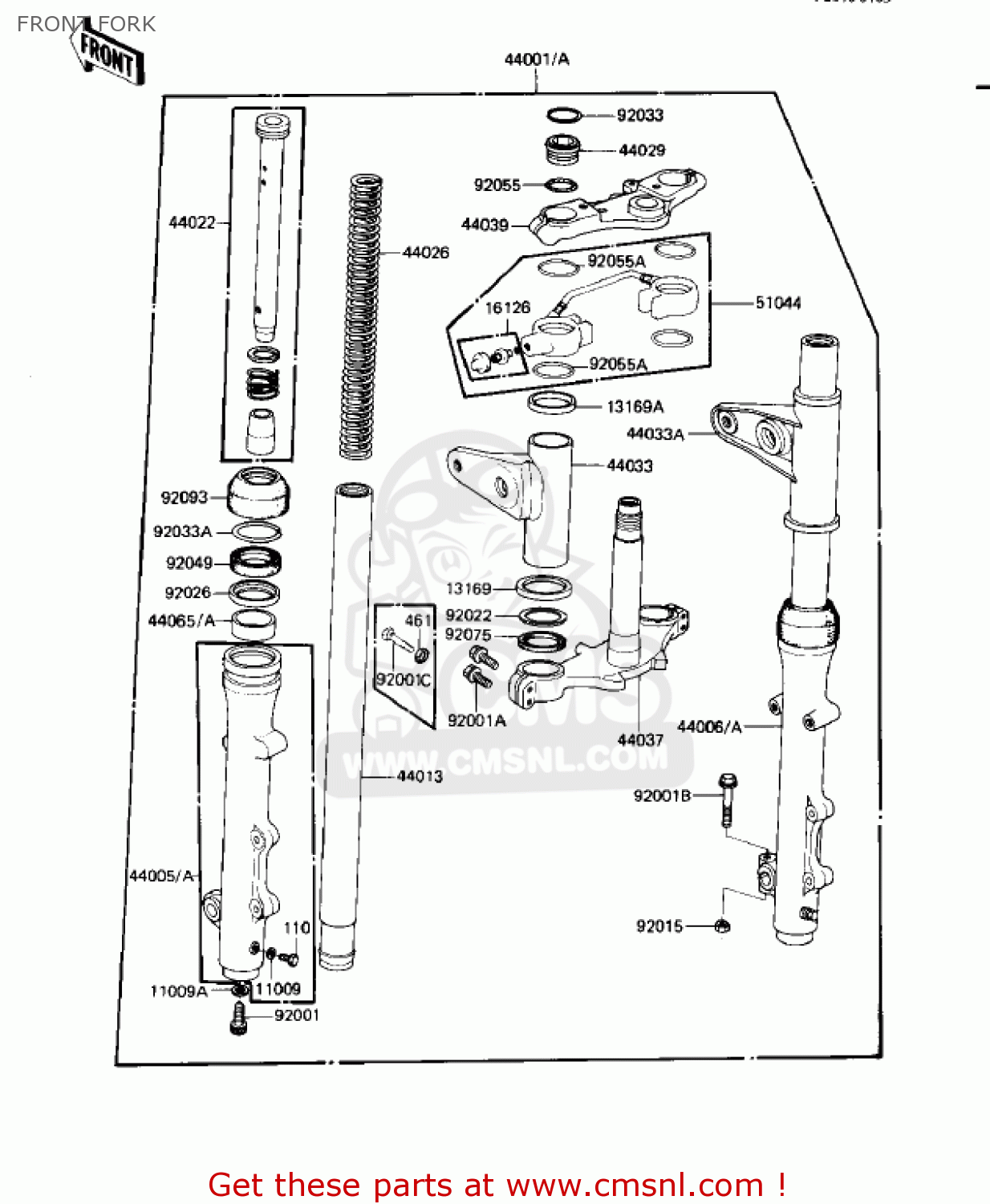

Front fork diagram KZ550H2 GPZ 1983 USA CANADA
FRONT FORK KZ550H2 GPZ 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045047
ref: 11009
GASKET,DRAIN PLUG (NAS)
€ 6.00
11009A
44045051
ref: 11009A
GASKET,FORK CYLINDER (NAS)
€ 4.00
13169
131691840
ref: 13169
PLATE,FORK COVER,LWR
€ 10.50
13169A
131691841
ref: 13169A
PLATE,FORK COVER,UPP
€ 8.50
16126
161261043
ref: 16126
VALVE,AIR
€ 24.50
44001
440011431
ref: 44001
FORK-FRONT
€ 802.50
44001A
440011431
ref: 44001A
FORK-FRONT
€ 802.50
44005
440051120
ref: 44005
PIPE-LEFT FORK OUTER
€ 110.50
44005A
440051120
ref: 44005A
PIPE-LEFT FORK OUTER
€ 110.50
44006
440061088
ref: 44006
PIPE-RIGHT FORK OUTER
€ 230.00
44006A
440061120
ref: 44006A
PIPE-RIGHT FORK OUTER
€ 230.00
44013
440131087
ref: 44013
PIPE-FORK INNER
€ 151.00
44022
440221077
ref: 44022
CYLINDER-FORK
€ 60.00
44026
440261138
ref: 44026
SPRING-FRONT FORK,L=5
€ 71.00
44029
440291012
ref: 44029
SEAT,FORK SPRING
€ 14.00
44033
440331091
ref: 44033
COVER-FORK,LH
€ 100.00
44033A
440331092
ref: 44033A
COVER-FORK,RH
€ 100.00
44037
440371086
ref: 44037
HOLDER-FORK UNDER,WG
€ 346.50
44039
440391055
ref: 44039
HOLDER-FORK UPPER
€ 157.00
44065
440651019
ref: 44065
BUSHING-FRONT FORK
€ 13.50
44065A
440651020
ref: 44065A
BUSHING-FRONT FORK
€ 13.00
51044
510441017
ref: 51044
TUBE-ASSY
€ 191.50
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92001A
920011570
ref: 92001A
BOLT
€ 3.00
92001B
920011571
ref: 92001B
BOLT
€ 2.00
92001C
920011745
ref: 92001C
BOLT
€ 3.00
92015
920151198
ref: 92015
NUT
€ 1.00
92022
920221111
ref: 92022
WASHER,FORK COVER
€ 7.50
92026
920261108
ref: 92026
SPACER
€ 13.50
92033
920331023
ref: 92033
CIRCLIP
€ 3.00
92033A
920331055
ref: 92033A
RING,SNAP
€ 4.00
92049
920491089
ref: 92049
SEAL-OIL
€ 25.50
92055
920551060
ref: 92055
RING-O,SPRING SEAT
€ 3.50
92055A
920551129
ref: 92055A
RING-O
€ 3.00
92075
920751137
ref: 92075
DAMPER,FORK COVER
€ 5.50
92093
920931075
ref: 92093
SEAL
€ 18.50
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
