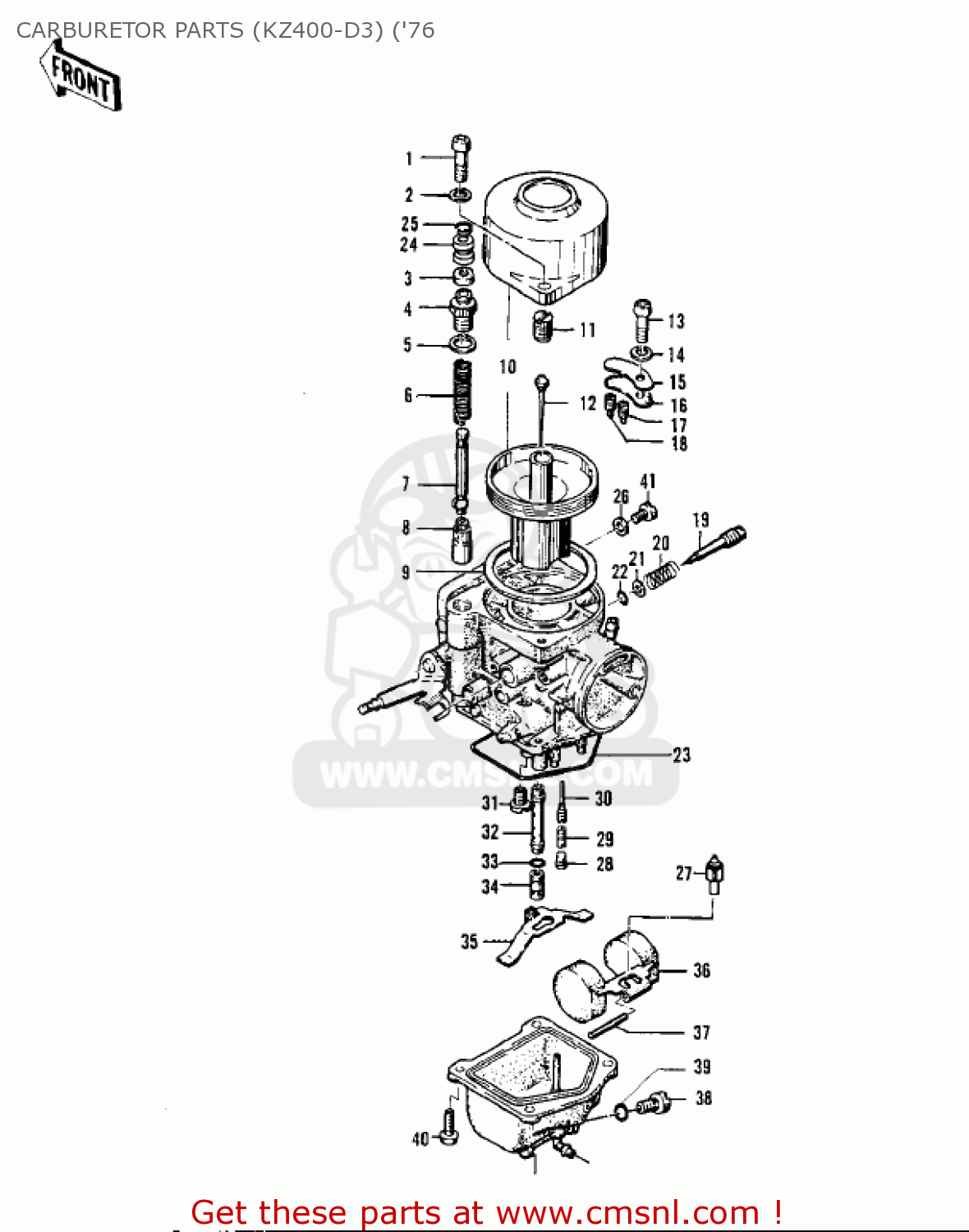

CARBURETOR PARTS (KZ400-D3) ('76

ref

part #

description

quantity

1

214B0516A
ref: 1

UNAVAILABLE IN PRICE BOOK

€ 0.50

2

461F0500
ref: 2

WASHER-SPRING,5MM

€ 0.50

3

16036014
ref: 3

CAP,STARTER PLUNGER

€ 5.50

4

16012018
ref: 4

CAP,STARTER PLUNGER

€ 6.50

5

16039022
ref: 5

WASHER,PLAIN

€ 3.50

6

16013012
ref: 6
757B

SPRING,STARTER PLUNG

€ 3.00

6

16013013
ref: 6
757C & LATER

SPRING, STERTER PLUNG

€ 4.00

7

16041007
ref: 7
757B

SHAFT,STARTER PLUNGR

€ 3.00

7

16041018
ref: 7
757C & LATER

STARTER PLUNGER SHAFT

€ 13.50

8

16016015
ref: 8

PLUNGER,STARTER

€ 34.00

9

16029008
ref: 9

GASKET,VACUUM PISTON (NAS)

€ 2.00

10

16059003
ref: 10

VACUUM PISTON&CARB CP

€ 76.00

11

16018003
ref: 11

HOLDER,JET NEEDLE

€ 3.00

12

16009069
ref: 12

JET NEEDLE,B.D.T.

€ 9.00

13

220B0406
ref: 13

SCREW-PAN-CROS,4X6

€ 2.50

14

461F0400
ref: 14

WASHER-SPRING,4MM

€ 0.50

15

16055005
ref: 15

PLATE,AIR JET

€ 1.50

16

16029009
ref: 16

GASKET,AIR JET PLATE (NAS)

€ 3.00

17

16035007
ref: 17

AIR JET,#40

€ 3.00

18

16035005
ref: 18
757 SERIES

AIR JET,#90

€ 6.00

18

16035007
ref: 18
V5A OR V5B

AIR JET,#40

€ 3.00

19

16014013
ref: 19

SCREW,PILOT ADJUST

€ 4.00

20

16015007
ref: 20

SPRING,PILOT SCREW

€ 3.50

21

16039021
ref: 21

WASHER,PLAIN,3.6MM

€ 1.50

22

16038011
ref: 22

O RING,PILOT SCREW

€ 2.50

23

16019024
ref: 23

O RING,FLOAT CHAMBER

€ 15.00

24

16073015
ref: 24
757C & LATER

COLLAR

€ 17.00

25

16008018
ref: 25
757C & LATER

CIRCLIP

€ 9.50

26

16039028
ref: 26

WASHER,PLAIN,6MM

€ 3.00

27

160301007
ref: 27
SEAT PRESSED IN BODY

FLOAT VALVE ASSY

€ 37.00

28

16036015
ref: 28

BOOT,PILOT JET RUBBER

€ 3.00

29

92064043
ref: 29

PILOT JET,#35

€ 7.50

30

16158002
ref: 30

JET-SLOW,#35

€ 14.00

31

16157003
ref: 31

STARTER JET,#68

€ 4.50

32

16017088
ref: 32

NEEDLE JET

€ 13.00

33

16038013
ref: 33

GASKET,MAIN JET

€ 3.50

34

92063130
ref: 34
STD

MAIN JET,#130

€ 9.50

34

92063136
ref: 34

MAIN JET,#115

€ 4.50

34

92063129
ref: 34

MAIN JET,#120

€ 5.50

34

92063137
ref: 34

MAIN JET,#125

€ 12.00

34

92063128
ref: 34

MAIN JET,#135

€ 8.00

34

92063138
ref: 34

MAIN JET,#140

€ 5.00

34

92063131
ref: 34

JET,MAIN,#150

€ 10.00

34

92063132
ref: 34

JET,MAIN,#160

€ 13.00

35

16055007
ref: 35

PLATE,MAIN JET

€ 3.00

36

16031027
ref: 36

FLOAT

€ 25.50

37

16032007
ref: 37

FLOAT PIN

€ 3.00

38

16033018
ref: 38

SCREW,DRAIN

€ 3.50

39

920551003
ref: 39

RING-O,DRAIN SCREW

€ 2.50

40

220B0410
ref: 40

SCREW-PAN-CROS

€ 2.00

41

16033019
ref: 41

SCREW,PLUG

€ 3.00
