Genuine KZ Kawasaki Parts delivered quickly!
home
CARBURETOR
KZ305B3 LTD305 1988 USA CALIFORNIA

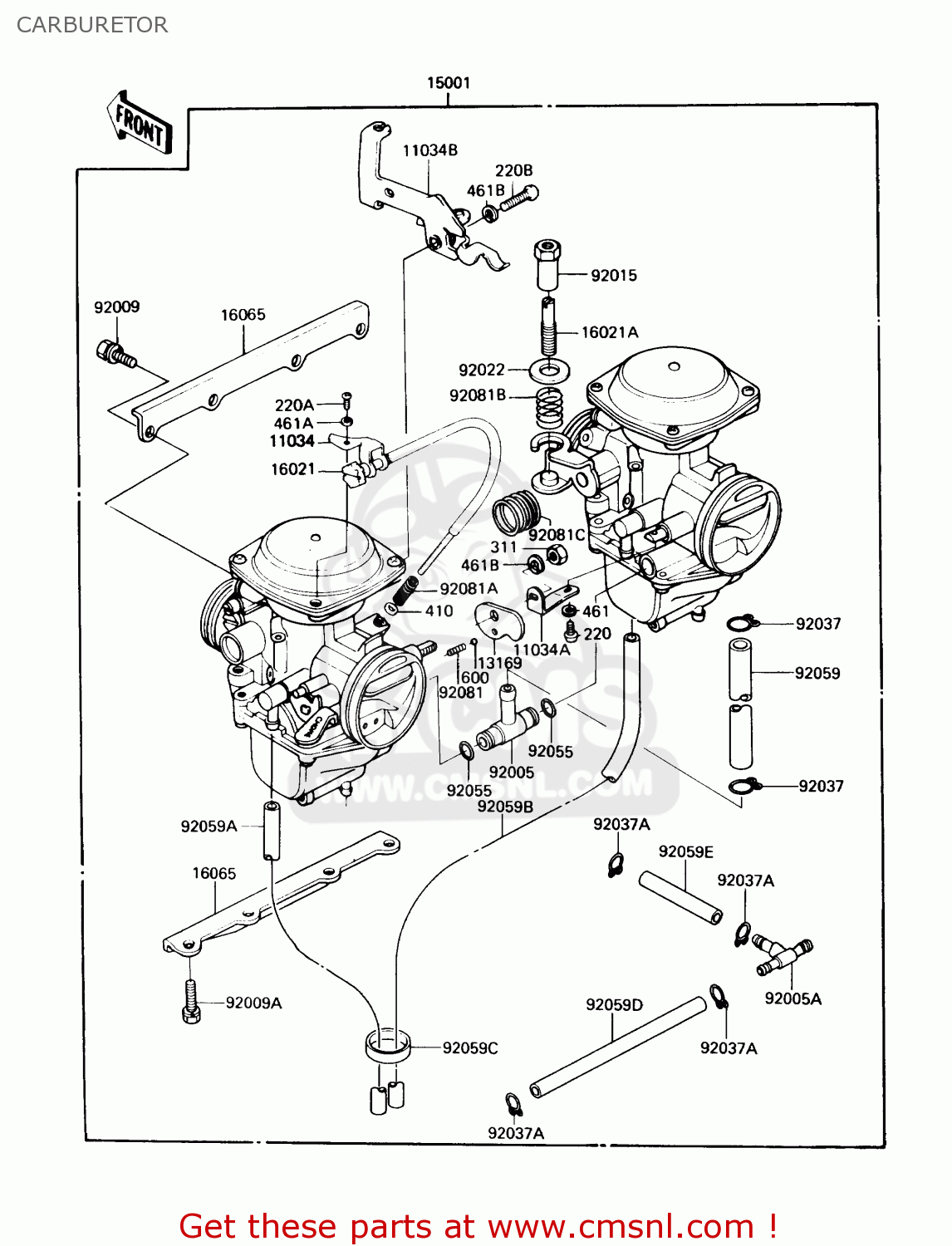

Carburetor diagram KZ305B3 LTD305 1988 USA CALIFORNIA
CARBURETOR KZ305B3 LTD305 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11034
110341202
ref: 11034
CA
BRACKET,STOP SCREW
€ 17.50
11034A
110341203
ref: 11034A
CA
BRACKET,CHOKE LEVER
€ 6.00
11034B
110341826
ref: 11034B
CA
BRACKET,THROTTLE CABL
€ 36.50
13169
131691151
ref: 13169
CA
PLATE,CHOKE LINK
€ 4.50
15001
150011355
ref: 15001
CA
CARBURETOR ASSEMBLY
€ 565.00
16021
160211007
ref: 16021
CA
SCREW-THROTTLE STOP
€ 18.50
16021A
160211027
ref: 16021A
CA
SCREW,SLOTTED
€ 12.00
16065
160651012
ref: 16065
CA
PLATE,STAY
€ 23.00
92005
920051032
ref: 92005
CA
FITTING,FUEL HOSE
€ 29.00
92005A
920051112
ref: 92005A
CA
FITTING,FUEL,T-TYPE
€ 10.00
92009
920091005
ref: 92009
CA
BOLT, HEX HEAD, 6X16
€ 2.50
92009A
920091006
ref: 92009A
CA
BOLT, HEX HEAD, 6X22
€ 3.00
92015
920151118
ref: 92015
CA
NUT,5MM
€ 4.50
92022
920221204
ref: 92022
CA
WASHER
€ 2.00
92037
920371194
ref: 92037
CA
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92037A
920371477
ref: 92037A
CA
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
CA
O RING
€ 2.50
92059
920591001
ref: 92059
CA
HOSE, FUEL INLET
€ 13.50
92059A
920591106
ref: 92059A
CA
HOSE,AIR,4.5X8X450
€ 11.50
92059B
920591107
ref: 92059B
CA
TUBE,4.5X8X360
€ 8.00
92059C
920591114
ref: 92059C
CA
TUBE,CLAMP
€ 7.50
92059D
920591377
ref: 92059D
CA
TUBE,5X9X180
€ 16.50
220
220B0306
ref: 220
CA
SCREW-PAN-CROS
€ 0.50
220A
220B0410
ref: 220A
CA
SCREW-PAN-CROS
€ 2.00
220B
220B0520
ref: 220B
CA
SCREW-PAN-CROS
€ 0.50
311
311B0500
ref: 311
CA
NUT-HEX
€ 0.50
410
410B0500
ref: 410
CA
WASHER-PLAIN-SMALL,5M
€ 0.50
461
461F0300
ref: 461
CA
WASHER-SPRING,3MM
€ 0.50
461A
461F0400
ref: 461A
CA
WASHER-SPRING,4MM
€ 0.50
461B
461F0500
ref: 461B
CA
WASHER-SPRING,5MM
€ 0.50
600
600A0400
ref: 600
CA
BALL-STEEL,1/8
€ 2.00
92059E
920591627
ref: 92059E
CA
TUBE,5X9X90
€ 7.00
92081
920811004
ref: 92081
CA
SPRING
€ 3.00
92081A
920811062
ref: 92081A
CA
SPRING,STOP SCREW
€ 4.50
92081B
920811252
ref: 92081B
CA
SPRING
€ 2.50
92081C
920811453
ref: 92081C
CA
SPRING,THROTTLE RETRN
€ 6.00
