REAR WHEEL/CHAIN
KZ305B2 LTD305 1987 USA CALIFORNIA

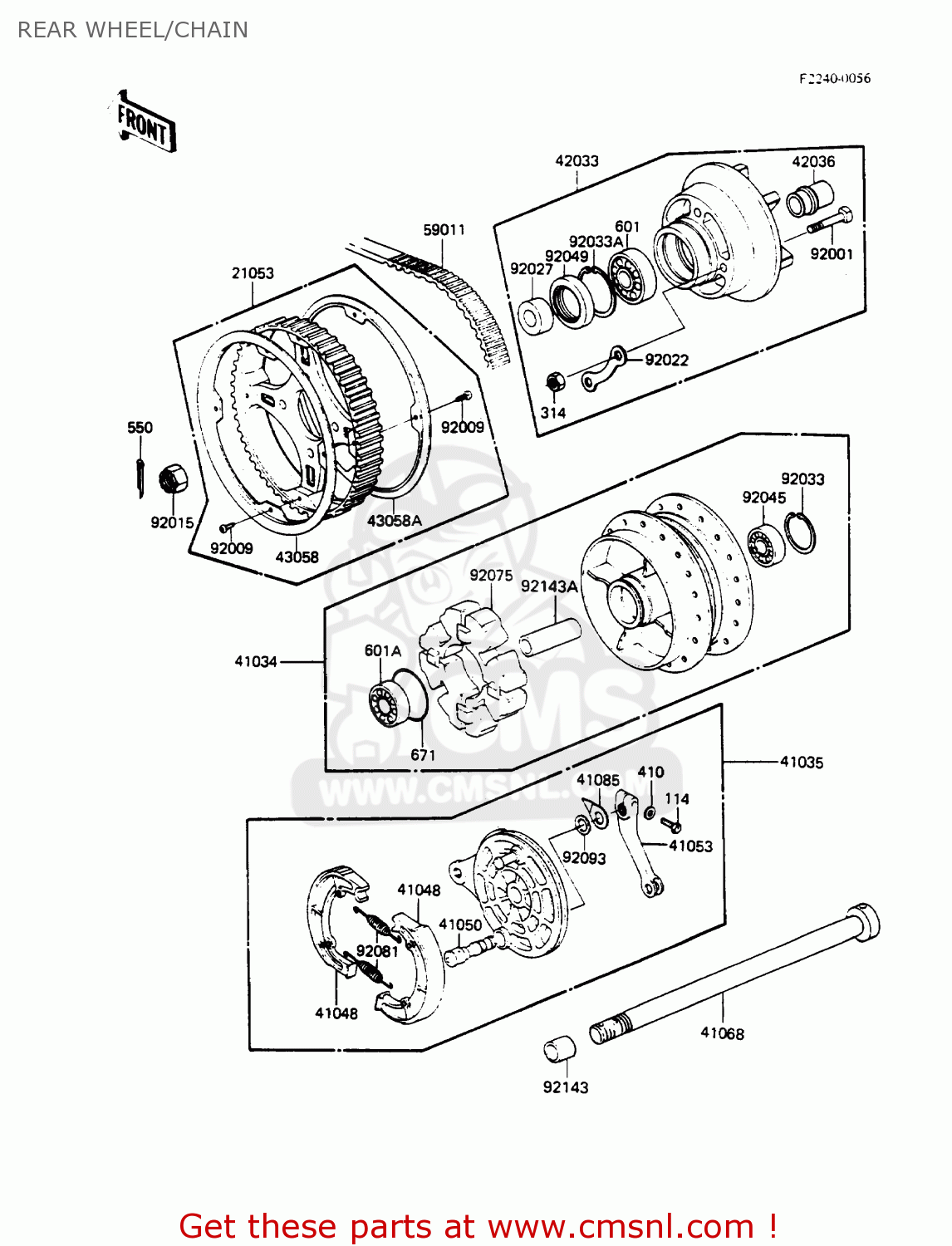

Rear wheel/chain diagram KZ305B2 LTD305 1987 USA CALIFORNIA
REAR WHEEL/CHAIN KZ305B2 LTD305 1987 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
314
314B1000
ref: 314
NUT,10MM
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6205
ref: 601
BEARING-BALL,#6205C3
€ 14.00
601A
601B6303
ref: 601A
BEARING-BALL,#6303C3
€ 24.00
671
671B2560
ref: 671
O RING,60MM
€ 1.50
21053
210531007
ref: 21053
SPROCKET-ASSY,REAR HU
€ 245.50
41034
410341159
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 303.00
41035
410351089
ref: 41035
PANEL ASSY,REAR BRAKE
€ 239.50
41048
41048020
ref: 41048
SHOE,BRAKE (MCA)
€ 26.00
41050
410501001
ref: 41050
CAM-BRAKE
€ 24.00
41053
410531001
ref: 41053
LEVER,BRAKE CAM
€ 27.50
41068
410681083
ref: 41068
AXLE,RR
€ 44.00
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
€ 10.00
42033
420331044
ref: 42033
COUPLING-ASSY,REAR HU
€ 100.50
42036
420361002
ref: 42036
SLEEVE,COUPLING
€ 27.50
43058
430581016
ref: 43058
RING,REAR HUB SPROCKE
€ 36.50
43058A
430581024
ref: 43058A
RING,REAR HUB SPROCKE
€ 36.50
59011
590111002
ref: 59011
BELT,DRIVE,121T
€ 258.00
92001
92003156
ref: 92001
BOLT,RR SPROCKET FIT
€ 6.50
92009
920091167
ref: 92009
SCREW,5X10
€ 4.50
92015
92015055
ref: 92015
NUT,16MM
€ 8.00
92022
92088005
ref: 92022
WASHER,SPROCKET LOCK
€ 4.00
92027
920271368
ref: 92027
COLLAR,REAR AXLE,LH,L
€ 20.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
€ 6.00
92045
92045034
ref: 92045
BEARING,BALL,#6303NS
€ 26.00
92049
92052006
ref: 92049
OIL SEAL WTC35527
€ 6.50
92075
920751008
ref: 92075
DAMPER,REAR HUB SHOCK
€ 53.50
92081
42020004
ref: 92081
SPRING-BRAKE SHOE
€ 5.50
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
€ 2.50
92143
920271487
ref: 92143
COLLAR
€ 8.00
92143A
921431101
ref: 92143A
COLLAR,17.2X25X61
€ 15.50
