FRAME

KZ1000P9 POLICE 1000 1990 USA

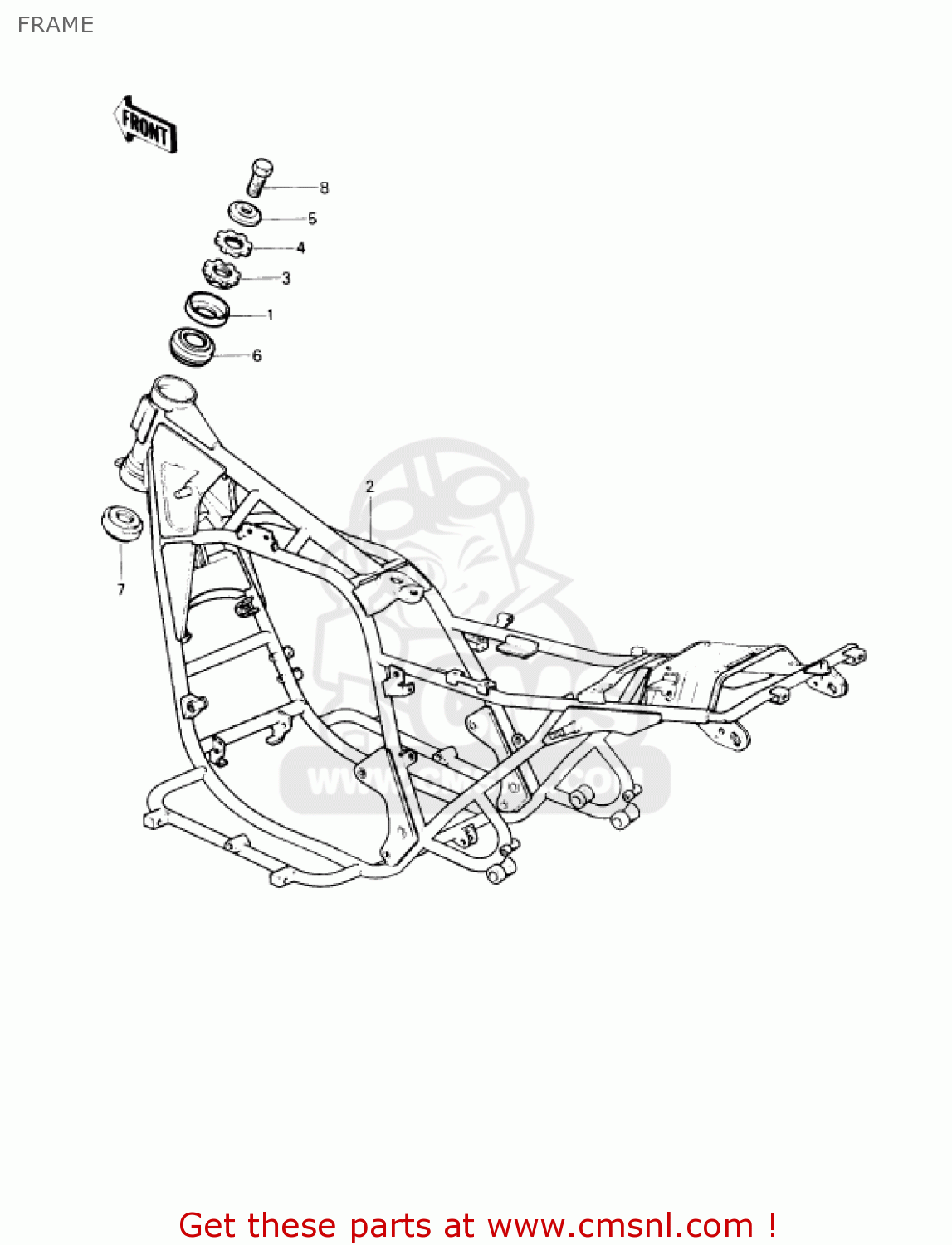

Frame diagram KZ1000P9 POLICE 1000 1990 USA

FRAME KZ1000P9 POLICE 1000 1990 USA

FRAME KZ1000P9 POLICE 1000 1990 USA

prices are in EUR

ref

part #

description

quantity

1

46098017
ref: 1

CAP,STEERING STEM

€ 4.00

2

320021473
ref: 2

FRAME

€ 1,006.50

3

920151128
ref: 3

NUT,25MM,T=10

€ 18.50

4

920151129
ref: 4

NUT,25MM,T=6

€ 14.50

5

920221229
ref: 5

WASHER,14.5X36X4.5

€ 8.00

6

92047017
ref: 6

CONE,STRNG,STEM

€ 49.50

7

921161009
ref: 7

BEARING R,HR320/28XJ

€ 41.00

8

113G1425
ref: 8

BOLT-SMALL-FINE,14X25

€ 5.50
