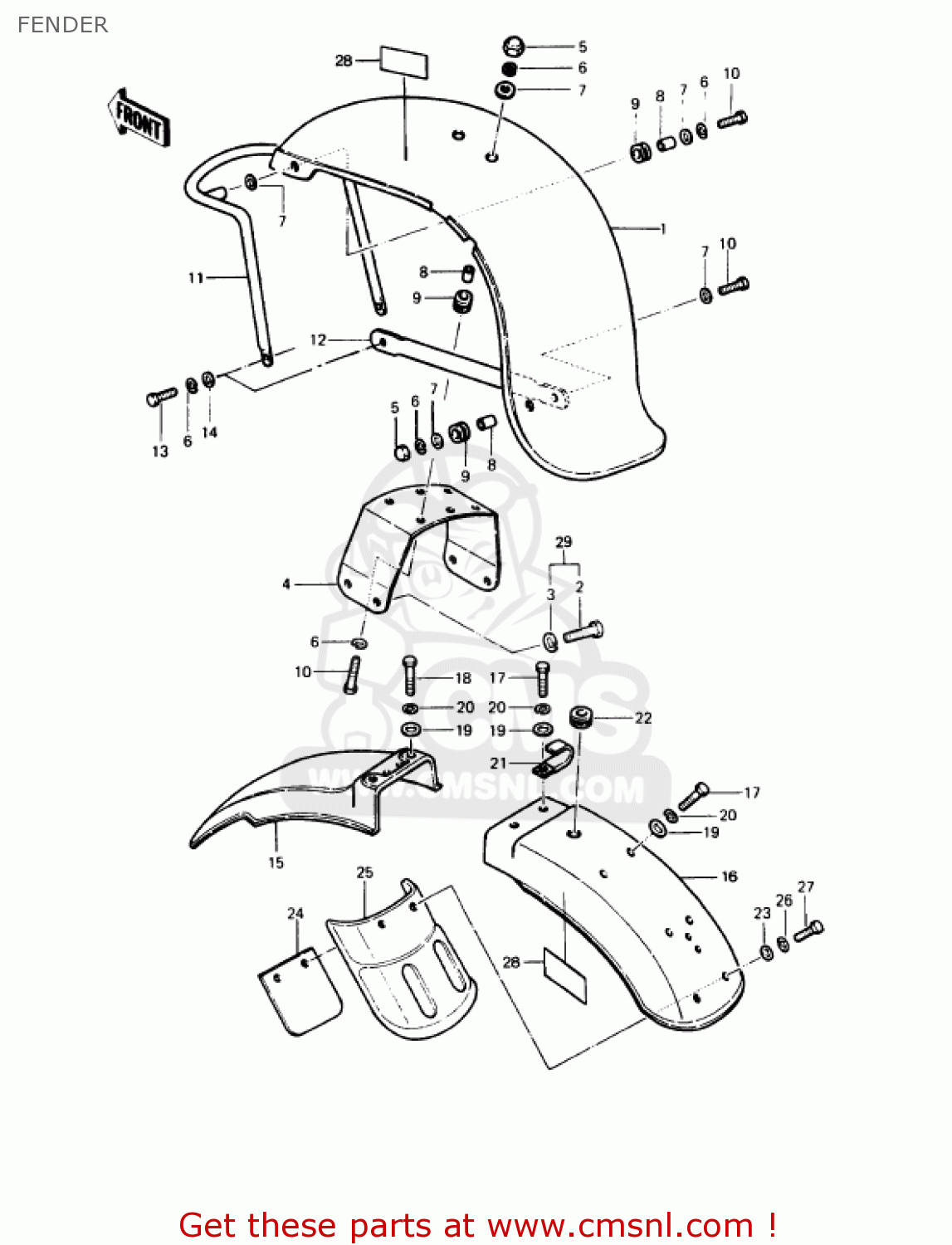

FENDER

ref

part #

description

quantity

10

110B0625
ref: 10

BOLT-HEX HEAD,6X25

€ 4.00

11

350114001
ref: 11

STAY,FR FENDER,FR

€ 112.50

12

350114004
ref: 12

STAY,FR,FENDER,RR

€ 64.50

13

110B0614
ref: 13

BOLT-HEX HEAD,6X14

€ 2.50

14

410B0600
ref: 14

WASHER-PLAIN-SMALL,6M

€ 0.50

15

350221071
ref: 15

FENDER-COMP-REAR,FR

€ 96.50

16

3502210998C
ref: 16

REAR FENDER,JET WHITE

€ 81.00

17

110B0614
ref: 17

BOLT-HEX HEAD,6X14

€ 2.50

18

110B0622
ref: 18

BOLT-HEX HEAD,6X22

€ 2.50

19

411B0600
ref: 19

WASHER-PLAIN,6MM

€ 0.50

20

461F0600
ref: 20

WASHER-SPRING,6MM

€ 0.50

21

920371069
ref: 21

CLAMP,L=60

€ 1.50

22

92071099
ref: 22

GROMMET, REAR FENDER

€ 3.00

23

411B0600
ref: 23

WASHER-PLAIN,6MM

€ 0.50

24

131694020
ref: 24

FLAP MOUNT PLATE

€ 8.00

25

350191005
ref: 25
(OPTION)

FLAP,FENDER,RR

€ 15.50

26

461F0600
ref: 26

WASHER-SPRING,6MM

€ 0.50

27

110B0614
ref: 27

BOLT-HEX HEAD,6X14

€ 2.50

28

999690849
ref: 28

LABEL-TIRE PRESSURE

€ 0.00

29

183B0820
ref: 29

BOLT-UPSET-WS-SMALL

€ 0.50

1

3500440078C
ref: 1

FENDER-FR.JET WHITE

€ 231.00

2

110B0820
ref: 2

BOLT-HEX HEAD,8X20

€ 2.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

350091001
ref: 4

BRACE,FRONT FENDER

€ 54.00

5

322N0600
ref: 5

NUT-CAP,6MM

€ 1.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

92022193
ref: 7

WASHER,6.5X20X1.6,WHI

€ 3.50

8

92027120
ref: 8

COLLAR

€ 3.00

9

92071046
ref: 9

GROMMET

€ 3.00
