STARTER MOTOR
KZ1000P24 POLICE 1000 2005 USA

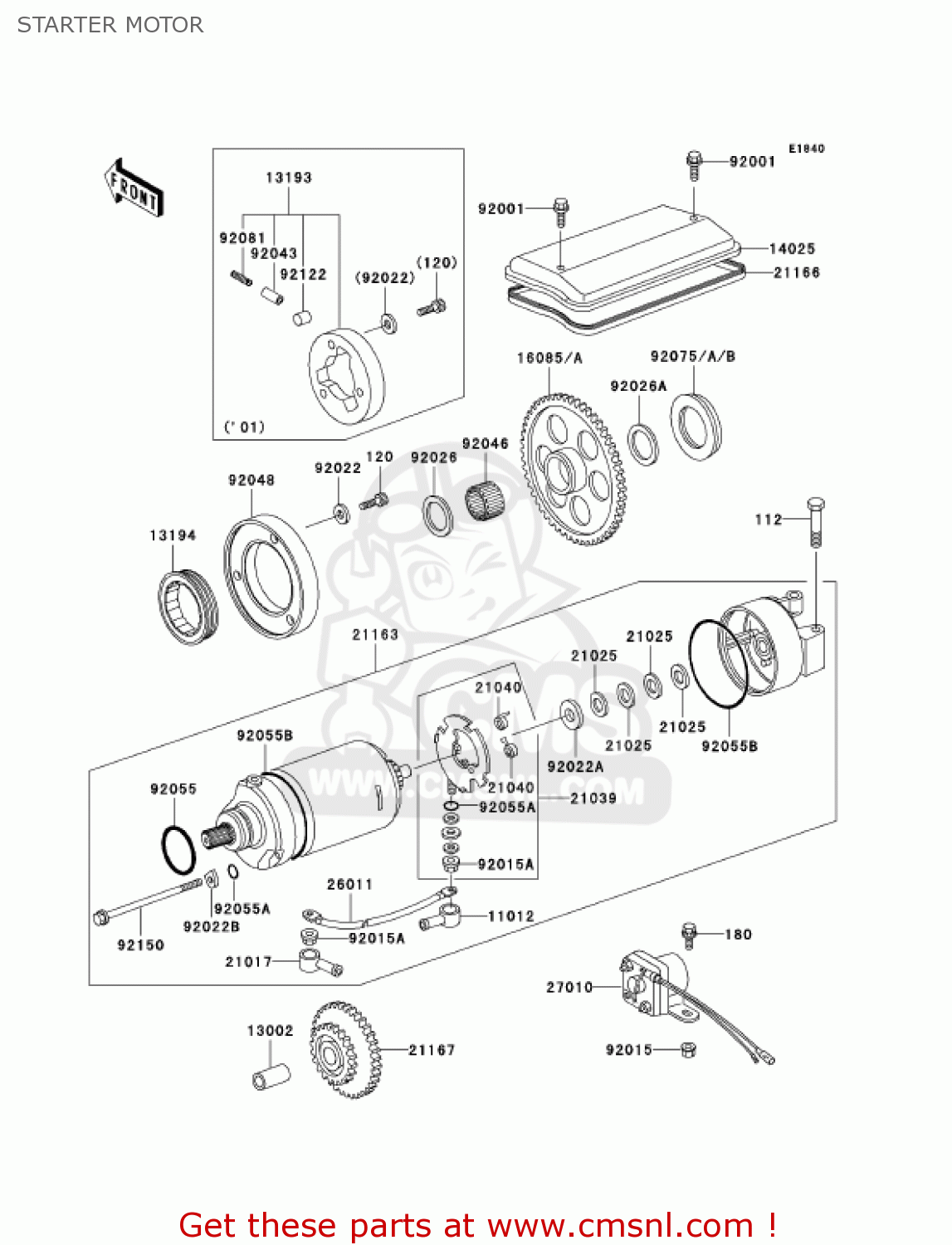

Starter motor diagram KZ1000P24 POLICE 1000 2005 USA
STARTER MOTOR KZ1000P24 POLICE 1000 2005 USA
×
prices are in EUR
ref
part #
description
quantity
112
112B0655
ref: 112
BOLT-UPSET,6X55
€ 3.00
120
120P0816
ref: 120
BOLT-SOCKET
€ 2.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
13002
13002007
ref: 13002
PIN
€ 13.00
13194
131941091
ref: 13194
CLUTCH-ONEWAY
€ 89.50
14025
140251245
ref: 14025
COVER,STARTER
€ 26.00
16085A
160851354
ref: 16085A
GEAR,STARTER CLUTCH
€ 120.00
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391063
ref: 21039
BRUSH,CARBON
€ 82.00
21040
210401057
ref: 21040
SPRING-BRUSH
€ 5.50
21163
211631143
ref: 21163
STARTER-ELECTRIC
€ 666.00
21166
21166001
ref: 21166
GASKET,STARTER COVER (NAS)
€ 23.50
21167
21167002
ref: 21167
GEAR-STARTING MOTOR
€ 89.00
26011
260111251
ref: 26011
WIRE-LEAD,STARTER MOT
€ 55.50
27010
270101047
ref: 27010
SWITCH,MAGNETIC
€ 130.00
92001
920011151
ref: 92001
BOLT,6X10
€ 3.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151476
ref: 92015A
NUT,6MM
€ 2.50
92022
920221108
ref: 92022
WASHER,8.5X13.5X2
€ 2.50
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
€ 4.00
92022B
920221458
ref: 92022B
WASHER,LOCK,T=2.0
€ 3.50
92026
920261031
ref: 92026
SPACER,(I=25,O=38)
€ 7.00
92026A
920261033
ref: 92026A
SPACER,25X34X2.0
€ 4.50
92046
920461022
ref: 92046
BEARING-NEEDLE,K25302
€ 24.50
92048
920481115
ref: 92048
RACE
€ 57.00
92055
920551276
ref: 92055
RING-O
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92075
920751129
ref: 92075
DAMPER,T=6.3
€ 18.00
92075A
920751130
ref: 92075A
DAMPER,T=7.3
€ 15.00
92075B
920751131
ref: 92075B
DAMPER,T=8.3
€ 13.50
92150
921501243
ref: 92150
BOLT
€ 6.00
