CHASSIS ELECTRICAL EQUIPMENT
KZ1000P22 POLICE 1000 2003 USA

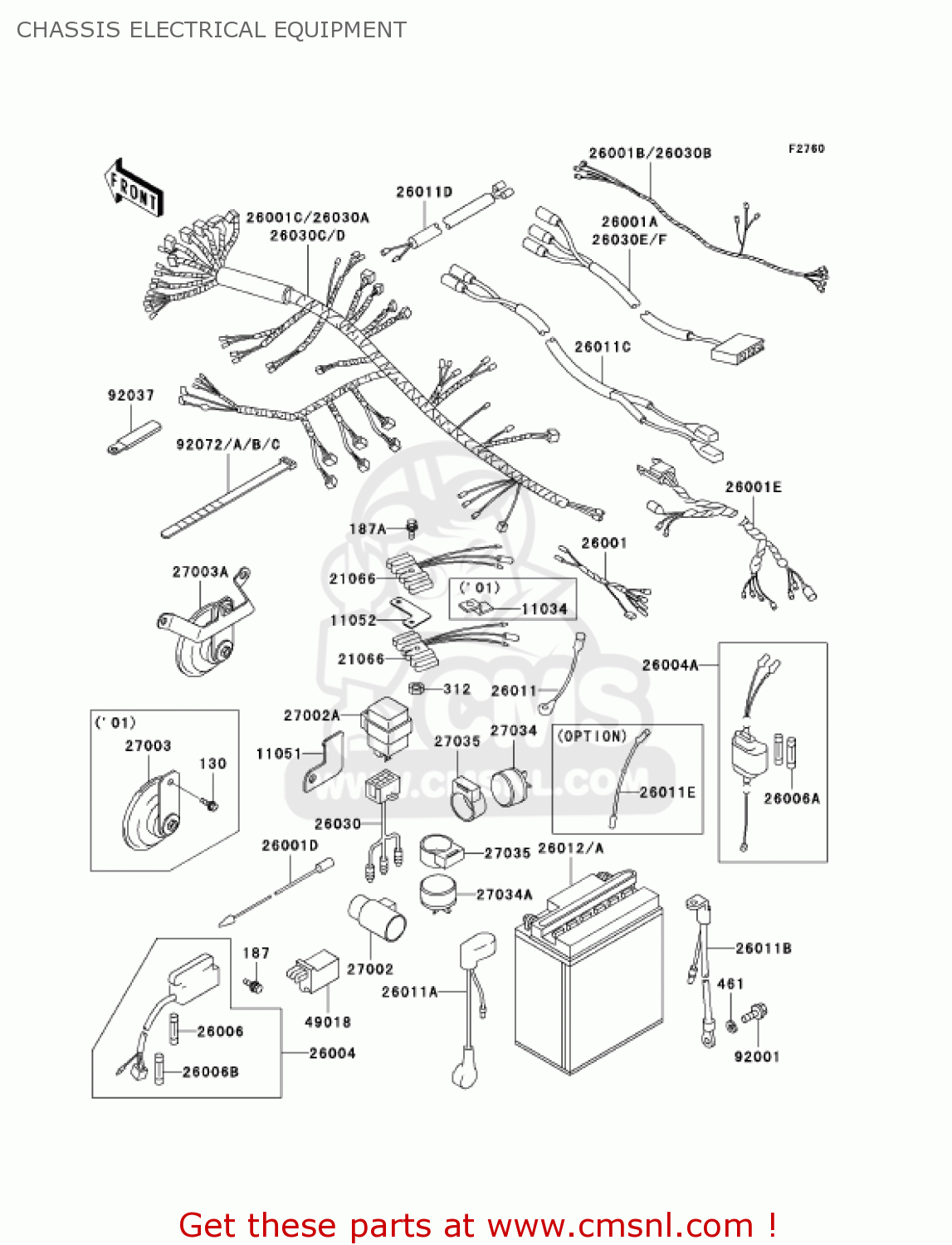

Chassis electrical equipment diagram KZ1000P22 POLICE 1000 2003 USA
CHASSIS ELECTRICAL EQUIPMENT KZ1000P22 POLICE 1000 2003 USA
×
prices are in EUR
ref
part #
description
quantity
11051
110511561
ref: 11051
BRACKET
€ 5.50
11052
110521309
ref: 11052
BRACKET,HAZARD REGULA
€ 4.50
21066
21066024
ref: 21066
REGULATOR
€ 33.00
26001
260011013
ref: 26001
TAIL LAMP WIRING HARNESS
€ 16.50
26001D
260014014
ref: 26001D
HARNESS
€ 3.00
26001E
260014020
ref: 26001E
FAIRING HARNESS
€ 45.00
26004
260041011
ref: 26004
FUSE-ASSY
€ 72.00
26004A
260041014
ref: 26004A
FUSE-ASSY,ACCESSORY
€ 47.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
260061002
ref: 26006A
FUSE,10A,L=30M/M
€ 3.00
26006B
260061005
ref: 26006B
FUSE,30A,L=25M/M
€ 3.00
26011
260111100
ref: 26011
WIRE-LEAD,ACCESSORY G
€ 7.00
26011A
260111118
ref: 26011A
WIRE-LEAD,BATTERY,(+)
€ 28.50
26011B
260111124
ref: 26011B
WIRE-LEAD,BATTERY,(-)
€ 28.50
26011C
260111148
ref: 26011C
WIRE-LEAD,TURN SIGNAL
€ 20.50
26011D
260111489
ref: 26011D
FRONT BRAKE SWITCH WIRE LEAD
€ 20.50
26011E
260114010
ref: 26011E
(OPTION)
WIRE-LEAD,PRST LAMP
€ 3.50
26012A
260123728
ref: 26012A
YTX20-BS,12V,18AH
€ 163.50
26030
260301724
ref: 26030
HARNESS
€ 47.00
26030B
260301948
ref: 26030B
HARNESS,SCREW
€ 27.50
26030C
260301954
ref: 26030C
HARNESS,MAIN
€ 216.50
26030E
260301955
ref: 26030E
HARNESS,TAIL
€ 18.00
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27002A
270021075
ref: 27002A
RELAY-ASSY,SIGNAL LAM
€ 55.00
27003A
270031427
ref: 27003A
HORN
€ 50.50
27034
27034003
ref: 27034
NO PRODUCT DESCRIPTION
€ 54.50
187
187B0622
ref: 187
BOLT-UPSET-WSP
€ 2.50
187A
187B0635
ref: 187A
BOLT-UPSET-WSP
€ 0.50
312
312B0600
ref: 312
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
27034A
27034005
ref: 27034A
HAZARD RELAY
€ 49.50
27035
27035001
ref: 27035
HORN RELAY RUBBER
€ 13.50
49018
490181052
ref: 49018
DIODE
€ 35.50
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
92072C
920721195
ref: 92072C
BAND,L=185
€ 1.00
