FRONT FORK (P20)
KZ1000P20 POLICE 1000 2001 USA

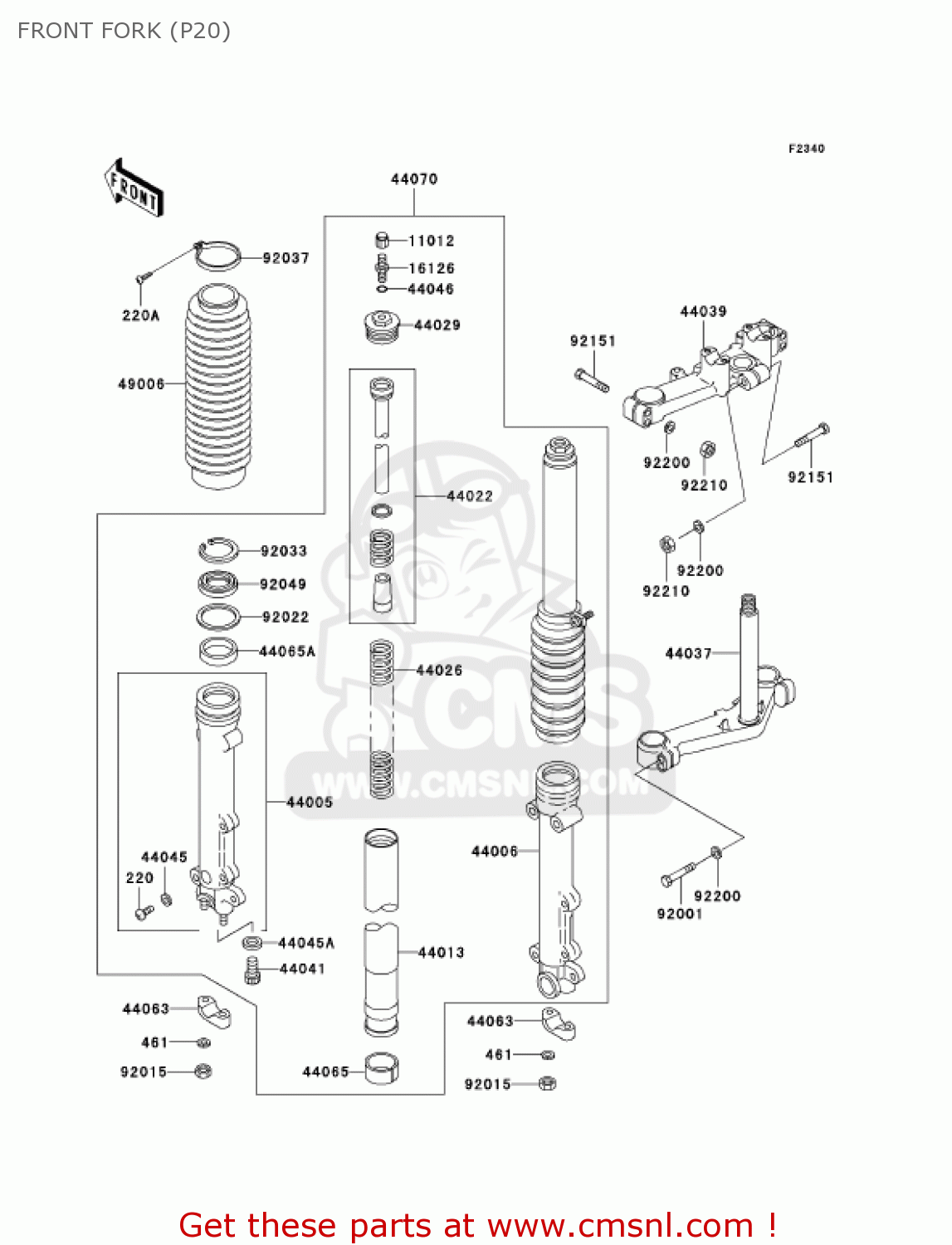

Front fork (p20) diagram KZ1000P20 POLICE 1000 2001 USA
FRONT FORK (P20) KZ1000P20 POLICE 1000 2001 USA
×
prices are in EUR
ref
part #
description
quantity
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
220B0420
ref: 220A
SCREW-PAN-CROS
€ 2.00
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
11012
110121241
ref: 11012
CAP,AIR VALVE
€ 11.00
16126
161261046
ref: 16126
VALVE,AIR,FRONT
€ 22.00
44005
440051332
ref: 44005
FORK OUTER PIPE,LH
€ 258.00
44006
440061328
ref: 44006
PIPE-RIGHT FORK OUTER
€ 418.00
44013
440134002
ref: 44013
PIPE-FORK INNER
€ 213.50
44022
440221083
ref: 44022
FORK CYLINDER
€ 84.00
44026
440261312
ref: 44026
FRONT FORK SPRING
€ 57.00
44029
440294001
ref: 44029
FORK SPRING,SEAT
€ 35.50
44037
440374004
ref: 44037
HOLDER-FORK UNDER
€ 430.50
44039
440394007
ref: 44039
HOLDER-FORK UPPER
€ 309.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44045A
44045057
ref: 44045A
GASKET (NAS)
€ 3.00
44046
44046017
ref: 44046
'O' RING-FORK TOP
€ 5.00
44063
44063011
ref: 44063
HOLDER-FRONT AXLE
€ 27.00
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
44065A
440651091
ref: 44065A
BUSHING-FRONT FORK,OU
€ 17.00
44070
440705139
ref: 44070
DAMPER ASSEMBLY
€ 916.50
49006
490061079
ref: 49006
BOOT,FORK,BLACK
€ 65.00
92001
920011700
ref: 92001
BOLT,8X38
€ 5.50
92015
920151390
ref: 92015
NUT,LOCK,8MM
€ 3.50
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371024
ref: 92037
BAND, BOOT
€ 6.50
92049
920491178
ref: 92049
SEAL-OIL,FORK
€ 18.50
92151
921511978
ref: 92151
BOLT,8X55
€ 6.50
92200
922001577
ref: 92200
WASHER,SPRING,8MM
€ 1.00
92210
922101305
ref: 92210
NUT,8MM
€ 1.00
