TURN SIGNALS
KZ1000P19 KE1000 POLICE 2000 USA

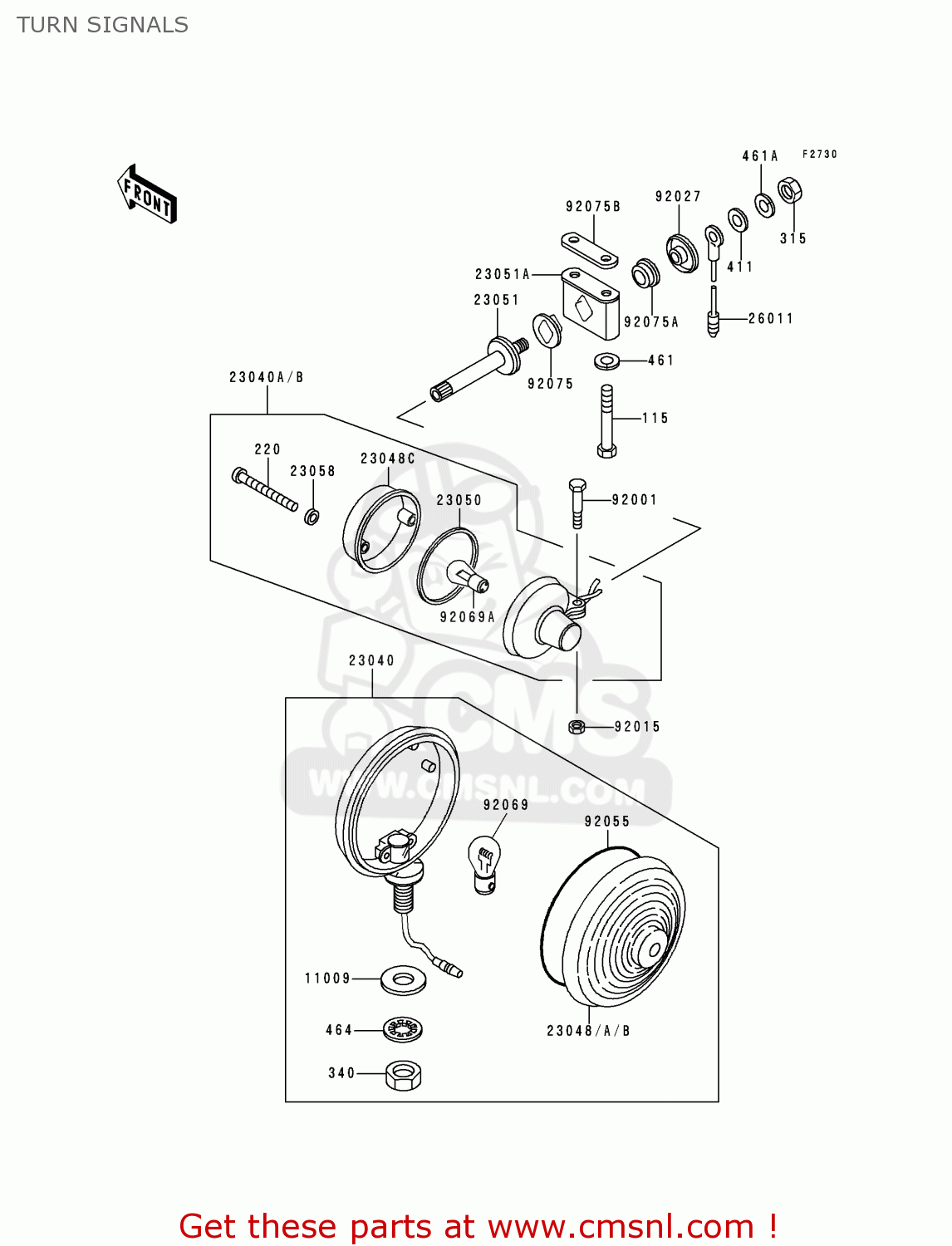

Turn signals diagram KZ1000P19 KE1000 POLICE 2000 USA
TURN SIGNALS KZ1000P19 KE1000 POLICE 2000 USA
×
prices are in EUR
ref
part #
description
quantity
115
115B0855
ref: 115
BOLT-HEX,HEAD,8X55
€ 4.50
220
220R0435
ref: 220
SCREW-PAN-CROS
€ 2.50
315
315B1000
ref: 315
NUT,10MM
€ 0.50
340
340BA1600
ref: 340
NUT
€ 1.00
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
461A
461F1000
ref: 461A
WASHER-SPRING,10MM
€ 0.50
464
464H1200
ref: 464
WASHER-TOOTHED,12MM
€ 2.00
11009
110091291
ref: 11009
OIL PIPE BANJO GASKET
€ 3.00
23040
23040055
ref: 23040
LAMP ASSY, TURN, REAR
€ 100.50
23040A
230401005
ref: 23040A
LAMP-SIGNAL,RH
€ 52.00
23040B
230401006
ref: 23040B
TURN SIGNAL LAMP ASSEMBLY,LH
€ 52.00
23048
23048018
ref: 23048
LENS,REAR TURN SIGNAL
€ 13.00
23048A
23048019
ref: 23048A
LENS,RED REAR TS OPT
€ 11.00
23048B
23048020
ref: 23048B
REAR TURN SIGNAL LENS,BLUE,OPTIONAL
€ 28.50
23048C
230481024
ref: 23048C
LENS-SIGNAL LAMP,6.14
€ 12.50
23050
23050002
ref: 23050
GASKET,TURN SIGNAL LA (NAS)
€ 3.00
23051
230511014
ref: 23051
BRACKET-SIGNAL LAMP
€ 29.00
23051A
230514002
ref: 23051A
TURN SIGNAL BRACKET
€ 23.50
23058
23058002
ref: 23058
WASHER,PLAIN,4MM
€ 2.00
26011
26011095
ref: 26011
WIRE-LEAD,L=285
€ 8.00
92001
920011746
ref: 92001
BOLT,6X30,CR PLATED
€ 1.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92027
920271025
ref: 92027
COLLAR, TURN SIG FITT
€ 5.50
92055
92055103
ref: 92055
O-RING
€ 7.50
92069
92069055
ref: 92069
BULB 12V 32CP
€ 4.50
92069A
92069060
ref: 92069A
BULB.12V 23/8W
€ 5.00
92075
920751014
ref: 92075
DAMPER,TURN SIGNAL FI
€ 6.50
92075A
92075158
ref: 92075A
DAMPER
€ 3.50
92075B
920754022
ref: 92075B
DAMPER
€ 1.50
