CHASSIS ELECTRICAL EQUIPMENT

KZ1000P16 KE1000 POLICE 1997 USA

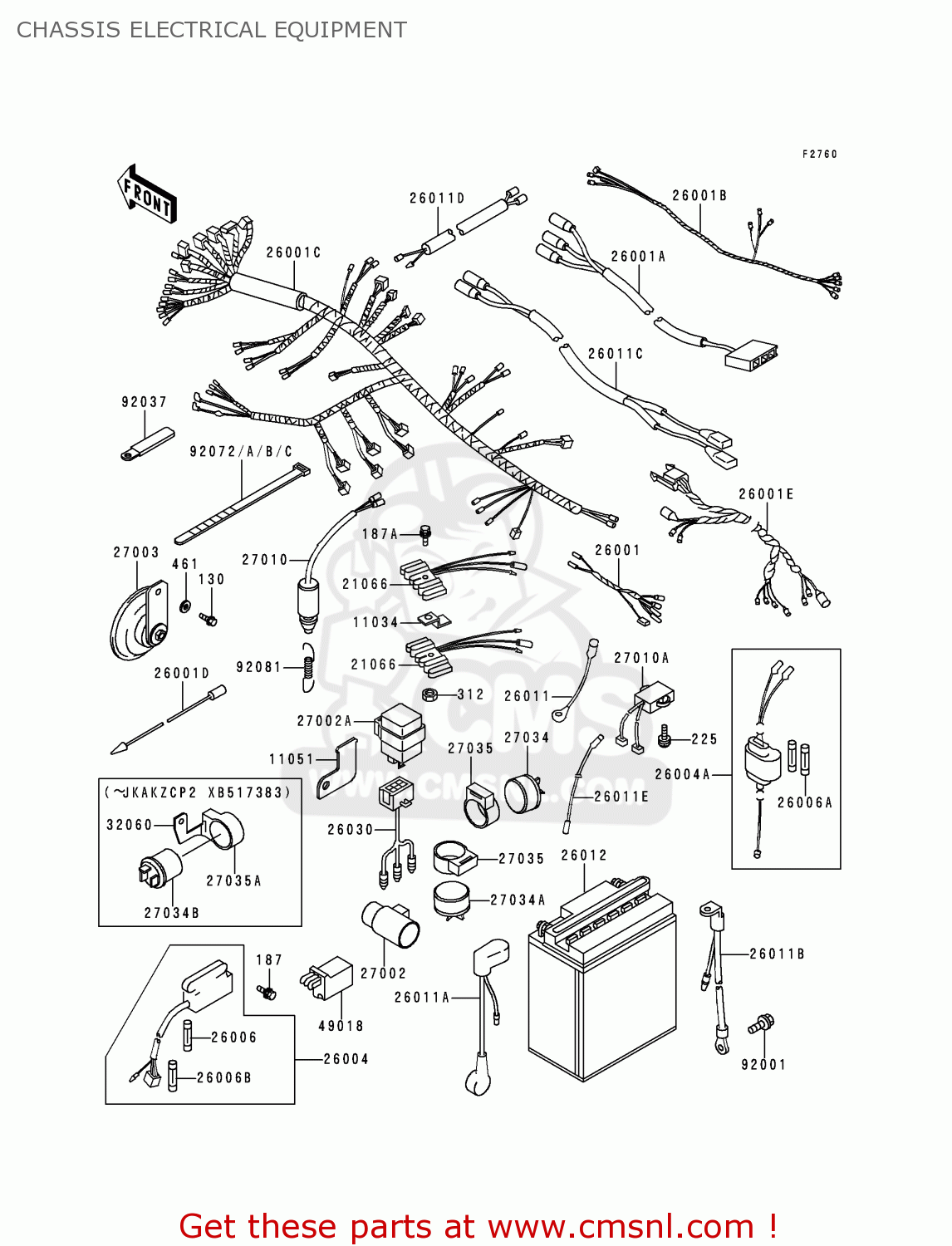

Chassis electrical equipment diagram KZ1000P16 KE1000 POLICE 1997 USA

CHASSIS ELECTRICAL EQUIPMENT KZ1000P16 KE1000 POLICE 1997 USA
CHASSIS ELECTRICAL EQUIPMENT KZ1000P16 KE1000 POLICE 1997 USA
CHASSIS ELECTRICAL EQUIPMENT KZ1000P16 KE1000 POLICE 1997 USA
prices are in EUR
ref
part #
description
quantity
11034
110344163
ref: 11034
HAZARD REGULATOR BRACKET
€ 4.00
21066
21066024
ref: 21066
REGULATOR
21066024
€ 33.00
26001
260011013
ref: 26001
TAIL LAMP WIRING HARNESS
€ 16.50
26001A
260011343
ref: 26001A
TAIL HARNESS
€ 18.00
26001B
260011344
ref: 26001B
SIREN HARNESS
€ 26.00
26001C
260011805
ref: 26001C
HARNESS,MAIN
€ 282.50
26001D
260014014
ref: 26001D
HARNESS
€ 3.00
26001E
260014020
ref: 26001E
FAIRING HARNESS
€ 45.00
26004
260041011
ref: 26004
FUSE-ASSY
260041011
€ 72.00
26004A
260041014
ref: 26004A
FUSE-ASSY,ACCESSORY
260041014
€ 47.00
26006
26006003
ref: 26006
FUSE 10A
26006003
€ 3.00
26006A
260061002
ref: 26006A
FUSE,10A,L=30M/M
260061002
€ 3.00
26006B
260061005
ref: 26006B
FUSE,30A,L=25M/M
260061005
€ 3.00
26011
260111100
ref: 26011
WIRE-LEAD,ACCESSORY G
260111100
€ 7.00
26011A
260111118
ref: 26011A
WIRE-LEAD,BATTERY,(+)
260111118
€ 28.50
26011B
260111124
ref: 26011B
WIRE-LEAD,BATTERY,(-)
260111124
€ 28.50
26011C
260111148
ref: 26011C
WIRE-LEAD,TURN SIGNAL
€ 20.50
26011D
260111489
ref: 26011D
FRONT BRAKE SWITCH WIRE LEAD
€ 20.50
26011E
260114010
ref: 26011E
WIRE-LEAD,PRST LAMP
€ 3.50
26012
260121236
ref: 26012
BATTERY,YUA,YB18L-A
€ 44.00
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27003
270031047
ref: 27003
HORN
€ 47.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
270101019
€ 23.00
27010A
270101048
ref: 27010A
SWITCH,TURN SIGNAL OP
€ 156.00
27034
27034003
ref: 27034
NO PRODUCT DESCRIPTION
€ 54.50
27034A
27034005
ref: 27034A
HAZARD RELAY
27034005
€ 49.50
27034B
270341001
ref: 27034B
ALTERNATING FLASH RELAY,OPTIONAL
270341001
€ 75.00
27035
27035001
ref: 27035
HORN RELAY RUBBER
€ 13.50
27035A
27035001
ref: 27035A
HORN RELAY RUBBER
€ 13.50
32060
32060014
ref: 32060
BRACKET,OUTAGE SWITCH
32060014
€ 7.50
49018
490181052
ref: 49018
DIODE
490181052
€ 35.50
130
130D0814
ref: 130
BOLT-FLANGED
130D0814
€ 0.50
187
187B0622
ref: 187
BOLT-UPSET-WSP
€ 2.50
187A
187B0635
ref: 187A
BOLT-UPSET-WSP
€ 0.50
225
225B0620
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
312
312B0600
ref: 312
NUT,6MM
312B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
92001137
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92072
92072031
ref: 92072
BAND,MIDDLE
92072031
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
92072032
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
92072056
€ 3.00
92072C
920721195
ref: 92072C
BAND,L=185
920721195
€ 1.00
92081
920811366
ref: 92081
SPRING,BRAKE SWITCH
920811366
€ 4.50
