HEADLIGHT(S)
KZ1000P15 KE1000 POLICE 1996 USA

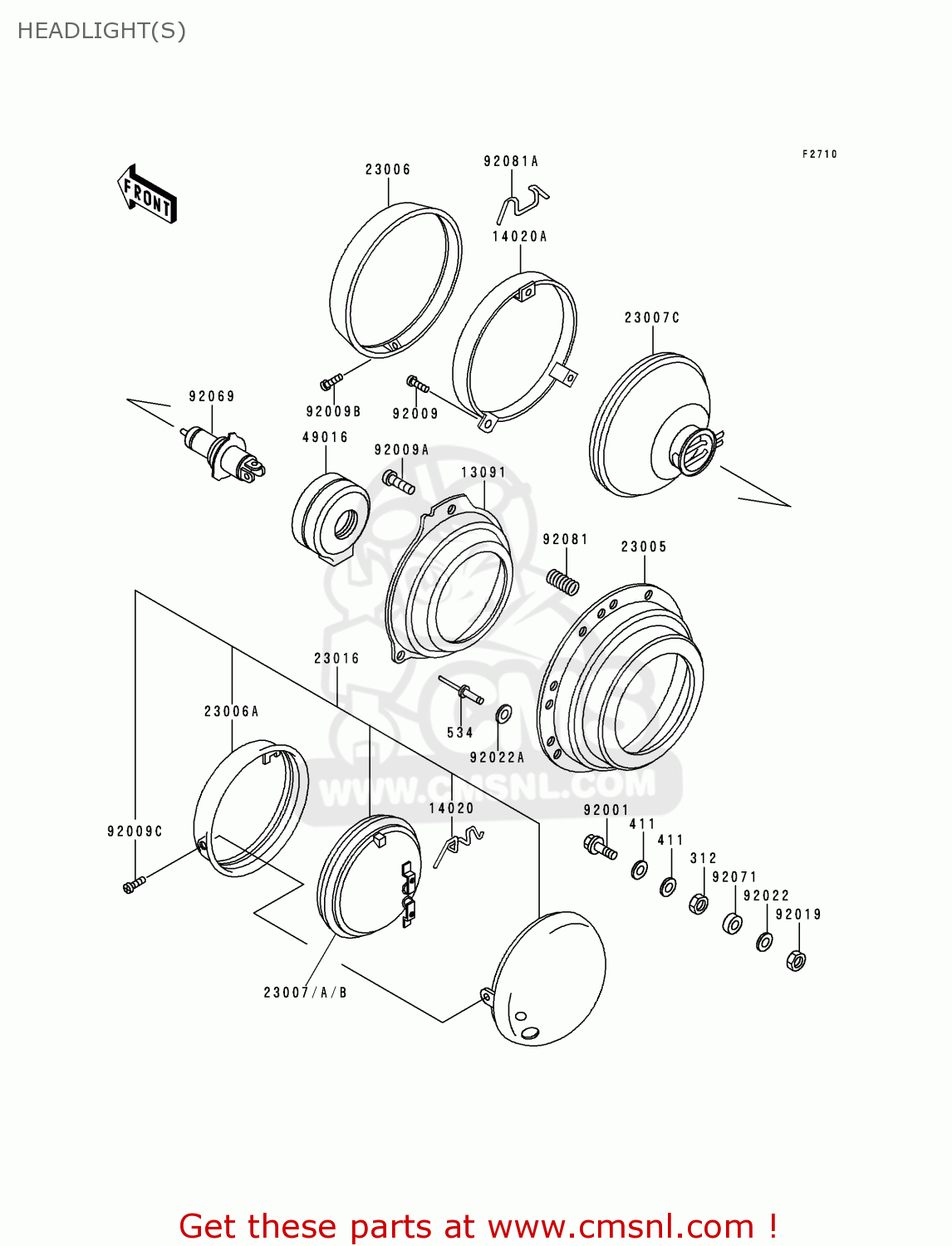

Headlight(s) diagram KZ1000P15 KE1000 POLICE 1996 USA
HEADLIGHT(S) KZ1000P15 KE1000 POLICE 1996 USA
×
prices are in EUR
ref
part #
description
quantity
312
312B0600
ref: 312
NUT,6MM
€ 0.50
411
411B0800
ref: 411
WASHER-PLAIN,8MM
€ 0.50
534
534YW0608
ref: 534
RIVET
€ 0.50
13091
130914007
ref: 13091
HOLDER
€ 16.00
14020
140201096
ref: 14020
RETAINER,CLIP
€ 2.50
14020A
140204002
ref: 14020A
RETAINER
€ 9.00
23005
230054003
ref: 23005
HEADLAMP BODY
€ 9.50
23006
230064002
ref: 23006
RIM,HEAD LAMP
€ 44.00
23006A
230064004
ref: 23006A
RIM. PURSUIT LAMP
€ 33.50
23007
230071001
ref: 23007
SEAL BEAM, PRSUT, RED
€ 45.50
23007A
230071002
ref: 23007A
PURSUIT SEALED BEAM,BLUE
€ 27.50
23007B
230071003
ref: 23007B
SEAL BEAM,PRSUT,AMBER
€ 55.00
23007C
230071009
ref: 23007C
LENS UNIT, HEAD LAMP
€ 127.00
23016
230164004
ref: 23016
LAMP ASSY PURSUIT
€ 165.50
49016
490161016
ref: 49016
COVER-SEAL
€ 16.00
92001
920014015
ref: 92001
BOLT,PURSUIT LIGHT
€ 0.50
92009
920094007
ref: 92009
SCREW,PAN HEAD
€ 1.00
92009A
920094008
ref: 92009A
FOCUS ADJUSTING SCREW
€ 1.00
92009B
920094009
ref: 92009B
SCREW,PAN HEAD,4X14
€ 1.00
92009C
920094011
ref: 92009C
LAMP RIM SCREW,4X8
€ 1.00
92019
92019008
ref: 92019
NUT-LOCK,6MM
€ 3.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
920223539
ref: 92022A
WASHER
€ 0.50
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92071
92071056
ref: 92071
GROMMET
€ 2.50
92081
920814014
ref: 92081
SPRING
€ 2.50
92081A
920814015
ref: 92081A
SPRING CLIP
€ 4.00
