CRANKCASE
KZ1000P11 POLICE 1000 1992 USA

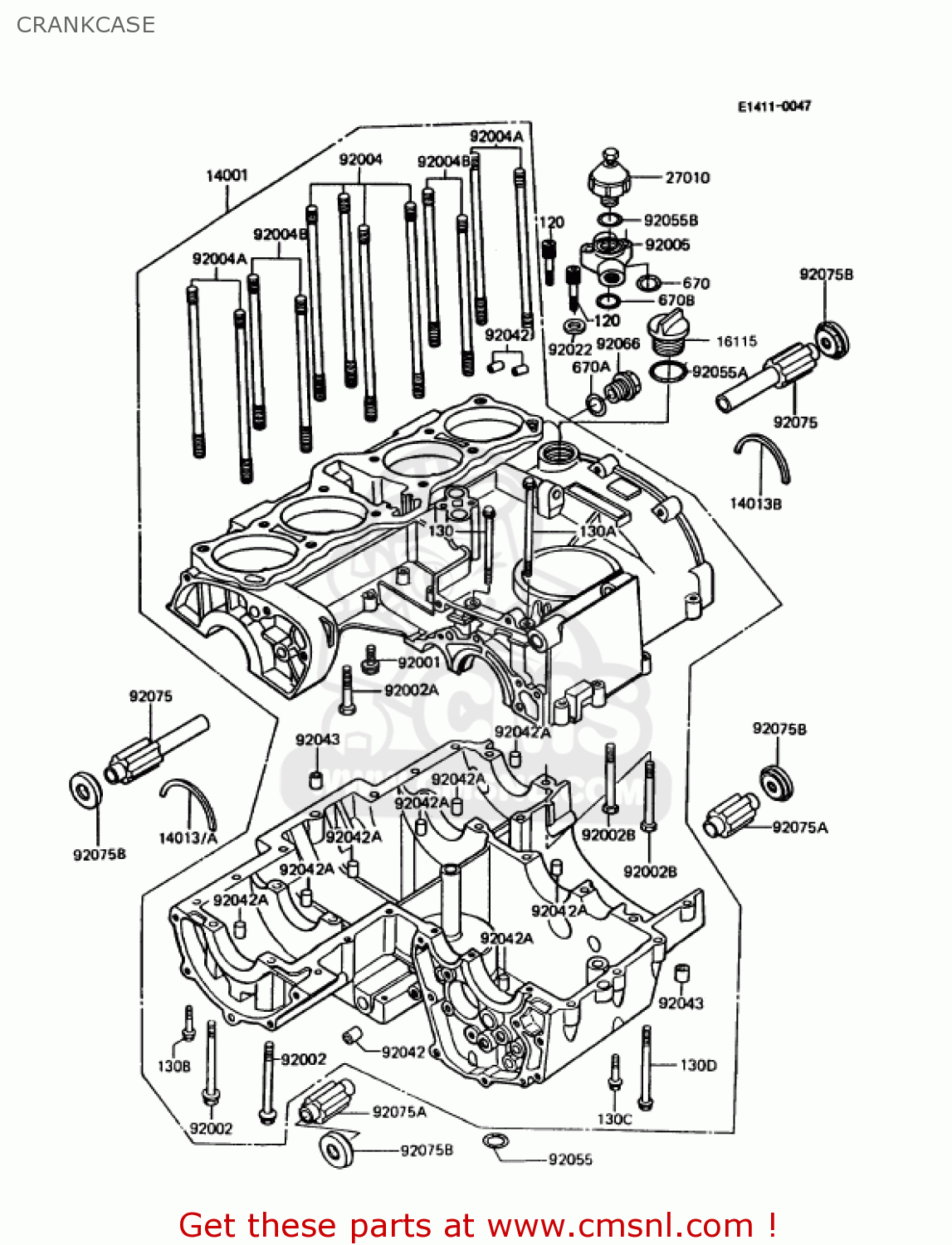

Crankcase diagram KZ1000P11 POLICE 1000 1992 USA
CRANKCASE KZ1000P11 POLICE 1000 1992 USA
×
prices are in EUR
ref
part #
description
quantity
14001
140015099
ref: 14001
SET-CRANKCASE,SILVER
€ 2,315.50
14013
14013013
ref: 14013
RING-POSITION,T=1.90
€ 7.50
14013A
140131004
ref: 14013A
RING-POSITION,CRANK
€ 3.00
14013B
140131005
ref: 14013B
RING-POSITION
€ 3.00
16115
161151062
ref: 16115
CAP-OIL FILLER
€ 13.50
27010
270101013
ref: 27010
SWITCH,OIL PRESSURE
€ 28.50
92001
920011349
ref: 92001
BOLT,FLANGED,8X16
€ 3.50
92002
920021077
ref: 92002
BOLT,8X95
€ 7.50
92002A
920021329
ref: 92002A
BOLT,8X72
€ 6.50
92002B
920021649
ref: 92002B
BOLT
€ 4.50
92004
920041002
ref: 92004
STUD, 10X167
€ 10.50
92004A
920041003
ref: 92004A
STUD, 10X158
€ 10.50
92004B
920041004
ref: 92004B
STUD, 10X133
€ 11.50
92005
920051030
ref: 92005
FITTING,OIL PRESSURE
€ 45.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
€ 2.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92042A
92042016
ref: 92042A
PIN,DOWEL,6X16
€ 3.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
€ 0.50
92055
92055048
ref: 92055
RING-O,OD=18
€ 3.00
92055A
92055049
ref: 92055A
'0'RING,31MM
€ 2.50
92055B
92055055
ref: 92055B
'0'RING
€ 2.50
92066
92066021
ref: 92066
PLUG,14X12
€ 15.00
92075
920751272
ref: 92075
DAMPER,ENGINE MOUNT,U
€ 32.50
92075A
920751273
ref: 92075A
DAMPER,ENGINE MOUNT,L
€ 19.00
92075B
920751274
ref: 92075B
DAMPER,ENG MOUNT,SIDE
€ 11.00
120
120Z0835
ref: 120
BOLT-SOCKET
€ 2.50
130
130Y06100
ref: 130
BOLT-FLANGED
€ 4.50
130A
130Y06115
ref: 130A
BOLT-FLANGED
€ 3.50
130B
130Y0640
ref: 130B
BOLT-FLANGED
€ 3.00
130C
130Y0655
ref: 130C
BOLT-FLANGED
€ 3.00
130D
130Y0695
ref: 130D
BOLT-FLANGED
€ 3.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
670A
670B2015
ref: 670A
O RING,15MM
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
€ 1.00
