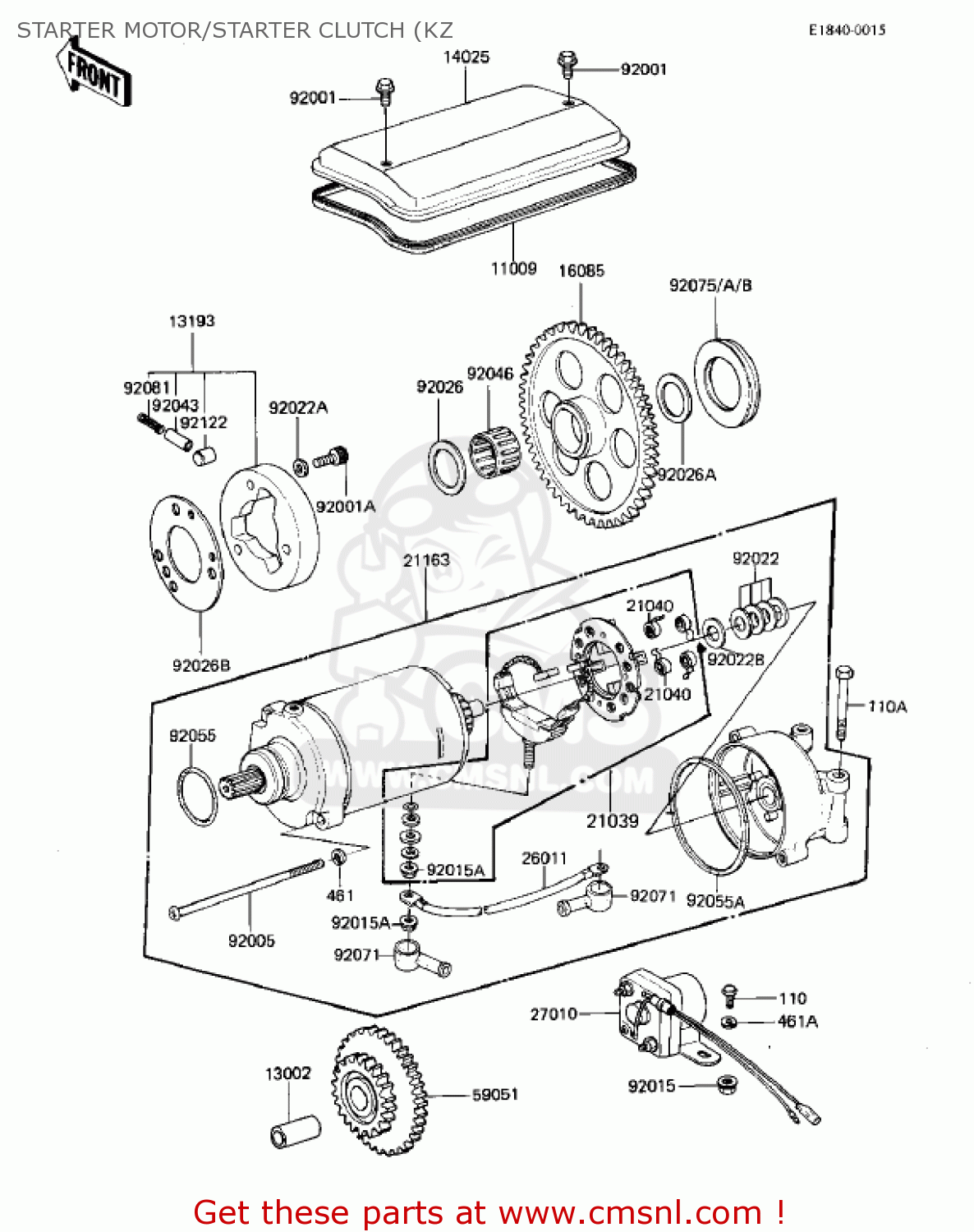

STARTER MOTOR/STARTER CLUTCH (KZ

ref

part #

description

quantity

11009

21166001
ref: 11009

GASKET,STARTER COVER (NAS)

€ 23.50

13002

13002007
ref: 13002

PIN

€ 13.00

13193

131931006
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 150.50

14025

140251245
ref: 14025

COVER,STARTER

€ 26.00

16085

160851012
ref: 16085

GEAR,STARTER CLUTCH

€ 180.50

21039

210391005
ref: 21039

BRUSH,CARBON

€ 112.50

21040

210401002
ref: 21040

SPRING-BRUSH

€ 5.50

21163

211631016
ref: 21163

STARTER-ELECTRIC

€ 666.00

26011

260111135
ref: 26011

WIRE-LEAD,STARTER MOT

€ 51.50

27010

270101047
ref: 27010

SWITCH,MAGNETIC

€ 130.00

59051

21167002
ref: 59051

GEAR-STARTING MOTOR

€ 89.00

92001

920011151
ref: 92001

BOLT,6X10

€ 3.00

92001A

92003104
ref: 92001A

BOLT-HEX HEAD,8X16

€ 2.50

92009

21015005
ref: 92009

SCREW-PAN HEAD,6X110

€ 5.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

920151195
ref: 92015A

NUT,FLANGED,6MM

€ 1.50

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221108
ref: 92022A

WASHER,8.5X13.5X2

€ 2.50

92022B

920221132
ref: 92022B

WASHER,9.1X18X0.8

€ 4.00

92026

920261031
ref: 92026

SPACER,(I=25,O=38)

€ 7.00

92026A

920261033
ref: 92026A

SPACER,25X34X2.0

€ 4.50

92026B

92026112
ref: 92026B

SPACER,45X79.5X0.5 (NAS)

€ 7.50

92043

92043087
ref: 92043

PIN

€ 8.00

92046

920461022
ref: 92046

BEARING-NEEDLE,K25302

€ 24.50

92055

21027004
ref: 92055

ORING-STARTING MOTR

€ 6.50

92055A

920551086
ref: 92055A

O RING,64MM

€ 6.50

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92075

920751129
ref: 92075

DAMPER,T=6.3

€ 18.00

92075A

920751130
ref: 92075A

DAMPER,T=7.3

€ 15.00

92075B

920751131
ref: 92075B

DAMPER,T=8.3

€ 13.50

92081

92081110
ref: 92081

SPRING

€ 3.00

92122

92122001
ref: 92122

ROLLER,15X14.4

€ 7.50

110

110B0612
ref: 110

BOLT-HEX HEAD,6X12

€ 2.50

110A

110B0655
ref: 110A

BOLT-HEX HEAD,6X55

€ 3.00

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50
