CARBURETOR ASSY (KZ1000-J1/J2)
KZ1000J3 1983 USA CANADA

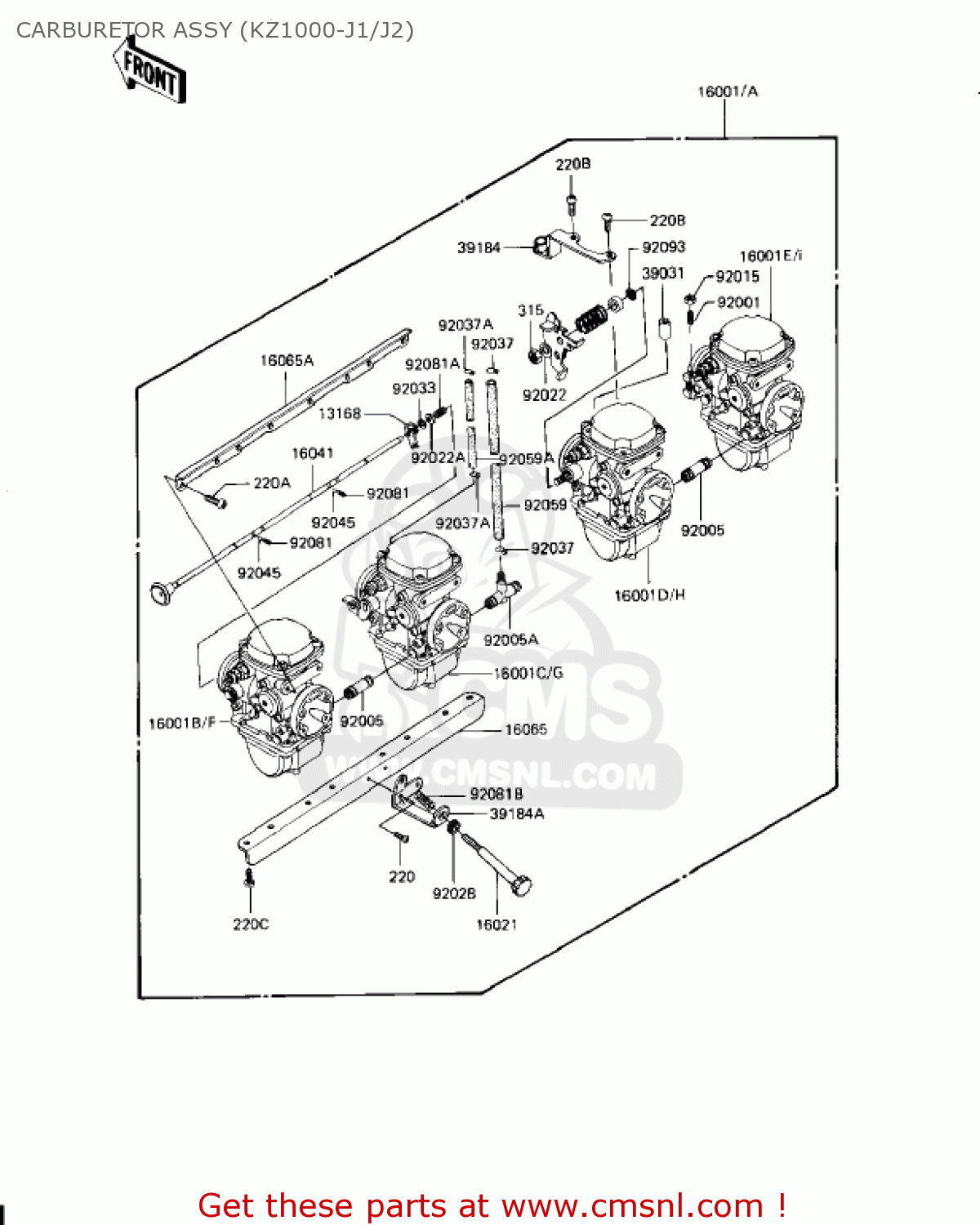

Carburetor assy (kz1000-j1/j2) diagram KZ1000J3 1983 USA CANADA
CARBURETOR ASSY (KZ1000-J1/J2) KZ1000J3 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13168
131681091
ref: 13168
LEVER,CHOKE
€ 6.00
16001
160011356
ref: 16001
US
CARBURETOR
€ 932.50
16001A
160011357
ref: 16001A
CN
CARBURETOR
€ 1,202.00
16001B
160011428
ref: 16001B
US
CARBURETOR,OUTSIDE,LH
€ 326.50
16001C
160011429
ref: 16001C
US
CARBURETOR,INSIDE,LH
€ 326.50
16001D
160011430
ref: 16001D
US
CARBURETOR,INSIDE,RH
€ 326.50
16001E
160011431
ref: 16001E
US
CARBURETOR,OUTSIDE,RH
€ 326.50
16001F
160011432
ref: 16001F
CN
CARBURETOR,LH,OUTSIDE
€ 320.00
16001G
160011433
ref: 16001G
CN
CARBURETOR,LH,INSIDE
€ 301.00
16001H
160011434
ref: 16001H
CN
CARBURETOR,RH,INSIDE
€ 443.50
16001I
160011435
ref: 16001I
CN
CARBURETOR,RH,OUTSIDE
€ 316.50
16021
160211035
ref: 16021
SCREW-THROTTLE STOP
€ 16.50
16041
160411024
ref: 16041
SHAFT-CARBURETOR,CHOK
€ 35.00
16065
160651043
ref: 16065
HOLDER-CARBURETOR,LWR
€ 62.00
16065A
160651044
ref: 16065A
HOLDER-CARBURETOR,UPP
€ 41.00
39031
390311009
ref: 39031
US
CAP-END
€ 8.50
39184
391841006
ref: 39184
BRACKET-ASSY,THROTTLE
€ 23.00
39184A
391841007
ref: 39184A
BRACKET-ASSY,IDLING A
€ 20.00
92001
920011447
ref: 92001
BOLT,ADJUSTING
€ 6.50
92005
920051035
ref: 92005
FITTING,FUEL,I-TYPE
€ 35.00
92005A
920051036
ref: 92005A
FITTING,FUEL,T-TYPE
€ 48.50
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
€ 3.50
92022
920221191
ref: 92022
WASHER,LOCK
€ 3.00
92022A
920221255
ref: 92022A
WASHER,SPRING
€ 3.50
92028
920281071
ref: 92028
BUSHING,IDLING ADJUST
€ 4.50
92033
920331066
ref: 92033
RING-SNAP,E-TYPE
€ 3.50
92037
920371184
ref: 92037
CLAMP,HOSE
€ 1.00
92037A
92037174
ref: 92037A
CLAMP,BREATHER HOSE
€ 1.50
92045
600A0400
ref: 92045
BALL-STEEL,1/8
€ 2.00
92059
920591187
ref: 92059
TUBE,7.5X12.5X250
€ 30.50
92059A
920591188
ref: 92059A
TUBE,5X9X150
€ 11.00
92081
920811260
ref: 92081
SPRING,FAST IDLE SHFT
€ 3.50
92081A
920811364
ref: 92081A
SPRING,CHOCK SHAFT
€ 3.50
92081B
920811377
ref: 92081B
SPRING,IDLING ADJUST
€ 3.00
92093
920931027
ref: 92093
OIL SEAL
€ 3.50
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
220B
220B0514
ref: 220B
ACREW-PAN HEAD,5X14
€ 2.50
220C
220B0614
ref: 220C
SCREW-PAN HEAD,6X14
€ 2.00
315
315G0800
ref: 315
NUT,8MM
€ 2.00
