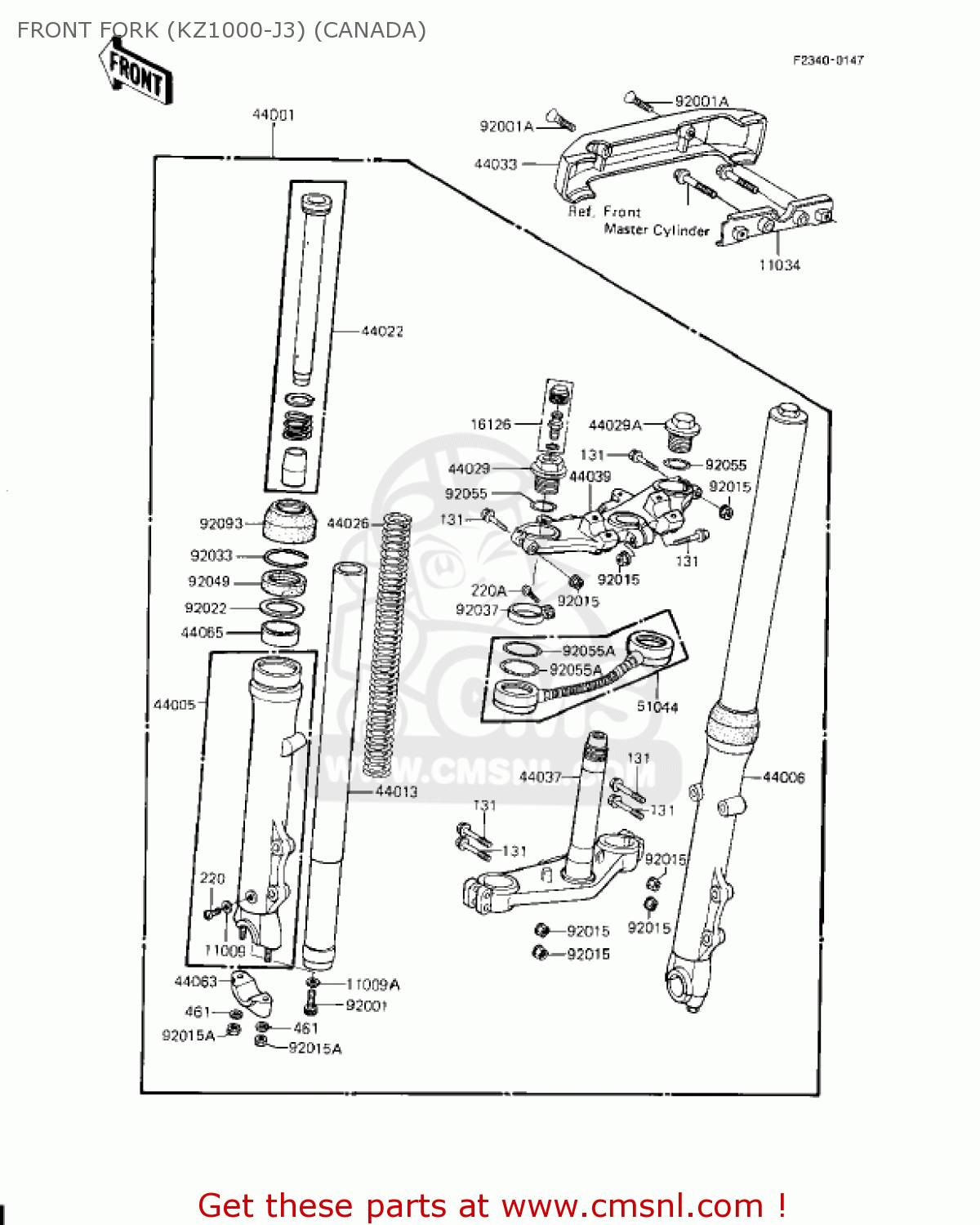

FRONT FORK (KZ1000-J3) (CANADA)

ref

part #

description

quantity

11009

44045002
ref: 11009

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

11009A

44045057
ref: 11009A

GASKET (NAS)

€ 3.00

11034

110341842
ref: 11034

BRACKET,FORK COVER

€ 13.00

16126

161261052
ref: 16126

VALVE,AIR

€ 22.00

44001

440011409
ref: 44001

FORK-FRONT (Canada)

€ 0.00

44005

440051094
ref: 44005

PIPE-LEFT FORK OUTER

€ 253.00

44006

440061094
ref: 44006

PIPE-RIGHT FORK OUTER

€ 240.00

44013

440131115
ref: 44013

PIPE-FORK INNER (Canada)

€ 0.00

44022

440221044
ref: 44022

FORK CYLINDER

€ 86.50

44026

440261193
ref: 44026

SPRING-FRONT FORK (Canada)

€ 0.00

44029

440291044
ref: 44029

SEAT-FORK SPRING,LH

€ 33.00

44029A

440291045
ref: 44029A

SEAT-FORK SPRING,RH

€ 32.50

44033

440331053
ref: 44033

COVER-FORK

€ 36.00

44037

440371072
ref: 44037

HOLDER-FORK UNDER

€ 356.00

44039

440391070
ref: 44039

HOLDER-FORK UPPER

€ 167.00

44063

440631006
ref: 44063

HOLDER-FRONT AXLE

€ 25.50

44065

440651091
ref: 44065

BUSHING-FRONT FORK,OU

€ 17.00

51044

510441028
ref: 51044

TUBE-ASSY,AIR,FORK

€ 87.00

92001

44041040
ref: 92001

BOLT-FORK CYLINDER

€ 4.50

92001A

222C0518
ref: 92001A

SCREW-CSK-RD-CROS

€ 2.50

92015

920151022
ref: 92015

NUT, 8MM

€ 0.50

92015A

920151124
ref: 92015A

NUT,LOCK,8MM

€ 3.50

92022

920221262
ref: 92022

WASHER,FORK OUTER PIP

€ 5.50

92033

920331047
ref: 92033

SNAP RING,FORK OUTER

€ 4.00

92049

920491066
ref: 92049

SEAL-OIL,FRONT FORK

€ 18.50

92055

920551051
ref: 92055

ORING,FORK TOP CAP

€ 3.50

92055A

920551369
ref: 92055A

RING-O,ROD

€ 6.50

92093

920931051
ref: 92093

SEAL,FORK

€ 24.50

131

130G0855
ref: 131

BOLT-FLANGED,8X55

€ 1.50

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
