CARBURETOR
KX85A7F KX85 2007 USA CANADA

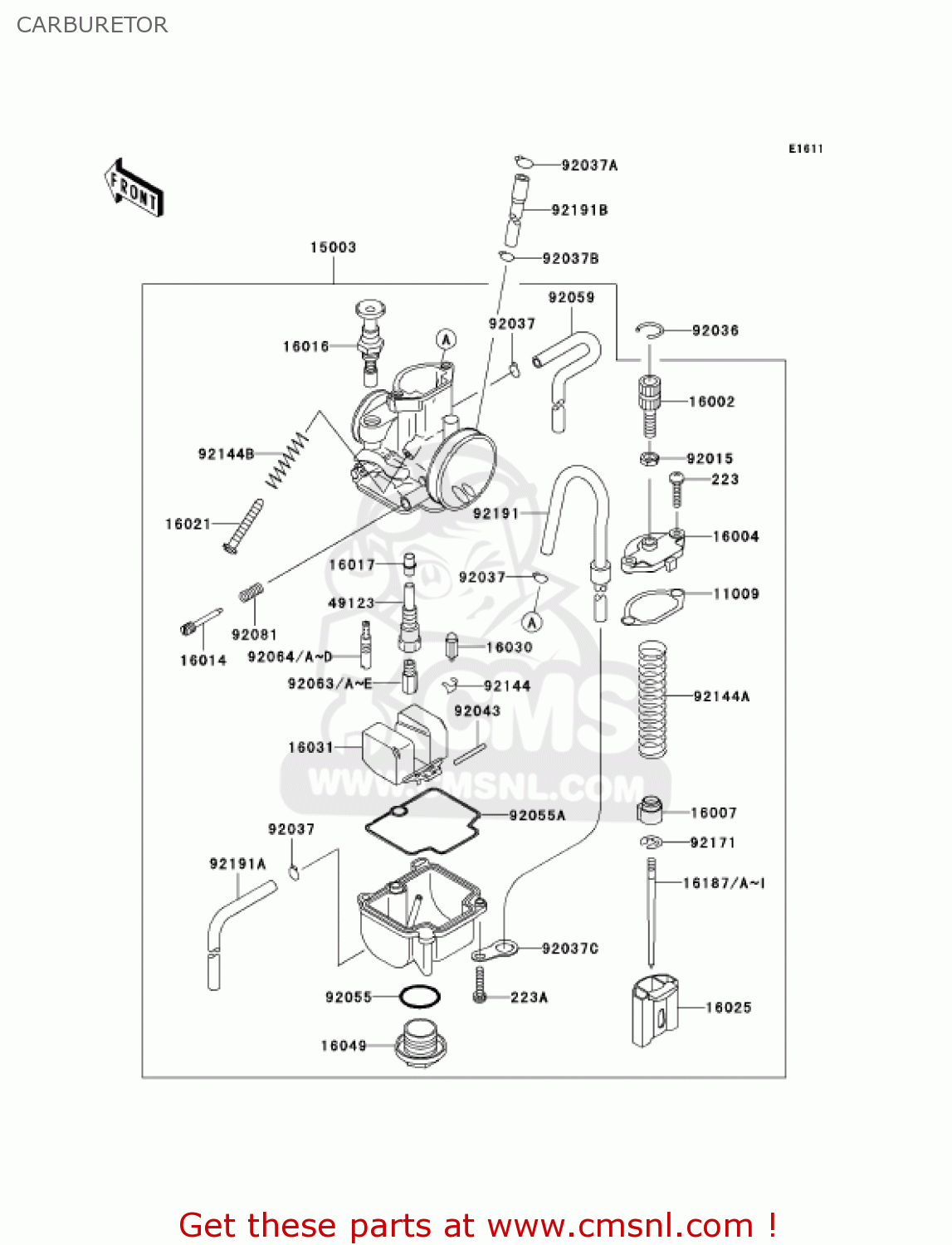

Carburetor diagram KX85A7F KX85 2007 USA CANADA
CARBURETOR KX85A7F KX85 2007 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091759
ref: 11009
GASKET,MIXING CHAMBER (NAS)
€ 8.50
15003
150031617
ref: 15003
CARBURETOR-ASSY
€ 228.50
16002
160021056
ref: 16002
ADJUSTER-CABLE
€ 16.00
16004
160041065
ref: 16004
CAP-CHAMBER,MIXING
€ 64.00
16007
160071155
ref: 16007
SEAT-SPRING,THROTTLE
€ 6.00
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016
160161075
ref: 16016
PLUNGER,STARTER
€ 29.00
16017
160171431
ref: 16017
JET-NEEDLE
€ 34.00
16021
160211161
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251220
ref: 16025
VALVE-THROTTLE,CA3.5
€ 134.00
16030
160301064
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311065
ref: 16031
FLOAT
€ 39.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16187
161871176
ref: 16187
(OPTION)
NEEDLE-JET,NAPC
€ 25.00
16187A
161871177
ref: 16187A
(OPTION)
NEEDLE-JET,NAPD
€ 25.00
16187B
161871178
ref: 16187B
NEEDLE-JET,NAPE
€ 25.00
16187C
161871179
ref: 16187C
(OPTION)
NEEDLE-JET,NAPF
€ 25.00
16187D
161871180
ref: 16187D
(OPTION)
NEEDLE-JET,NAPG
€ 25.00
16187E
161871182
ref: 16187E
(OPTION)
NEEDLE-JET,NAQC
€ 25.00
16187F
161871183
ref: 16187F
(OPTION)
NEEDLE-JET,NAQD
€ 25.00
16187G
161871184
ref: 16187G
(OPTION)
NEEDLE-JET,NAQE
€ 25.00
16187H
161871185
ref: 16187H
(OPTION)
NEEDLE-JET,NAQF
€ 25.00
16187I
161871186
ref: 16187I
(OPTION)
NEEDLE-JET,NAQG
€ 25.00
49123
491231054
ref: 49123
HOLDER-MAIN JET
€ 17.50
92015
920151574
ref: 92015
NUT,CABLE ADJUST LOCK
€ 4.50
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371396
ref: 92037
CLAMP,TUBE
€ 3.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92037C
920371969
ref: 92037C
CLAMP,HOSE
€ 5.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
223
223C0414
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223C0416
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92055A
920551389
ref: 92055A
RING-O,FLOAT CHAMBER
€ 6.50
92059
920591941
ref: 92059
TUBE,4X7X360
€ 10.00
92063
920631338
ref: 92063
(OPTION)
JET-MAIN,#135
€ 9.50
92063A
920631359
ref: 92063A
(OPTION)
JET-MAIN,#138
€ 10.50
92063B
920631360
ref: 92063B
JET-MAIN,#140
€ 10.00
92063C
920631361
ref: 92063C
(OPTION)
JET-MAIN,#142
€ 9.50
92063D
920631362
ref: 92063D
(OPTION)
JET-MAIN,#145
€ 9.50
92063E
920631364
ref: 92063E
(OPTION)
JET-MAIN,#150
€ 9.50
92064
920641140
ref: 92064
(OPTION)
JET-PILOT,#40
€ 11.50
92064A
920641141
ref: 92064A
(OPTION)
JET-PILOT,#42
€ 11.50
92064B
920641142
ref: 92064B
JET-PILOT
€ 11.50
92064C
920641143
ref: 92064C
(OPTION)
JET-PILOT,#48
€ 11.50
92064D
920641144
ref: 92064D
(OPTION)
JET-PILOT
€ 11.00
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92144
921441178
ref: 92144
SPRING,FLOAT
€ 5.50
92144A
921441566
ref: 92144A
SPRING,THROTTLE VALVE
€ 11.00
92144B
921441782
ref: 92144B
SPRING,THROTTLE STOP
€ 11.00
92171
921711323
ref: 92171
CLAMP
€ 9.00
92191
921911243
ref: 92191
TUBE,4X7X560
€ 7.00
92191A
921911591
ref: 92191A
TUBE,4X7X420
€ 12.50
92191B
921911610
ref: 92191B
TUBE
€ 5.00
