CYLINDER HEAD/CYLINDER
KX80-Z1 KX80II 1998 EUROPE

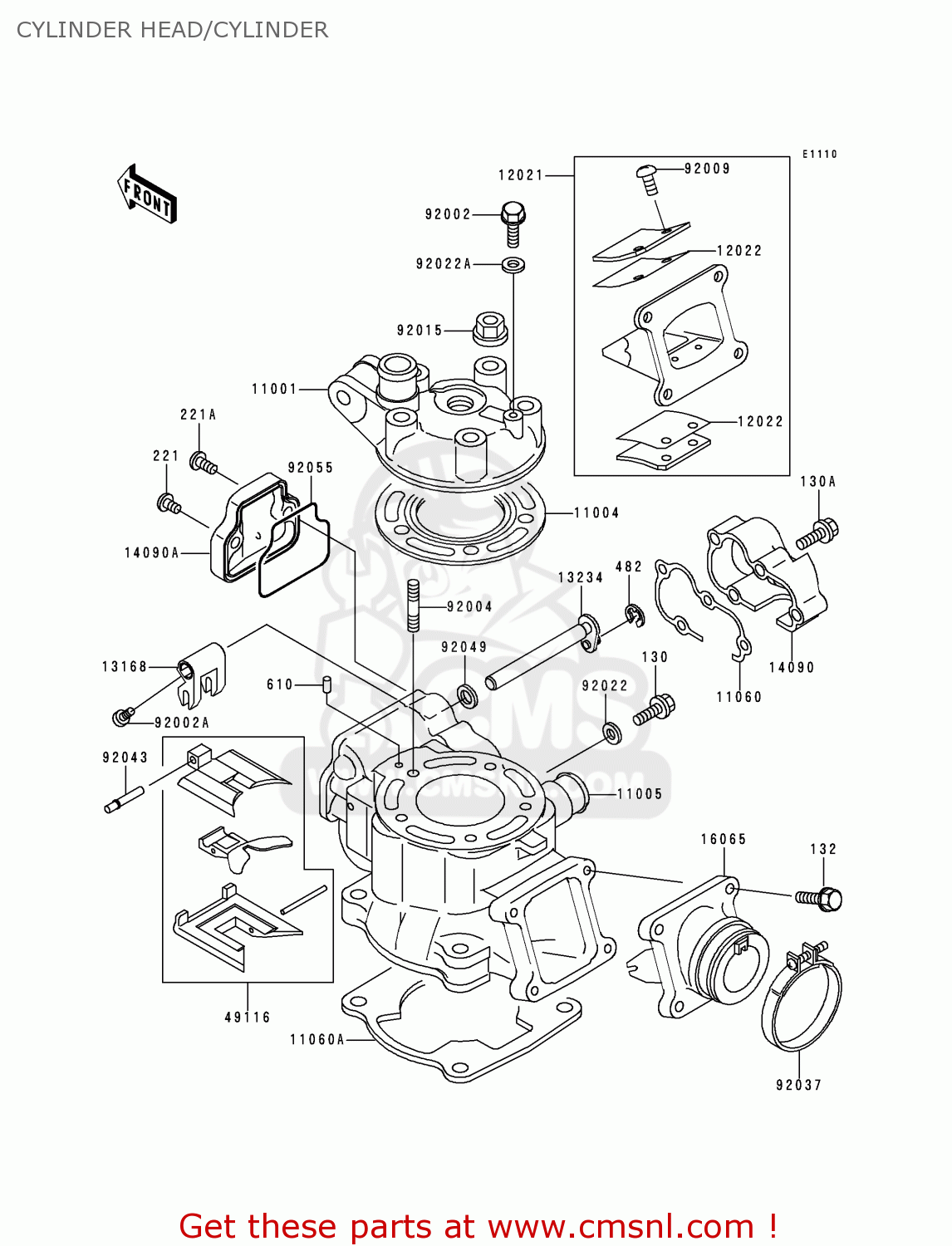

Cylinder head/cylinder diagram KX80-Z1 KX80II 1998 EUROPE
CYLINDER HEAD/CYLINDER KX80-Z1 KX80II 1998 EUROPE
×
prices are in EUR
ref
part #
description
quantity
130
130B0608
ref: 130
BOLT,FLANGED,6X8
€ 0.50
130A
130G0525
ref: 130A
BOLT-FLANGED
€ 0.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
221
221B0616
ref: 221
SCREW-CNTSNK HD,6X16
€ 0.50
221A
221B0620
ref: 221A
SCREW-CNTSNK HD,6X20
€ 0.50
482
482J5000
ref: 482
CIRCLIP-TYPE-E,5MM
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
11001
110011479
ref: 11001
HEAD-CYLINDER
€ 82.50
11004
110041333
ref: 11004
GASKET-HEAD (NAS)
€ 22.50
11005
110051845
ref: 11005
CYLINDER-ENGINE
€ 564.50
11060
110601778
ref: 11060
GASKET (NAS)
€ 3.50
11060A
110601779
ref: 11060A
GASKET,CYLINDER BASE (NAS)
€ 4.50
12021
120211114
ref: 12021
VALVE-ASSY-REED
€ 82.00
12022
120221054
ref: 12022
VALVE-REED,T=0.42
€ 13.00
13168
131681499
ref: 13168
LEVER,MAIN VALVE
€ 74.50
13234
132341105
ref: 13234
SHAFT-COMP
€ 24.00
14090
140901811
ref: 14090
COVER
€ 19.50
14090A
140901812
ref: 14090A
COVER
€ 15.50
16065
160651224
ref: 16065
HOLDER-CARBURETOR
€ 57.00
49116
491161162
ref: 49116
VALVE-ASSY
€ 112.00
92002
920021222
ref: 92002
BOLT,6X10
€ 5.50
92002A
920021403
ref: 92002A
BOLT,SOCKET,4X8
€ 2.00
92004
920041253
ref: 92004
STUD,8X32
€ 3.50
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92037
920371843
ref: 92037
CLAMP
€ 5.50
92043
920431470
ref: 92043
PIN,MAIN VALVE
€ 3.00
92049
920491238
ref: 92049
SEAL-OIL,SD088144
€ 8.50
92055
920551566
ref: 92055
RING-O
€ 9.50
