CLUTCH
KX80-X2 KX80II 1999 EUROPE AS

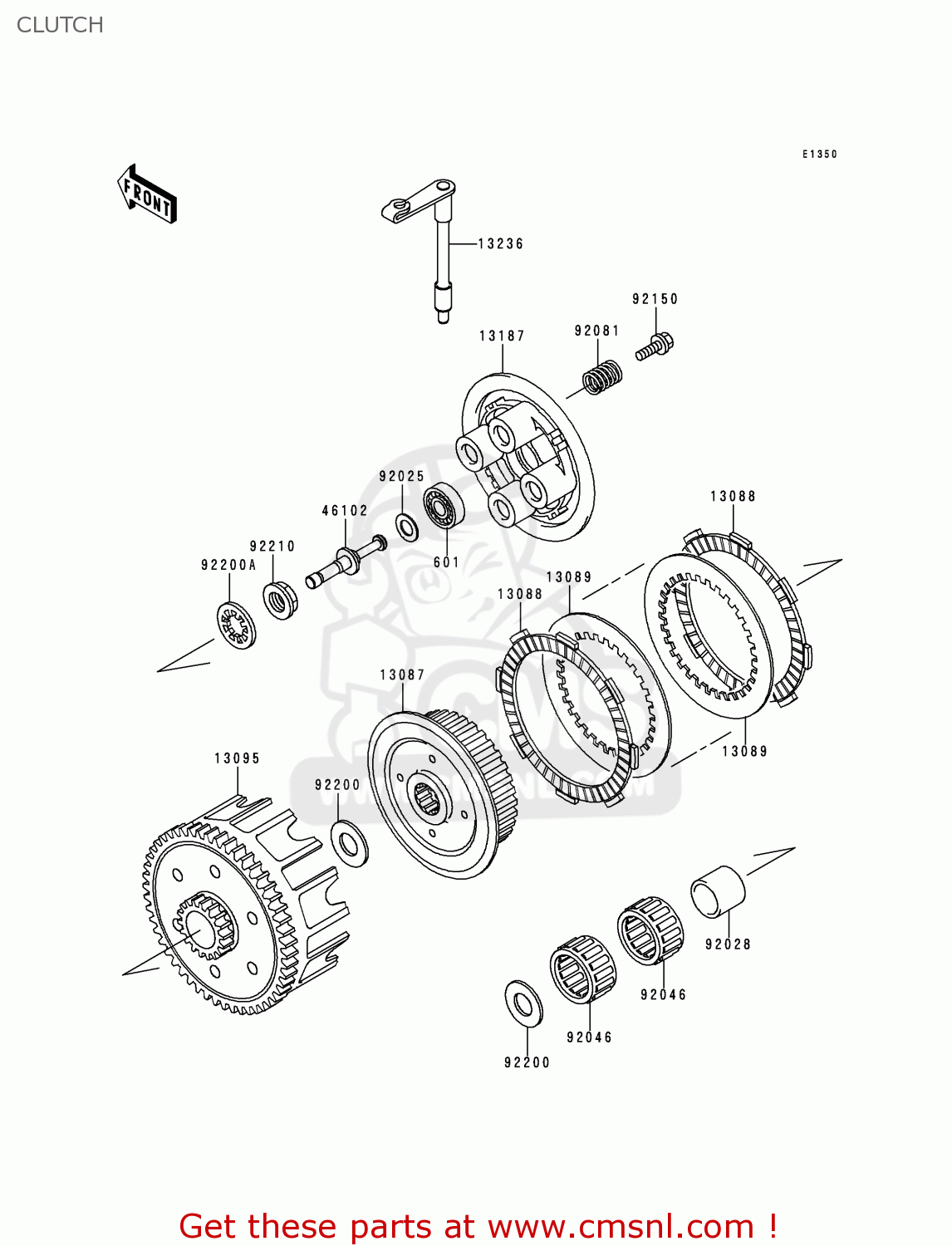

Clutch diagram KX80-X2 KX80II 1999 EUROPE AS
CLUTCH KX80-X2 KX80II 1999 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
601
601A6001
ref: 601
BEARING-BALL
€ 9.00
13087
130871170
ref: 13087
HUB-CLUTCH
€ 48.00
13088
130881016
ref: 13088
PLATE-FRICTION (NAS)
€ 10.00
13089
130891120
ref: 13089
PLATE-CLUTCH (NAS)
€ 5.00
13095
130951354
ref: 13095
HOUSING-COMP-CLUTCH
€ 224.50
13187
131871013
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 32.00
13236
132361298
ref: 13236
LEVER-COMP,RELEASE
€ 20.00
46102
461021409
ref: 46102
ROD,CLUTCH RELEASE
€ 14.00
92025
920251780
ref: 92025
SHIM
€ 1.50
92028
920281811
ref: 92028
BUSHING,20X25X21.1
€ 11.50
92046
920461254
ref: 92046
BEARING-NEEDLE,KT2529
€ 11.50
92081
920811492
ref: 92081
SPRING,CLUTCH
€ 5.00
92150
921501715
ref: 92150
BOLT
€ 2.00
92200
922001351
ref: 92200
WASHER,20.3X33X2.0
€ 1.50
92200A
922001352
ref: 92200A
WASHER
€ 2.50
92210
922101113
ref: 92210
NUT,16MM
€ 11.50
