FRONT FORK(KX80-V7)
KX80-V7 1997 EUROPE

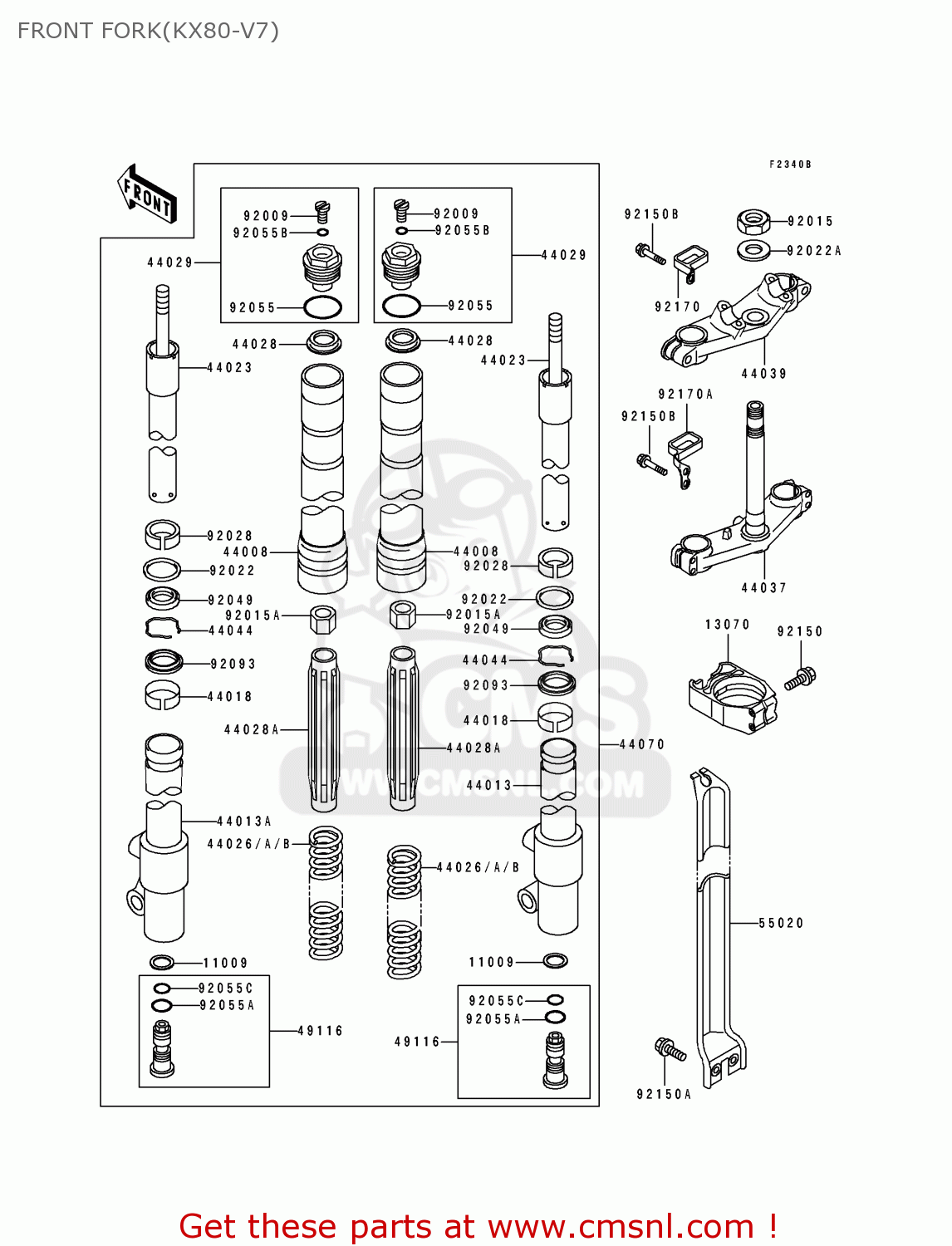

Front fork(kx80-v7) diagram KX80-V7 1997 EUROPE
FRONT FORK(KX80-V7) KX80-V7 1997 EUROPE
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
13070
130701253RZ
ref: 13070
GUIDE,FORK,WHITE
€ 17.00
44008
440081019
ref: 44008
PIPE-FORK OUTER
€ 310.00
44013
440131362
ref: 44013
PIPE-FORK INNER,RH
€ 176.50
44013A
440131434
ref: 44013A
PIPE-FORK INNER,LH
€ 198.00
44018
440181058
ref: 44018
PISTON-FORK
€ 14.50
44023
440231089
ref: 44023
CYLINDER-COMP-FORK
€ 199.50
44026
440261633
ref: 44026
SPRING-FRONT FORK
€ 44.50
44026A
440261634
ref: 44026A
SPRING-FRONT FORK
€ 44.50
44026B
440261635
ref: 44026B
SPRING-FRONT FORK
€ 44.50
44028
440281085
ref: 44028
GUIDE-FORK SPRING
€ 34.50
44028A
440281090
ref: 44028A
GUIDE-FORK SPRING
€ 30.00
44029
440291152
ref: 44029
SEAT-FORK SPRING
€ 50.50
44037
440371294
ref: 44037
HOLDER-FORK UNDER
€ 236.50
44039
440391221
ref: 44039
HOLDER-FORK UPPER
€ 149.00
44044
44044015
ref: 44044
CIRCLIP
€ 9.50
44070
440701548
ref: 44070
DAMPER-ASSY,FORK
€ 1,749.50
49116
491161149
ref: 49116
VALVE ASSY FORK
€ 105.00
55020
550201405RZ
ref: 55020
GUARD,FORK,WHITE
€ 16.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92015A
920151839
ref: 92015A
NUT
€ 13.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281656
ref: 92028
BUSHING
€ 11.00
92049
920491394
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.00
92055
920551123
ref: 92055
RING-O
€ 4.00
92055A
920551156
ref: 92055A
RING-O,REARSHOCK
€ 1.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551502
ref: 92055C
RING-O,FORK VALVE
€ 5.00
92093
920931426
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.50
92150
921501270
ref: 92150
BOLT,5X35
€ 3.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501499
ref: 92150B
BOLT
€ 2.50
92170
921701264
ref: 92170
CLAMP,CABLE
€ 11.50
92170A
921701265
ref: 92170A
CLAMP,CABLE
€ 12.00
