FRAME

KX80-V5 1995 EUROPE

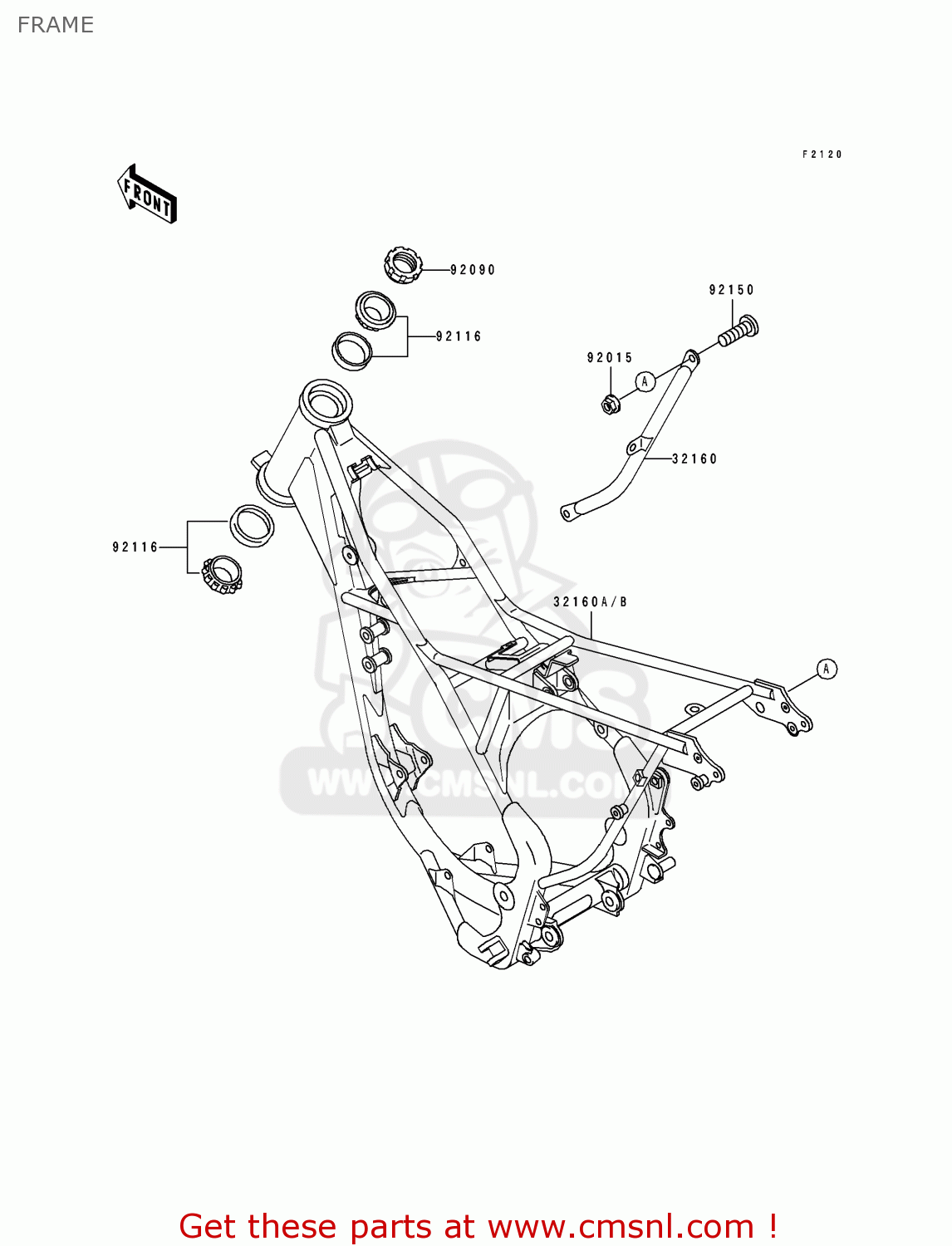

Frame diagram KX80-V5 1995 EUROPE

FRAME KX80-V5 1995 EUROPE

FRAME KX80-V5 1995 EUROPE

prices are in EUR

ref

part #

description

quantity

32160

321601141CC
ref: 32160

FRAME-COMP,SUB,L.GREE

€ 60.00

32160A

321601212CC
ref: 32160A

FRAME-COMP,MAIN,L.GRE

€ 585.50

92015

920151502
ref: 92015

NUT,FLANGED,10MM

€ 7.00

92090

92090024
ref: 92090

NUT,STEERING STEM

€ 14.50

92116

921161065
ref: 92116

BEARING-ROLLER,H1-CAP

€ 48.50

92150

921501221
ref: 92150

BOLT,SOCKET,10X23

€ 3.50
