Genuine KX Kawasaki Parts delivered quickly!


REAR HUB

KX80-T6 1996 EUROPE AS

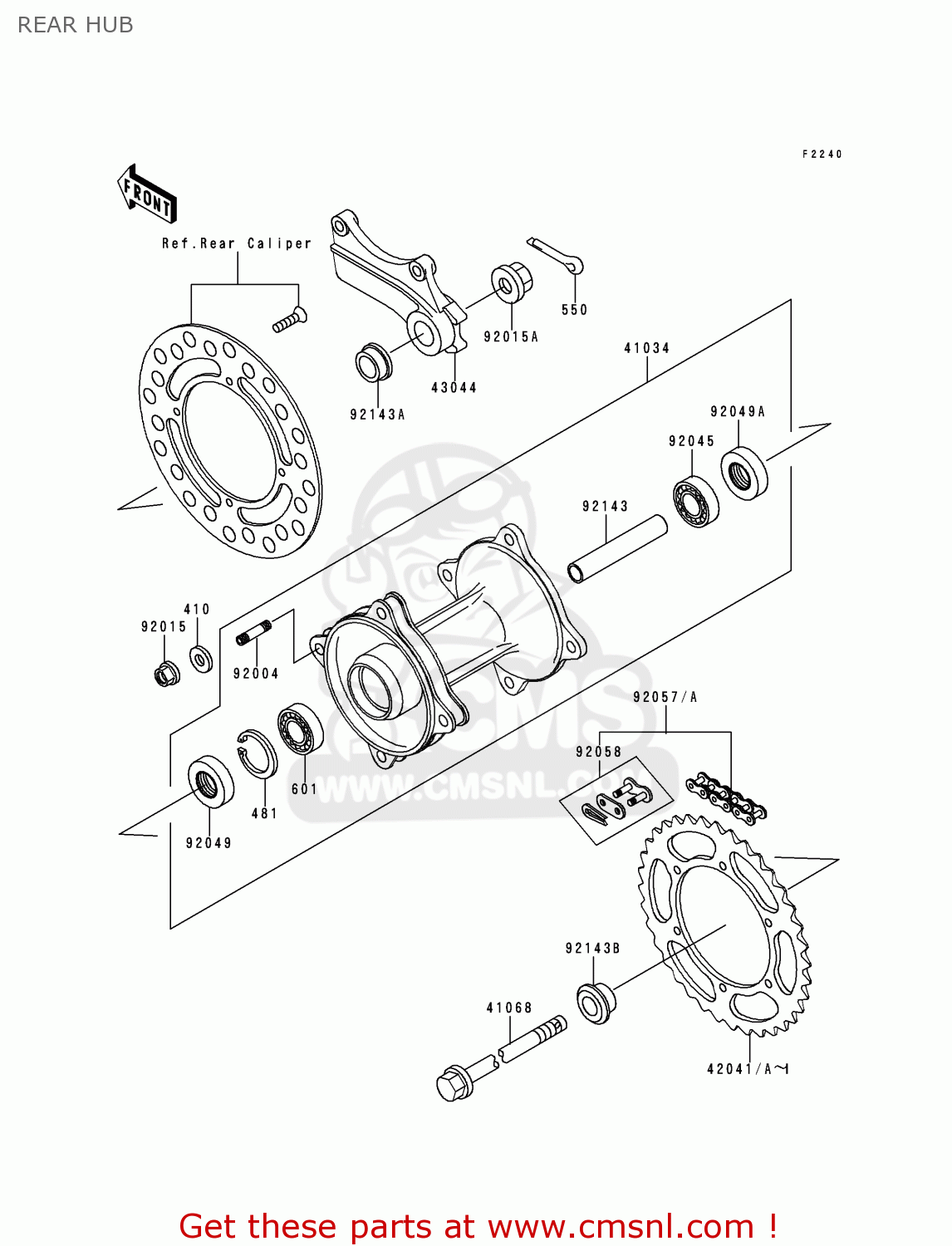

Rear hub diagram KX80-T6 1996 EUROPE AS

REAR HUB KX80-T6 1996 EUROPE AS
REAR HUB KX80-T6 1996 EUROPE AS
REAR HUB KX80-T6 1996 EUROPE AS
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
481J3700
€ 1.50
550
550D2520
ref: 550
PIN-COTTER,2.5X20
550D2520
€ 1.00
601
601B6301UU
ref: 601
BEARING-BALL,#6301UUC
601B6301UU
€ 24.00
41034
410341194
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 237.50
41068
410681302
ref: 41068
AXLE,RR
410681302
€ 26.00
42041A
420411223
ref: 42041A
SPROCKET-HUB,54T
420411223
€ 28.50
42041F
420411245
ref: 42041F
SPROCKET-HUB,52T
420411245
€ 35.00
42041G
420411246
ref: 42041G
SPROCKET-HUB,53T
420411246
€ 35.00
42041H
420411247
ref: 42041H
SPROCKET-HUB,55T
420411247
€ 31.50
42041I
420411248
ref: 42041I
SPROCKET-HUB
420411248
€ 29.00
43044
430441073
ref: 43044
HOLDER-COMP-CALIPER
430441073
€ 73.50
92004
920041183
ref: 92004
STUD
920041183
€ 3.50
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92015A
920151433
ref: 92015A
NUT,12MM
920151433
€ 6.00
92045
920451062
ref: 92045
BEARING-BALL,TMB201LL
920451062
€ 24.50
92049
920491096
ref: 92049
SEAL-OIL,DD20377
920491096
€ 11.00
92049A
920491290
ref: 92049A
SEAL-OIL,DC17323.5
920491290
€ 6.00
92057A
920571315
ref: 92057A
CHAIN,DRIVE,DID420DSX
920571315
€ 67.00
92058
920581066
ref: 92058
JOINT-CHAIN
€ 7.00
92143
921431282
ref: 92143
COLLAR,12.2X17.3X107.
921431282
€ 14.00
92143A
921431284
ref: 92143A
COLLAR,REAR AXLE,L=12
921431284
€ 16.00
92143B
921431286
ref: 92143B
COLLAR,REAR AXLE,L=14
921431286
€ 10.00
