GENERATOR

KX80-S2 1992 EUROPE AS

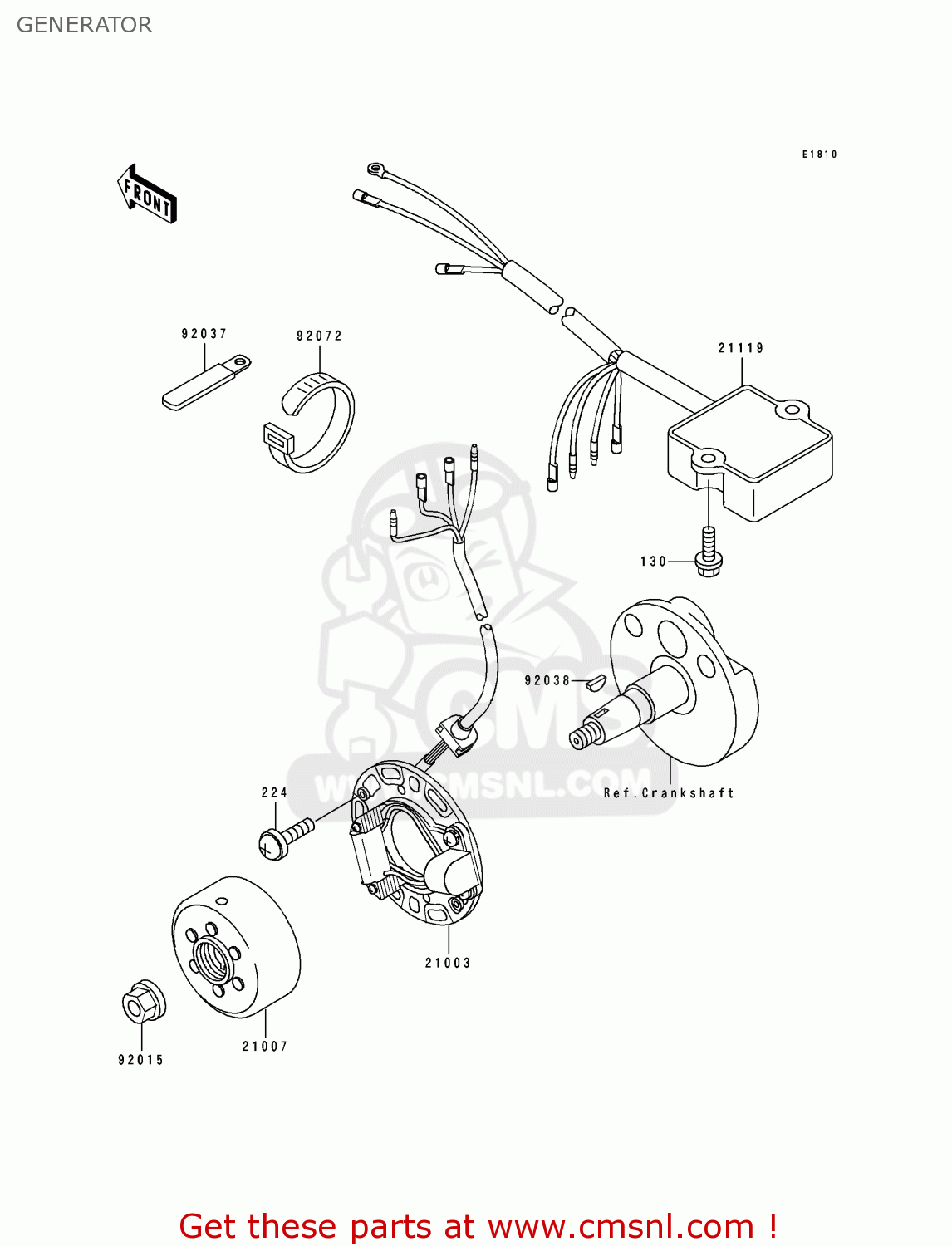

Generator diagram KX80-S2 1992 EUROPE AS

GENERATOR KX80-S2 1992 EUROPE AS
GENERATOR KX80-S2 1992 EUROPE AS
GENERATOR KX80-S2 1992 EUROPE AS
prices are in EUR
ref
part #
description
quantity
130
130G0612
ref: 130
BOLT,FLANGE,6X12
130G0612
€ 0.50
224
224B0614
ref: 224
SCREW-PAN-WP-CROS
€ 4.00
21003
210031241
ref: 21003
STATOR
€ 219.50
21007
210071239
ref: 21007
ROTOR,MAGNETO
210071239
€ 340.00
21119
211191274
ref: 21119
IGNITER
€ 357.00
92015
92015077
ref: 92015
NUT, 10MM
€ 3.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92038
92038001
ref: 92038
WOODRUFF KEY
92038001
€ 3.00
92072
92072030
ref: 92072
BAND,SHORT
92072030
€ 3.00
