STAND(S)

KX80-R7 1997 EUROPE AS

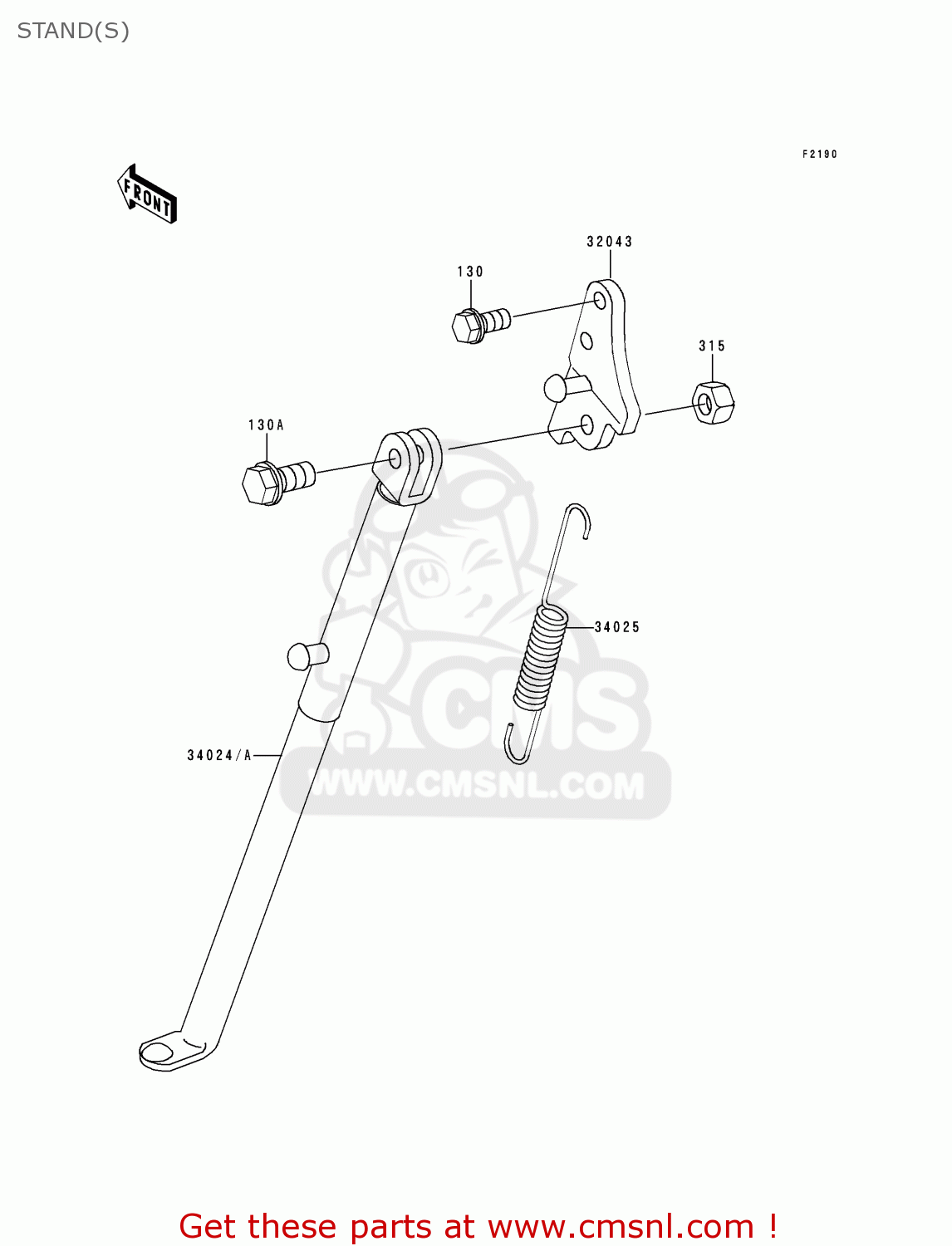

Stand(s) diagram KX80-R7 1997 EUROPE AS

STAND(S) KX80-R7 1997 EUROPE AS

STAND(S) KX80-R7 1997 EUROPE AS

prices are in EUR

ref

part #

description

quantity

130

130G0812
ref: 130

BOLT-FLANGED

€ 0.50

130A

130V1030
ref: 130A

BOLT-FLANGED,10X30

€ 3.00

315

315C1000
ref: 315

315C1000

32043

320431318CE
ref: 32043

BRACKET-STAND,SIDE,SI

€ 19.50

34024

340241241CE
ref: 34024

STAND-SIDE,SILVER NO.

€ 29.50

34025

34025005
ref: 34025

SPRING-SIDE STAND

€ 5.00
