FRONT FORK
KX80-R6 1996 USA CANADA

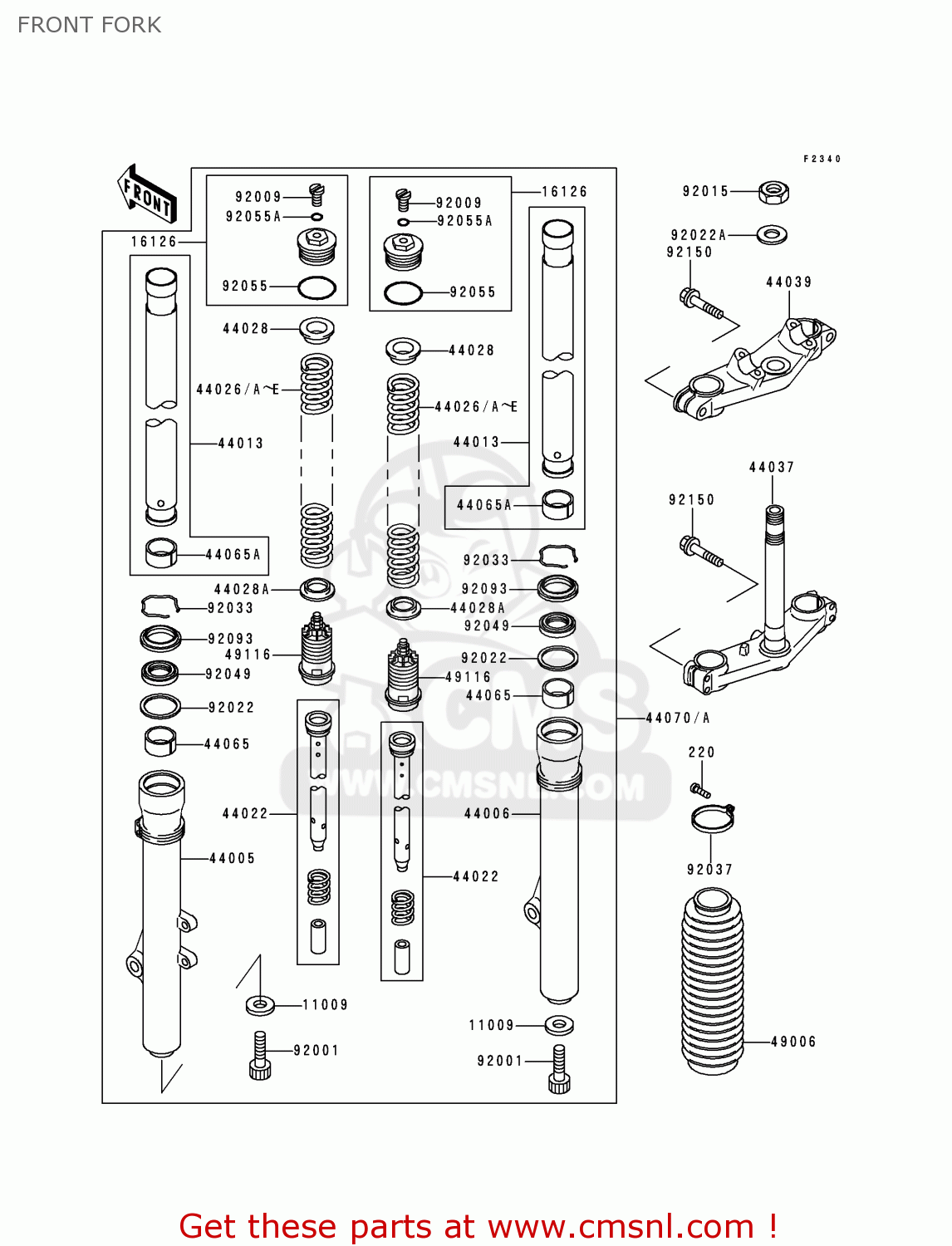

Front fork diagram KX80-R6 1996 USA CANADA
FRONT FORK KX80-R6 1996 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220C0416
ref: 220
SCREW-PAN-CROS
€ 1.00
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
16126
161261265
ref: 16126
VALVE,AIR
€ 36.00
44005
440051314
ref: 44005
PIPE-LEFT FORK OUTER
€ 197.50
44006
440061311
ref: 44006
PIPE-RIGHT FORK OUTER
€ 176.00
44013
440131360
ref: 44013
PIPE-FORK INNER
€ 128.00
44022
440221271
ref: 44022
CYLINDER-FORK
€ 68.00
44026
440261506
ref: 44026
SPRING-FRONT FORK,K=0
€ 39.50
44026A
440261516
ref: 44026A
SPRING-FRONT FORK,K=0
€ 38.00
44026B
440261517
ref: 44026B
SPRING-FRONT FORK,K=0
€ 38.00
44028
440281059
ref: 44028
GUIDE-FORK SPRING
€ 5.50
44028A
440281068
ref: 44028A
GUIDE-FORK SPRING
€ 5.50
44037
440371293
ref: 44037
HOLDER-FORK UNDER
€ 230.00
44039
440391220
ref: 44039
HOLDER-FORK UPPER
€ 124.00
44065
440651106
ref: 44065
BUSHING-FRONT FORK
€ 13.50
44065A
440651107
ref: 44065A
BUSHING-FRONT FORK,IN
€ 12.00
44070
440705053
ref: 44070
DAMPER-ASSY,FORK
€ 1,015.00
49006
490061273VW
ref: 49006
BOOT,FORK,VIOLET
€ 29.50
49116
491161098
ref: 49116
VALVE-ASSY,FORK
€ 92.00
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
€ 4.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92022
920221242
ref: 92022
WASHER
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371321
ref: 92037
CLAMP,BOOT,BLACK
€ 6.50
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92055A
920551441
ref: 92055A
RING-O
€ 2.50
92093
920931166
ref: 92093
SEAL,FRONT FORK
€ 12.50
92150
921501499
ref: 92150
BOLT
€ 2.50
