FRONT HUB

KX80-R5 1995 EUROPE AS

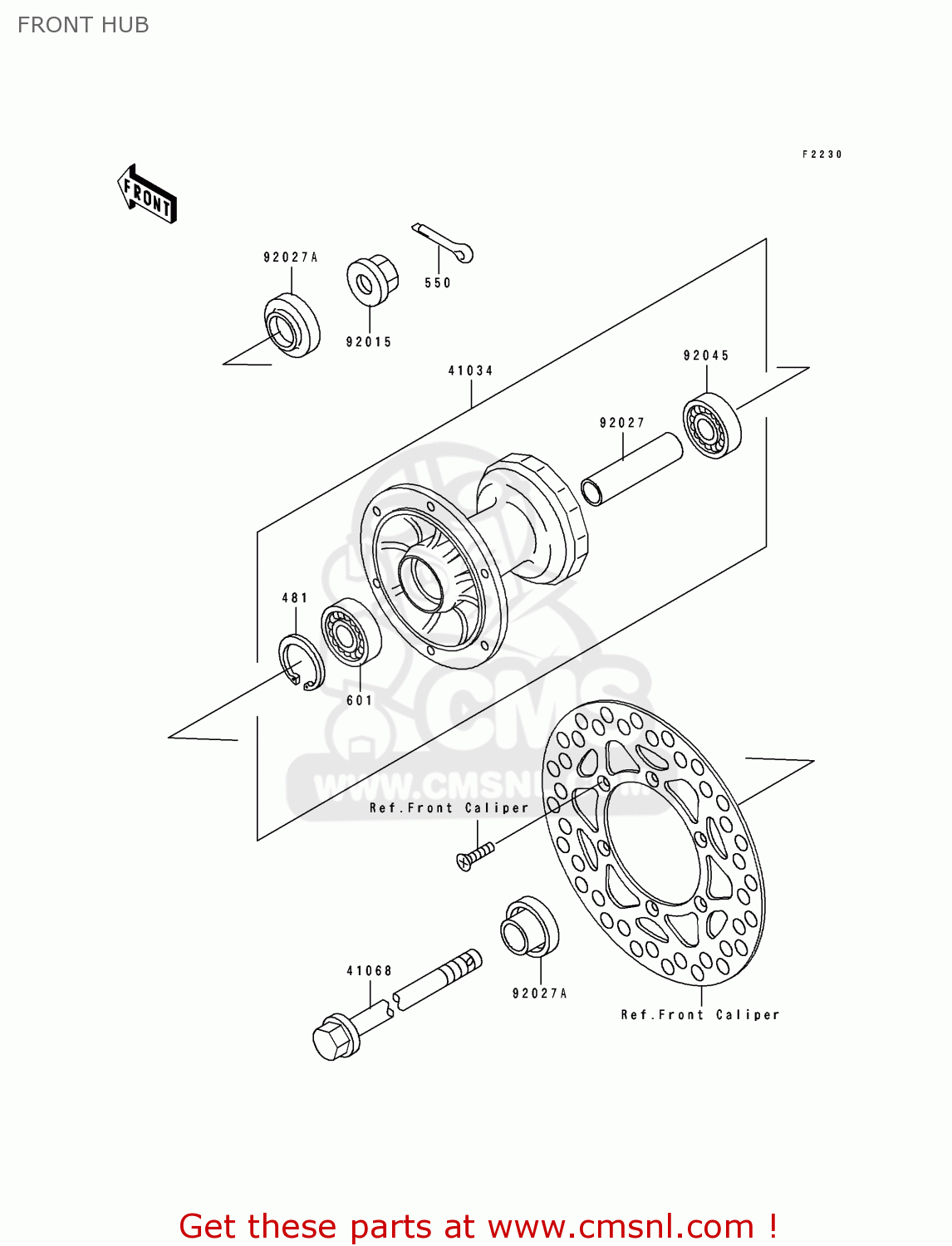

Front hub diagram KX80-R5 1995 EUROPE AS

FRONT HUB KX80-R5 1995 EUROPE AS

FRONT HUB KX80-R5 1995 EUROPE AS

prices are in EUR

ref

part #

description

quantity

481

481J3700
ref: 481

CIRCLIP-TYPE-C,37MM

€ 1.50

550

550D2520
ref: 550

PIN-COTTER,2.5X20

€ 1.00

601

601B6301UU
ref: 601

BEARING-BALL,#6301UUC

€ 24.00

41034

410341166
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 183.00

41068

410681333
ref: 41068

AXLE,RR

€ 22.00

92015

920151433
ref: 92015

NUT,12MM

€ 6.00

92027

920271925
ref: 92027

COLLAR,L=81

€ 13.00

92027A

920271926
ref: 92027A

COLLAR,L=6

€ 8.50

92045

920451062
ref: 92045

BEARING-BALL,TMB201LL

€ 24.50
