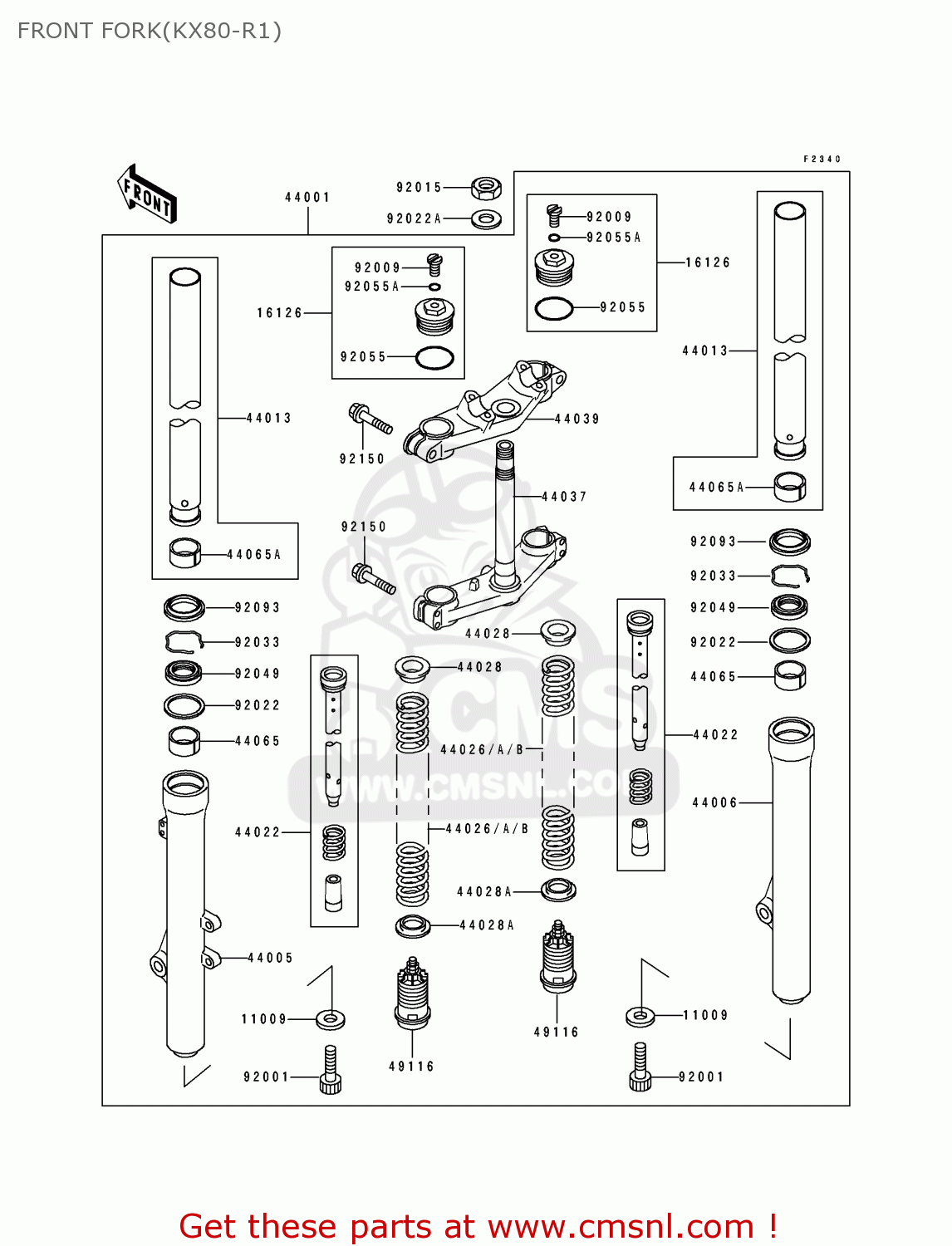

FRONT FORK(KX80-R1)

ref

part #

description

quantity

11009

44045057
ref: 11009

GASKET (NAS)

€ 3.00

16126

161261230
ref: 16126

VALVE,AIR

€ 35.00

44001

440011776
ref: 44001

FORK-FRONT

€ 617.00

44005

440051302
ref: 44005

PIPE-LEFT FORK OUTER

€ 223.00

44006

440061298
ref: 44006

PIPE-RIGHT FORK OUTER

€ 166.50

44013

440131337
ref: 44013

PIPE-FORK INNER

€ 121.00

44022

440221255
ref: 44022

CYLINDER-FORK

€ 67.50

44026

440261479
ref: 44026

SPRING-FRONT FORK

€ 30.00

44026A

440261482
ref: 44026A

SPRING-FRONT FORK,K=0

€ 27.00

44026B

440261483
ref: 44026B

SPRING-FRONT FORK,K=0

€ 22.00

44028

440281004
ref: 44028

GUIDE-FORK SPRING

€ 7.50

44028A

440281068
ref: 44028A

GUIDE-FORK SPRING

€ 5.50

44037

440371225
ref: 44037

HOLDER-FORK UNDER

€ 138.50

44039

440391183
ref: 44039

HOLDER-FORK UPPER

€ 66.00

44065

440651097
ref: 44065

BUSHING-FRONT FORK

€ 9.50

44065A

440651098
ref: 44065A

BUSHING-FRONT FORK,IN

€ 12.50

49116

491161091
ref: 49116

VALVE-ASSY,FORK

€ 90.50

92001

44041040
ref: 92001

BOLT-FORK CYLINDER

€ 4.50

92009

920091568
ref: 92009

SCREW

€ 4.50

92015

920151653
ref: 92015

NUT,STEERING STEM,22M

€ 11.50

92022

920221801
ref: 92022

WASHER,FORK

€ 4.00

92022A

920221873
ref: 92022A

WASHER

€ 5.00

92033

44044015
ref: 92033

CIRCLIP

€ 9.50

92049

920491350
ref: 92049

SEAL-OIL,FORK

€ 10.00

92055

920551318
ref: 92055

RING-O

€ 3.00

92055A

920551441
ref: 92055A

RING-O

€ 2.50

92093

920931304
ref: 92093

SEAL,FORK OUTER TUBE

€ 15.00

92150

921501499
ref: 92150

BOLT

€ 2.50
